7" All in One PC with Wince 6.0 for Industry
7'所有在一个PC与Wince 6.0行业
议价
加入意向| 型号。 | PC-700 |
| 处理器类型 | 三星 |
| 类型 | 嵌入式系统 |
| 规范 | ce，fcc，rohs |
| 应用领域 | 工业控制 |
| 证明 | ce，rohs，fcc |
| 应用 | 酒店，医院和商店的服务终端 |
| 起源 | 中国 |
7“具有WinCE 6.0nCE 6.0的工业控制设备
应用：酒店，医院和商店的服务终端，工业机器维护监控，视频会议系统和晚餐订购系统等。 etc.
应用：酒店，医院和商店的服务终端，工业机器维护监控，视频会议系统和晚餐订购系统等。 etc.
规范： | |||
| 描述 | 7“工业嵌入式触摸式计算机，带有Win CE 6.0 OS6.0操作系统 | ||
| 型号。 | PC-700 | ||
| 中央处理器 | 三星s3c 6410 | ||
| 667MHz的 | |||
| 记忆 | ddrii sdram 256mb（最大512mb） | ||
| Nand Flash | 2gb（最大4gb） | ||
| 液晶屏 | 分辨率：800x480 | ||
| 点间距：0.0642（W）×0.1790（H）mm0（H）mm0(H) mm | |||
| 亮度：400 cd /m²²sup2;² | |||
| 对比：500：1 | |||
| 视角：70/70（L / R）50/70（U / D） | |||
| 操作系统 | 窗口6.0 | ||
| 接口及特点：URES：ures: | usb host1.1 | 3 | |
| MINI USB接口 | 1 | ||
| RS232端口 | 2 | ||
| RS485端口 | 1 | ||
| 3.5mm耳机插孔音频输出 | 1 | ||
| 无线上网 | 内建的 | ||
| SD卡插槽 | 1（最多支持32GB） | ||
| 输入电压： | DC12V范围：9V-24V | ||
| 最大消耗量： | ≤5w; 5 w;5 W | ||
| 工作温度： | 0〜50c 0〜85％rh | ||
| 商店温度： | -10〜60c 0〜75％rh | ||
| 单位面积： | 200L×150W×50H（毫米）倍; 50H（毫米）times;50H(mm) | ||
| 单位重量： | 400g | ||
| 特征： | |||
| 支持Visual Basic / EVC / Visual Studio，网框3.5 | |||
| 支持键盘和鼠标U盘 | |||
| 附加：预留WIFI，蓝牙，锂电路接口设计PCBA（实现功能） | |||
| 应用： | |||
| 支持USB读卡器，用于读写磁条卡信息，如银行卡等。 | |||
| 工业控制系统 | |||
| 汽车媒体中心，远程信息处理和导航 | |||
| 超移动PC | |||
| 个人媒体播放器 | |||
| 家庭自动化和媒体中心 | |||
| 订单管理系统 | |||
| 电子教育装置 | |||
| 广告数字签名 | |||
| 标准配件： | 可选附件： | 包装细节： | |
| 安装金属夹4个 | 锂电池 | 箱尺寸 | 24.6x24.4x8.7CM |
| 迷你USB电缆 | 每盒G.W. | 3公斤 | |
| 驱动盘 | 每纸箱 | 10件 | |
| 触摸笔 | 纸箱尺寸 | 50x44.5x27.4CM | |
| 操作手册 | N.W. | 14KGS /箱 | |
| G.W. | 16kgs /箱 | ||
| Model NO. | PC-700 |
| Processor Type | Samsung |
| Type | Embedded Systems |
| Specification | CE, FCC, RoHs |
| Application Field | Industrial Control |
| Certification | CE, RoHS, FCC |
| Application | Service Terminals in Hotel, Hospital and Stores |
| Origin | China |

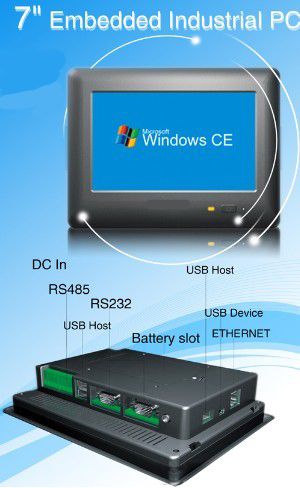

7' Industrial Control Device with WinCE 6.0nCE 6.0
Application: Service terminals in hotel, hospital and stores, industrial machines maintains monitoring, Video conferencing systems & Dinner ordering systems, etc. etc. etc.
Application: Service terminals in hotel, hospital and stores, industrial machines maintains monitoring, Video conferencing systems & Dinner ordering systems, etc. etc. etc.
Specification: | |||
| Description | 7' Industrial Embedded Touch PC w/ Win CE 6.0 OS6.0 OS | ||
| Model No. | PC-700 | ||
| CPU | Samsung s3c 6410 | ||
| 667MHZ | |||
| Memory | DDRII SDRAM 256MB (MAX to 512MB) | ||
| Nand Flash | 2GB (MAX to 4GB) | ||
| LCD Screen | Resolution: 800x480 | ||
| Dot pitch: 0.0642(W) × 0.1790(H) mm0(H) mm0(H) mm | |||
| Brightness: 400 cd/m²²sup2;² | |||
| Contrast: 500:1 | |||
| View Angle: 70/70 (L/R) 50/70(U/D) | |||
| Operation System | WINDOW CE 6.0 | ||
| Interface&Features:ures:ures: | USB HOST1.1 | 3 | |
| MINI USB interface | 1 | ||
| RS232 port | 2 | ||
| RS485 port | 1 | ||
| 3.5mm Earphone Jack Audio Output | 1 | ||
| WIFI | built-in | ||
| SD Card slot | 1(support max to 32GB) | ||
| Input Voltage: | DC12V Range from:9V-24V | ||
| Max Consumption: | ≤5 W;5 W;5 W | ||
| Work Temperature: | 0~ 50C 0~85% RH | ||
| Store Temperature: | -10~60C 0~75% RH | ||
| Unit Size: | 200L×150W×50H(mm)times;50H(mm)times;50H(mm) | ||
| Unit Weight: | 400g | ||
| Features: | |||
| Support Visual Basic/EVC/Visual Studio,net framework 3.5 | |||
| Support keyboard and mouse U disk | |||
| Addition:Reserved WIFI, Bluetooth, lithium circuit interface when designing PCBA (to achieve function) | |||
| Applications: | |||
| Support USB Card Reader,Used to read and write magnetic stripe card information,Such as bank cards, etc. | |||
| Industrial control system | |||
| Automotive media center, telematics and navigation | |||
| Ultra mobile PC | |||
| Personal Media Player | |||
| Home automation and media center | |||
| Order management system | |||
| E-education device | |||
| Advertising digital signature | |||
| Standard Accessory: | Optional Accessory: | Packing Details: | |
| Install Metal Clips 4pcs | Li-Battery | Box size | 24.6x24.4x8.7CM |
| Mini USB Cable | Per box G.W. | 3kgs | |
| Drive Disc | Per Carton | 10pcs | |
| Touch pen | Carton Size | 50x44.5x27.4CM | |
| Operation manual | N.W. | 14kgs/carton | |
| G.W. | 16kgs/carton | ||
