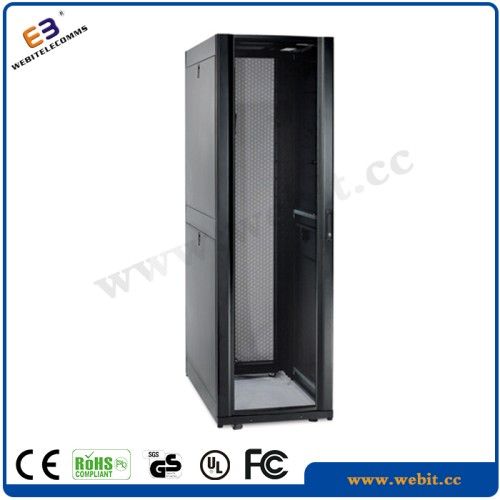

19 Inch Sever Racks with Cable Tray for Cabling System (WB-SA-xxxx97B)
19英寸机架带电缆系统电缆桥架（WB-SA-xxxx97B）
议价
加入意向| 型号。 | WB-SA-xxxx97b |
| 用法 | 网络集成系统 |
| 风扇编号 | 四 |
| 证明 | ce，iso，rohs |
| 颜色 | 黑色，灰色，白色等 |
| 静载荷 | 1200kgs |
| 应用 | 服务器布线，数据中心 |
| 商标 | Webitelecomms |
| 规范 | iso9001：2000 ce，rohs |
| HS编码 | 8517709000 |
| 类型 | 服务器机柜 |
| 安装 | 垂直 |
| 容量 | 18~48u |
| 条件 | 新 |
| 结构标准 | 19英寸/ 21英寸 |
| 表面 | 结霜/皱纹/光滑 |
| 物料 | SPCC冷轧+镀锌钢 |
| 运输包装 | 纸箱，木箱。 |
| 起源 | 宁波中国。 |
特征：
本机柜适用于安装数据和电信设备及其配电系统。
19'机架安装，重型结构 - 可能将负载能力扩展到1200KG.200KG。
大型面积：42U网箱超过4500平方厘米吃水面积。
放大安装角度。
每边接地
== 80％有效通气率。
== 24 x螺丝组装身体，快捷方便。
==通常用于Data Center机架组。
门：
==前弧穿孔门，摆动手柄锁
==返回带双点锁的双孔门
==每个侧面板分为两部分，可选锁
饰品
==风扇托盘（4/6/8） - 根据深度
== 4×位置可调19'安装雷管ng rail
==重载轮和可调脚
== 2×前置垂直电缆盘。一边。 side .
== 20套额外的M6笼式螺丝。
== 4ד一体式”安装导轨和垂直电缆管理（仅限宽幅机架！）宽机架！） only!)
电缆入口
==顶部 - 4×30mm圆形橡胶盖，2〜6矩形带带状条带d strip
==底部 - 4×30mm圆形橡胶盖，4×布线入口面板ntrance panel
==可以要求更多...
包
==拆装包装节省60％的容积，方便放养。
==中性纸箱包装
==胶合板托盘的选项
==根据客户的特殊要求变化规格=
尺寸建议
宽度：600,750,800毫米
==深度：670,870,1070,1270毫米
== height：12u，17u，22u，27u，32u，37u，42u，47u
==可定制尺寸
标准和材料：
==符合ansi / eia，rs-310-d; iec297-2; din41491：part1; din41494：part7; gb / t3047.2-92标准和etsi
标准。
==表面处理：脱脂，酸洗，防锈防腐，纯水清洗，静电
粉末涂料
材质：SPCC冷轧钢或EG钢
==厚度：安装型材：2.0mm，其他：1.20mm至1.50mm
==机柜轴承容量：1200KG
知识产权：IP-20
==主体颜色：RAL9004（黑色）; RAL7035（灰色）等
可选配件：：
固定架
刷子面板
空白面板
4.配线架
PDU（推荐）
我们的服务
样品服务：我们将收取一些样品费用，在您下订单后将退款。
包装设计支持：我们有您的定制设计的品牌团队。
常问问题
1）您的付款条件是什么？
---西联可以接受T / T，L / C。
2）你的贸易术语是什么？
--- exw，fob，cnf，cif也可以。
3）什么是加载端口？
---宁波或上海港。
4）你的最小起订量是多少？
---我们大部分产品的最小起订量为5件，不同的商品将不同。我们已经为每个项目指出了最小起订量
在价格表中。
5）您的产品保修是什么？
---作为欧洲市场，我们的产品拥有CE RoHS等国际安全标准。
---作为其他市场，也提供国际安全标准证书。
操作条件
•操作环境：onment：nment:
- 办公室
- 机柜不适用于室外安装和环境安装，可能会对机柜和安装设备的功能造成负面影响（例如，具有爆炸危险或潮湿和潮湿环境的环境）。
•必须受到保护：ainst：ainst:
- 机械损坏
- 处理不当
- 不同于橱柜的用途
•处理不当尤其如此：ially:
- 超载（最大推荐负载超过）
- 可能会影响机柜或已安装设备的负面运行和功能的设备安装
- 更换机柜的结构或设计
安装柜体
•为确保最大推荐负载，必须平均分配负载。ually.
•将机柜放在平坦的地板上，并使用调平脚调节任何差异。脚。 feet.
•为了避免电缆穿过某些电缆开口的情况下的灰尘渗透，可以用带刷子的挡板或用塑料框架固定（均可从我们那里购买）密封。m us).
环保
•所有部件均采用可回收材料制成，柜体退役后，必须按照有关规定处理。tions.
证书和符合性
•本产品完全符合CE＆RoHS.amp; RoHS指令。amp; RoHS.
本机柜适用于安装数据和电信设备及其配电系统。
19'机架安装，重型结构 - 可能将负载能力扩展到1200KG.200KG。
大型面积：42U网箱超过4500平方厘米吃水面积。
放大安装角度。
每边接地
== 80％有效通气率。
== 24 x螺丝组装身体，快捷方便。
==通常用于Data Center机架组。
门：
==前弧穿孔门，摆动手柄锁
==返回带双点锁的双孔门
==每个侧面板分为两部分，可选锁
饰品
==风扇托盘（4/6/8） - 根据深度
== 4×位置可调19'安装雷管ng rail
==重载轮和可调脚
== 2×前置垂直电缆盘。一边。 side .
== 20套额外的M6笼式螺丝。
== 4ד一体式”安装导轨和垂直电缆管理（仅限宽幅机架！）宽机架！） only!)
电缆入口
==顶部 - 4×30mm圆形橡胶盖，2〜6矩形带带状条带d strip
==底部 - 4×30mm圆形橡胶盖，4×布线入口面板ntrance panel
==可以要求更多...
包
==拆装包装节省60％的容积，方便放养。
==中性纸箱包装
==胶合板托盘的选项
==根据客户的特殊要求变化规格=
尺寸建议
宽度：600,750,800毫米
==深度：670,870,1070,1270毫米
== height：12u，17u，22u，27u，32u，37u，42u，47u
==可定制尺寸
标准和材料：
==符合ansi / eia，rs-310-d; iec297-2; din41491：part1; din41494：part7; gb / t3047.2-92标准和etsi
标准。
==表面处理：脱脂，酸洗，防锈防腐，纯水清洗，静电
粉末涂料
材质：SPCC冷轧钢或EG钢
==厚度：安装型材：2.0mm，其他：1.20mm至1.50mm
==机柜轴承容量：1200KG
知识产权：IP-20
==主体颜色：RAL9004（黑色）; RAL7035（灰色）等
| 没有。 | 项目 | 600宽 | 800wide | 物料 | 治疗 | 注意 |
| 1 | 帧 | 2 | 2 | 1.5mm SPCC钢 | 粉末涂料 | |
| 2 | 前门 | 1 | 1 | 1.2mm SPCC钢 | 粉末涂料 | |
| 3 | 侧门 | 4 | 4 | 1.2mm SPCC钢 | 粉末涂料 | 可拆卸 |
| 4 | 后门 | 2 | 2 | 1.2mm SPCC钢 | 粉末涂料 | |
| 5 | 锁 | 2 | 2 | / | / | 弹簧锁 |
| 6 | 顶盖 | 1 | 1 | 1.2mm SPCC钢 | 粉末涂料 | |
| 7 | 风扇单元 | 1 | 1 | 1.2mm SPCC钢 | 粉末涂料 | |
| 8 | Ac风扇 | 2或4 | 2或4 | / | / | D> 800,4 pcs pcs |
| 9 | Relese紧固件 | / | 6或12 | spcc t = 1.2 | 粉末涂料 | H≤27U，6pcs6pcs6pcs |
| 10 | 风扇电源线 | 1 | 1 | / | / | L = 1.5〜2.0M |
| 11 | 底板 | 1 | 1 | spcc t = 1.2 | 粉末涂料 | |
| 12 | 安装角度 | 6 | 6 | spcc t = 1.5 | 粉末涂料 | H≤27U，4pcs4pcs4pcs |
| 13 | 安装型材 | 4 | 4 | spcc t = 2.0 | 镀锌 | |
| 14 | 水平支撑 | 6 | 6 | / | / | 有时候 |
| 15 | 脚轮 | 4 | 4 | / | / | W.W / O制动器 |
| 16 | M12脚 | 4 | 4 | 钢 | 黄铜镀 | |
| 17 | 额外的螺丝 | 20 | 20 | / | / |
可选配件：：
固定架
刷子面板
空白面板
4.配线架
PDU（推荐）
我们的服务
样品服务：我们将收取一些样品费用，在您下订单后将退款。
包装设计支持：我们有您的定制设计的品牌团队。
常问问题
1）您的付款条件是什么？
---西联可以接受T / T，L / C。
2）你的贸易术语是什么？
--- exw，fob，cnf，cif也可以。
3）什么是加载端口？
---宁波或上海港。
4）你的最小起订量是多少？
---我们大部分产品的最小起订量为5件，不同的商品将不同。我们已经为每个项目指出了最小起订量
在价格表中。
5）您的产品保修是什么？
---作为欧洲市场，我们的产品拥有CE RoHS等国际安全标准。
---作为其他市场，也提供国际安全标准证书。
| Moderl号码 | 宽×深×高×高Height×Height | U | Moderl号码 | 宽×深×高×高Height×Height | U |
| WB-SA-662297b | 600×670×1081毫米; 1081毫米times;1081 mm | 22U | WB-SA-604297b | 600×1070×1970mm; 1970mmtimes;1970 mm | 42U |
| WB-SA-682297b | 600×870×1081毫米; 1081毫米times;1081 mm | 22U | WB-SA-884297b | 800×870×1970毫米; 1970毫米times;1970 mm | 42U |
| WB-SA-602297b | 600×1070×1081mm; 1081mmtimes;1081 mm | 22U | WB-SA-804297b | 800×1070×1970毫米; 1970毫米times;1970 mm | 42U |
| WB-SA-663797b | 600×670×1748mm; 1748mmtimes;1748 mm | 37U | WB-SA-8a4297b | 800×1170×1970mm; 1970mmtimes;1970 mm | 42U |
| WB-SA-683797b | 600×870×1748mm; 1748mmtimes;1748 mm | 37U | WB-SA-604797b | 600×1070×2192mm; 2192mmtimes;2192 mm | 47U |
| WB-SA-603797b | 600×1070×1748mm; 1748mmtimes;1748 mm | 37U | WB-SA-684797b | 600×870×2192mm; 2192mmtimes;2192 mm | 47U |
| WB-SA-664297b | 600×670×1970mm; 1970mmtimes;1970 mm | 42U | WB-SA-884797b | 800×870×2192mm; 2192mmtimes;2192 mm | 47U |
| WB-SA-684297b | 600×870×1970mm; 1970mmtimes;1970 mm | 42U | WB-SA-804797b | 800×1070×2192mm; 2192mmtimes;2192 mm | 47U |
操作条件
•操作环境：onment：nment:
- 办公室
- 机柜不适用于室外安装和环境安装，可能会对机柜和安装设备的功能造成负面影响（例如，具有爆炸危险或潮湿和潮湿环境的环境）。
•必须受到保护：ainst：ainst:
- 机械损坏
- 处理不当
- 不同于橱柜的用途
•处理不当尤其如此：ially:
- 超载（最大推荐负载超过）
- 可能会影响机柜或已安装设备的负面运行和功能的设备安装
- 更换机柜的结构或设计
安装柜体
•为确保最大推荐负载，必须平均分配负载。ually.
•将机柜放在平坦的地板上，并使用调平脚调节任何差异。脚。 feet.
•为了避免电缆穿过某些电缆开口的情况下的灰尘渗透，可以用带刷子的挡板或用塑料框架固定（均可从我们那里购买）密封。m us).
环保
•所有部件均采用可回收材料制成，柜体退役后，必须按照有关规定处理。tions.
证书和符合性
•本产品完全符合CE＆RoHS.amp; RoHS指令。amp; RoHS.
| Model NO. | WB-SA-xxxx97B |
| Usage | Network Integration System |
| Fan Number | Four |
| Certification | CE, ISO, RoHS |
| Color | Black ,Gray , White,etc |
| Static Loading Capacity | 1200kgs |
| Application | Servers Cabling, Data Center |
| Trademark | Webitelecomms |
| Specification | ISO9001: 2000 CE, RoHS |
| HS Code | 8517709000 |
| Type | Server Cabinet |
| Installation | Vertical |
| Capacity | 18~48u |
| Condition | New |
| Strucuture Standard | 19 Inches / 21inches |
| Surface | Frosting / Wrinkle /Smooth |
| Materials | SPCC Cold Rolled + Galvanized Steel |
| Transport Package | Carton, Wooden Case. |
| Origin | Ningbo China. |
Features:
This cabinet is intended for installation data and telecommunication devices and their distribution systems.
19' rack mountable, Heavy duty structure - possible of extending the load capacity up to 1200KG.200KG.
Large draught area: over 4500 square cm draught area regarding 42U network cabinet.
Scaled mounting angle.
Each side earthed.
== 80% effective ventilation rate.
== 24 x screws to assemble the body , quick and convenient.
== Usually for Data Center rack group.
Doors:
== Front arc perforated door , Swing handle lock
== Back double perforated doors with 2-point lock
== Each side panel was split into 2 parts , optional lock
Accessories
== Fan tray ( 4/6/8) - as per depth
== 4× position-adjustable 19 ' mounting railounting railng rail
== Heavy duty wheels and adjustable feet
== 2×vertical cable trays on front side . side . side .
== 20 sets of extra M6 caged screws.
== 4×'One-body' Mounting rails and vertical cable managements(800 Width rack only!)Width rack only!) only!)
Cable entrance
== Top - 4×30mm rounded with rubber cover, 2~6 rectangle with seriated stripd stripd strip
== Bottom - 4×30mm rounded with rubber cover,4×cabling entrance panelntrance panelntrance panel
== Can ask for more...
Package
== Disassembled packing save 60% volume , allows for convenient stocking.
== Neutral carton box packed
== Plywood pallet for options
== Varies specification upon customers' special requirements=
Size suggestions
== Width: 600,750,800 mm
== Depth: 670,870,1070,1270 mm
== Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
== Customized size is available
Standard and Materials:
== Comply with ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI
standard.
== Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity
powder coating
== Materials:SPCC cold rolled steel or EG steel
== Thickness:Mounting profile:2.0mm,others: 1.20mm to 1.50mm
== Cabinet Bearing capacity:1200KG
== IP degree: IP-20
== Body color:RAL9004(black);RAL7035(grey),etc
Optional Accessories::
1. Fixed shelf
2. Brush panel
3. Blank panel
4. Patch panel
5. PDU (Recommending)
Our Services
Sample Service: We will collect some sample fees, will refund after you place order.
Package design support: We have brand team for your customized design.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item
in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
OPERATION CONDITIONS
• Operation environment:onment:nment:
- Office
- The cabinet is not intended for outdoor installations and for installations in environment that can influence negatively the functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion or humid and wet surroundings).
• Must be protected against:ainst:ainst:
- Mechanical damage
- Improper handling
- A different usage than the cabinet is intended for
• Improper handling is especially:cially:ially:
- Overloading (maximum recommended load exceeding)
- Device installation that can influence negatively operation and function of the cabinet or the installed equipment
- Change of the construction or design of the cabinet
INSTALLATION OF THE CABINET
• To ensure the maximum recommended load, it is necessary to distribute the load equally.ually.ually.
• Place the cabinet on a flat floor and adjust any differences using the levelling feet. feet. feet.
• To avoid dust penetration in the case where cables lead through some of the cable openings, it may be sealed with a blanking panel with a brush or secured by a plastic frame (both can be purchased from us).m us).m us).
ENVIRONMENTAL PROTECTION
• All parts are made of recyclable materials and after decommissioning the cabinet, it must be disposed of according to relevant regulations.tions.tions.
CERTIFICATE AND CONFORMITY
• This product is fully in accordance with CE & RoHS.amp; RoHS.amp; RoHS.
This cabinet is intended for installation data and telecommunication devices and their distribution systems.
19' rack mountable, Heavy duty structure - possible of extending the load capacity up to 1200KG.200KG.
Large draught area: over 4500 square cm draught area regarding 42U network cabinet.
Scaled mounting angle.
Each side earthed.
== 80% effective ventilation rate.
== 24 x screws to assemble the body , quick and convenient.
== Usually for Data Center rack group.
Doors:
== Front arc perforated door , Swing handle lock
== Back double perforated doors with 2-point lock
== Each side panel was split into 2 parts , optional lock
Accessories
== Fan tray ( 4/6/8) - as per depth
== 4× position-adjustable 19 ' mounting railounting railng rail
== Heavy duty wheels and adjustable feet
== 2×vertical cable trays on front side . side . side .
== 20 sets of extra M6 caged screws.
== 4×'One-body' Mounting rails and vertical cable managements(800 Width rack only!)Width rack only!) only!)
Cable entrance
== Top - 4×30mm rounded with rubber cover, 2~6 rectangle with seriated stripd stripd strip
== Bottom - 4×30mm rounded with rubber cover,4×cabling entrance panelntrance panelntrance panel
== Can ask for more...
Package
== Disassembled packing save 60% volume , allows for convenient stocking.
== Neutral carton box packed
== Plywood pallet for options
== Varies specification upon customers' special requirements=
Size suggestions
== Width: 600,750,800 mm
== Depth: 670,870,1070,1270 mm
== Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
== Customized size is available
Standard and Materials:
== Comply with ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI
standard.
== Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity
powder coating
== Materials:SPCC cold rolled steel or EG steel
== Thickness:Mounting profile:2.0mm,others: 1.20mm to 1.50mm
== Cabinet Bearing capacity:1200KG
== IP degree: IP-20
== Body color:RAL9004(black);RAL7035(grey),etc
| NO. | Item | 600 wide | 800wide | Materials | Treatment | Note |
| 1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coating | |
| 2 | Front Door | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
| 3 | Side Door | 4 | 4 | 1.2mm SPCC steel | Powder coating | Removable |
| 4 | Back Door | 2 | 2 | 1.2mm SPCC steel | Powder coating | |
| 5 | Lock | 2 | 2 | / | / | Spring Lock |
| 6 | Top cover | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
| 7 | Fan unit | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
| 8 | Ac fan | 2 or 4 | 2 or 4 | / | / | D﹥800,4 pcs pcs |
| 9 | Relese fastener | / | 6 or 12 | SPCC T=1.2 | Powder coating | H≤27U, 6pcs6pcs6pcs |
| 10 | Fan power cord | 1 | 1 | / | / | L=1.5 to 2.0M |
| 11 | Bottom panel | 1 | 1 | SPCC T=1.2 | Powder coating | |
| 12 | Mounting angle | 6 | 6 | SPCC T=1.5 | Powder coating | H≤27U, 4pcs4pcs4pcs |
| 13 | Mounting profile | 4 | 4 | SPCC T=2.0 | Zinc plated | |
| 14 | Horizontal bracing | 6 | 6 | / | / | Sometime more |
| 15 | Castors | 4 | 4 | / | / | W.W/O brake |
| 16 | M12 feet | 4 | 4 | Steel | Brass plated | |
| 17 | Extra screws | 20 | 20 | / | / |
Optional Accessories::
1. Fixed shelf
2. Brush panel
3. Blank panel
4. Patch panel
5. PDU (Recommending)
Our Services
Sample Service: We will collect some sample fees, will refund after you place order.
Package design support: We have brand team for your customized design.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item
in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
| Moderl Number | Width×Depth×Height×HeightHeight×Height | U | Moderl Number | Width×Depth×Height×HeightHeight×Height | U |
| WB-SA-662297B | 600×670×1081 mmtimes;1081 mmtimes;1081 mm | 22U | WB-SA-604297B | 600×1070×1970 mmtimes;1970 mmtimes;1970 mm | 42U |
| WB-SA-682297B | 600×870×1081 mmtimes;1081 mmtimes;1081 mm | 22U | WB-SA-884297B | 800×870×1970 mmtimes;1970 mmtimes;1970 mm | 42U |
| WB-SA-602297B | 600×1070×1081 mmtimes;1081 mmtimes;1081 mm | 22U | WB-SA-804297B | 800×1070×1970 mmtimes;1970 mmtimes;1970 mm | 42U |
| WB-SA-663797B | 600×670×1748 mmtimes;1748 mmtimes;1748 mm | 37U | WB-SA-8A4297B | 800×1170×1970 mmtimes;1970 mmtimes;1970 mm | 42U |
| WB-SA-683797B | 600×870×1748 mmtimes;1748 mmtimes;1748 mm | 37U | WB-SA-604797B | 600×1070×2192 mmtimes;2192 mmtimes;2192 mm | 47U |
| WB-SA-603797B | 600×1070×1748 mmtimes;1748 mmtimes;1748 mm | 37U | WB-SA-684797B | 600×870×2192 mmtimes;2192 mmtimes;2192 mm | 47U |
| WB-SA-664297B | 600×670×1970 mmtimes;1970 mmtimes;1970 mm | 42U | WB-SA-884797B | 800×870×2192 mmtimes;2192 mmtimes;2192 mm | 47U |
| WB-SA-684297B | 600×870×1970 mmtimes;1970 mmtimes;1970 mm | 42U | WB-SA-804797B | 800×1070×2192 mmtimes;2192 mmtimes;2192 mm | 47U |
OPERATION CONDITIONS
• Operation environment:onment:nment:
- Office
- The cabinet is not intended for outdoor installations and for installations in environment that can influence negatively the functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion or humid and wet surroundings).
• Must be protected against:ainst:ainst:
- Mechanical damage
- Improper handling
- A different usage than the cabinet is intended for
• Improper handling is especially:cially:ially:
- Overloading (maximum recommended load exceeding)
- Device installation that can influence negatively operation and function of the cabinet or the installed equipment
- Change of the construction or design of the cabinet
INSTALLATION OF THE CABINET
• To ensure the maximum recommended load, it is necessary to distribute the load equally.ually.ually.
• Place the cabinet on a flat floor and adjust any differences using the levelling feet. feet. feet.
• To avoid dust penetration in the case where cables lead through some of the cable openings, it may be sealed with a blanking panel with a brush or secured by a plastic frame (both can be purchased from us).m us).m us).
ENVIRONMENTAL PROTECTION
• All parts are made of recyclable materials and after decommissioning the cabinet, it must be disposed of according to relevant regulations.tions.tions.
CERTIFICATE AND CONFORMITY
• This product is fully in accordance with CE & RoHS.amp; RoHS.amp; RoHS.
