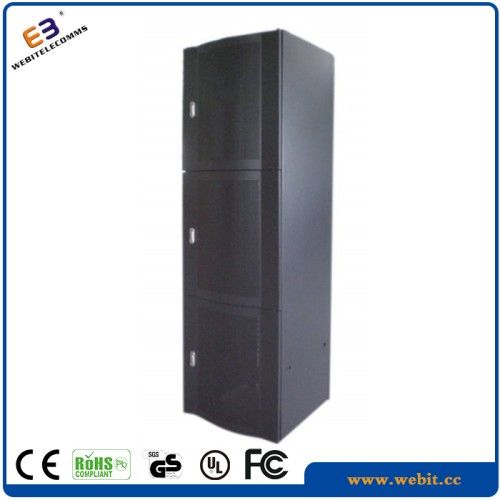

19′′ Multi-Section Server Cabinets
19“多段服务器机柜
议价
加入意向| 型号。 | WB-9fxxxxm5b |
| 用法 | 网络集成系统 |
| 风扇编号 | 四 |
| 证明 | ce，iso，rohs |
| 静态加载 | 1000公斤 |
| 颜色 | 白色，灰色，黑色等 |
| 厚度 | 安装外形2.0mm。其他1.5mm |
| 运输 | 海，空，火车，卡车 |
| 商标 | Webitelecomms |
| 规范 | iso9001：2000，ce，rohs |
| HS编码 | 8517709000 |
| 类型 | 服务器机柜 |
| 安装 | 垂直 |
| 容量 | 30U，40U |
| 条件 | 用过的 |
| 包 | 组装 |
| 材料 | SPCC冷轧钢 |
| 商标 | 丝印，铝贴纸，橡皮贴 |
| 证书 | CE。 RoHS指令。 SGS |
| 运输包装 | 纸箱，木箱 |
| 起源 | 宁波中国。 |
特征
==本机柜适用于安装数据和电信设备及其配电系统。
== 19'机架安装，9折型材结构 - 可以将负载能力扩展到1000KG.000KG。
==前后门接地。hing.
== 63％有效通气率。
==广泛用于数据中心机架组。
门
==前弧穿孔门 - 3段，月锁。
==背部带有手柄锁的平孔多孔门。
==可拆卸侧面板，可选锁
饰品
==风扇托盘（4/6/8） - 根据深度
== 4×位置可调19'安装r.ail.nting r.ail。 r.ail.
==重载轮和可调脚。
== 20套额外的M6笼式螺丝。
电缆入口
==顶部2 * 300×50mm矩形电缆入口，4 x 60 mm直径圆形电缆入口ntrance
==底部 - 无底板
==可以要求更多...
包
==拆装包装节省60％的容积，方便放养。
==中性纸箱包装
==胶合板托盘的选项
==根据客户的特殊要求变化规格
尺寸建议
宽度：600,800毫米
==深度：600,800,1000,1200毫米
== height：12u，17u，22u，27u，32u，37u，42u，47u
==可定制尺寸
标准和材质：
==符合ansi / eia，rs-310-d; iec297-2; din41491：part1; din41494：part7; gb / t3047.2-92标准和etsi
标准。
==表面处理：脱脂，酸洗，防锈，杀菌，纯水清洗，静电粉
涂层
材质：SPCC冷轧钢或EG钢
==厚度：安装型材：2.0mm，其他：1.20mm至1.50mm
==机柜轴承容量：1000KG
知识产权：IP-20
==主体颜色：RAL9004（黑色）; RAL7035（灰色）等
==我们的服务==
样品服务：我们将收取一些样品费用，在您下订单后将退款。
包装设计支持：我们有您的定制设计的品牌团队。
==公司资料==
WEBITELECOMMS成立于2008年，2010年被授予进出口权。
产品范围：19“网络机柜，网络机架，服务器机柜，服务器机架，接线板，PDU，网线，光纤
电缆，户外机柜，电池柜，IPAD充电柜
审计报告：ce，rohs，iso。
展示厅：约100平方米的展厅。
欢迎来到WEBITELECOMMS，相信我们的专业团队和服务将帮助您保持领先地位
市场。
== faq ==
1）您的付款条件是什么？
--- TT，LC，西联汇款可以接受。
2）你的贸易术语是什么？
--- exw，fob，cnf，cif也可以。
3）什么是加载端口？
---宁波，上海。
4）你的最小起订量是多少？
---我们大部分产品的最小起订量为5件，不同的商品将不同。我们已经为每个项目指出了最小起订量
在价格表中。
5）您的产品保修是什么？
---作为欧洲市场，我们的产品拥有CE RoHS等国际安全标准。
---作为其他市场，也提供国际安全标准证书。
==本机柜适用于安装数据和电信设备及其配电系统。
== 19'机架安装，9折型材结构 - 可以将负载能力扩展到1000KG.000KG。
==前后门接地。hing.
== 63％有效通气率。
==广泛用于数据中心机架组。
门
==前弧穿孔门 - 3段，月锁。
==背部带有手柄锁的平孔多孔门。
==可拆卸侧面板，可选锁
饰品
==风扇托盘（4/6/8） - 根据深度
== 4×位置可调19'安装r.ail.nting r.ail。 r.ail.
==重载轮和可调脚。
== 20套额外的M6笼式螺丝。
电缆入口
==顶部2 * 300×50mm矩形电缆入口，4 x 60 mm直径圆形电缆入口ntrance
==底部 - 无底板
==可以要求更多...
包
==拆装包装节省60％的容积，方便放养。
==中性纸箱包装
==胶合板托盘的选项
==根据客户的特殊要求变化规格
尺寸建议
宽度：600,800毫米
==深度：600,800,1000,1200毫米
== height：12u，17u，22u，27u，32u，37u，42u，47u
==可定制尺寸
标准和材质：
==符合ansi / eia，rs-310-d; iec297-2; din41491：part1; din41494：part7; gb / t3047.2-92标准和etsi
标准。
==表面处理：脱脂，酸洗，防锈，杀菌，纯水清洗，静电粉
涂层
材质：SPCC冷轧钢或EG钢
==厚度：安装型材：2.0mm，其他：1.20mm至1.50mm
==机柜轴承容量：1000KG
知识产权：IP-20
==主体颜色：RAL9004（黑色）; RAL7035（灰色）等
| 没有。 | 项目 | 600宽 | 800wide | 物料 | 治疗 | 注意 |
| 1 | 帧 | 2 | 2 | 1.5mm SPCC钢 | 粉末涂料 | 9或14折 |
| 2 | 前门 | 3 | 3 | 1.2mm SPCC钢 | 粉末涂料 | 电弧通风 |
| 3 | 侧门 | 2 | 2 | 1.2mm SPCC钢 | 粉末涂料 | 可拆卸 |
| 4 | 后门 | 1 | 1 | 1.2mm SPCC钢 | 粉末涂料 | 扁平排气 |
| 5 | 锁 | 4 | 4 | / | / | 手柄锁 |
| 6 | 顶盖 | 1 | 1 | 1.2mm SPCC钢 | 粉末涂料 | |
| 7 | 风扇单元 | 1 | 1 | 0.8mm SPCC钢 | 粉末涂料 | |
| 8 | Ac风扇 | 2或4 | 2或4 | / | / | D> 800,4 pcs pcs |
| 9 | 风扇电源线 | 1 | 1 | / | / | L = 1.5〜2.0M |
| 10 | 底板 | 1 | 1 | spcc t = 1.2 | 粉末涂料 | |
| 11 | 安装角度 | 6 | 6 | spcc t = 1.5 | 粉末涂料 | H≤27U，4pcs4pcs4pcs |
| 12 | 安装型材 | 4 | 4 | spcc t = 2.0 | 镀锌 | |
| 13 | 接地螺栓 | 1 | 1 | / | / | L = 20厘米 |
| 14 | 脚轮 | 4 | 4 | / | / | 3'，W / O制动器 |
| 15 | M12脚 | 4 | 4 | 钢 | 黄铜镀 | |
| 16 | 额外的螺丝 | 20 | 20 | / | / |
==我们的服务==
样品服务：我们将收取一些样品费用，在您下订单后将退款。
包装设计支持：我们有您的定制设计的品牌团队。
==公司资料==
WEBITELECOMMS成立于2008年，2010年被授予进出口权。
产品范围：19“网络机柜，网络机架，服务器机柜，服务器机架，接线板，PDU，网线，光纤
电缆，户外机柜，电池柜，IPAD充电柜
审计报告：ce，rohs，iso。
展示厅：约100平方米的展厅。
欢迎来到WEBITELECOMMS，相信我们的专业团队和服务将帮助您保持领先地位
市场。
== faq ==
1）您的付款条件是什么？
--- TT，LC，西联汇款可以接受。
2）你的贸易术语是什么？
--- exw，fob，cnf，cif也可以。
3）什么是加载端口？
---宁波，上海。
4）你的最小起订量是多少？
---我们大部分产品的最小起订量为5件，不同的商品将不同。我们已经为每个项目指出了最小起订量
在价格表中。
5）您的产品保修是什么？
---作为欧洲市场，我们的产品拥有CE RoHS等国际安全标准。
---作为其他市场，也提供国际安全标准证书。
| Model NO. | WB-9FxxxxM5B |
| Usage | Network Integration System |
| Fan Number | Four |
| Certification | CE, ISO, RoHS |
| Static Loading | 1000kgs |
| Colour | White, Grey, Black etc |
| Thickness | Mounting Profile 2.0mm. Others 1.5mm |
| Shipping | Sea, Air, Train, Truck |
| Trademark | Webitelecomms |
| Specification | ISO9001: 2000, CE, RoHS |
| HS Code | 8517709000 |
| Type | Server Cabinet |
| Installation | Vertical |
| Capacity | 30U-40U |
| Condition | Used |
| Package | Assembled |
| Material | SPCC Cold Rolled Steel |
| Logo | Silk Print, Aluminum Sticker, Rubber Sticker |
| Certificate | CE. RoHS. SGS |
| Transport Package | Carton, Wooden Case |
| Origin | Ningbo China. |
Features
== This cabinet is intended for installation data and telecommunication devices and their distribution systems.
== 19' rack mountable, 9 folds profile structure - possible of extending the load capacity up to 1000KG.000KG.
== Front & back door earthing.hing.hing.
== 63% effective ventilation rate.
== Widely used for Data Center rack group.
Doors
== Front arc perforated doors - 3 section , moon lock.
== Back flat perforated door with handle lock.
== Removable side panel , optional lock
Accessories
== Fan tray ( 4/6/8) - as per depth
== 4× position-adjustable 19 ' mounting r.ail.nting r.ail. r.ail.
== Heavy duty wheels and adjustable feet.
== 20 sets of extra M6 caged screws.
Cable entrance
== Top - 2 * 300×50mm rectangle cable entrance , 4 x 60 mm diameter rounded cable entrancentrancentrance
== Bottom - without bottom panel
== Can ask for more...
Package
== Disassembled packing save 60% volume , allows for convenient stocking.
== Neutral carton box packed
== Plywood pallet for options
== Varies specification upon customers' special requirements
Size suggestions
== Width: 600,800 mm
== Depth: 600,800,1000,1200 mm
== Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
== Customized size is available
Standard and Material:
== Comply with ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI
standard.
== Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder
coating
== Materials:SPCC cold rolled steel or EG steel
== Thickness:Mounting profile:2.0mm,others: 1.20mm to 1.50mm
== Cabinet Bearing capacity:1000KG
== IP degree: IP-20
== Body color:RAL9004(black);RAL7035(grey),etc
== Our Services ==
Sample Service: We will collect some sample fees, will refund after you place order.
Package design support: We have brand team for your customized design.
== Company Information ==
WEBITELECOMMS was established in 2008 and was awarded the rights of import and export in 2010.
Products range: 19''network cabinet,network rack,server cabinet,server rack,patch panel,PDU,network cable,fiber
cable,outdoor cabinet,battery cabinet,IPAD charging cabinet
Audit Report: CE,ROHS,ISO.
Showroom: About 100 square meters showroom.
Welcome to WEBITELECOMMS, believe that our professional team and service will help you stay step ahead in the
market.
== FAQ ==
1) What is your Payment term?
---TT, LC, Western Union is could be accept.
2) What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.
3) What is the Loading Port?
--- Ningbo,Shanghai.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item
in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
== This cabinet is intended for installation data and telecommunication devices and their distribution systems.
== 19' rack mountable, 9 folds profile structure - possible of extending the load capacity up to 1000KG.000KG.
== Front & back door earthing.hing.hing.
== 63% effective ventilation rate.
== Widely used for Data Center rack group.
Doors
== Front arc perforated doors - 3 section , moon lock.
== Back flat perforated door with handle lock.
== Removable side panel , optional lock
Accessories
== Fan tray ( 4/6/8) - as per depth
== 4× position-adjustable 19 ' mounting r.ail.nting r.ail. r.ail.
== Heavy duty wheels and adjustable feet.
== 20 sets of extra M6 caged screws.
Cable entrance
== Top - 2 * 300×50mm rectangle cable entrance , 4 x 60 mm diameter rounded cable entrancentrancentrance
== Bottom - without bottom panel
== Can ask for more...
Package
== Disassembled packing save 60% volume , allows for convenient stocking.
== Neutral carton box packed
== Plywood pallet for options
== Varies specification upon customers' special requirements
Size suggestions
== Width: 600,800 mm
== Depth: 600,800,1000,1200 mm
== Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
== Customized size is available
Standard and Material:
== Comply with ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI
standard.
== Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder
coating
== Materials:SPCC cold rolled steel or EG steel
== Thickness:Mounting profile:2.0mm,others: 1.20mm to 1.50mm
== Cabinet Bearing capacity:1000KG
== IP degree: IP-20
== Body color:RAL9004(black);RAL7035(grey),etc
| NO. | Item | 600 wide | 800wide | Materials | Treatment | Note |
| 1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coating | 9 or 14 folds |
| 2 | Front Door | 3 | 3 | 1.2mm SPCC steel | Powder coating | arc vented |
| 3 | Side Door | 2 | 2 | 1.2mm SPCC steel | Powder coating | Removable |
| 4 | Back Door | 1 | 1 | 1.2mm SPCC steel | Powder coating | Flat vented |
| 5 | Lock | 4 | 4 | / | / | Handle Lock |
| 6 | Top cover | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
| 7 | Fan unit | 1 | 1 | 0.8mm SPCC steel | Powder coating | |
| 8 | Ac fan | 2 or 4 | 2 or 4 | / | / | D﹥800,4 pcs pcs |
| 9 | Fan power cord | 1 | 1 | / | / | L=1.5 to 2.0M |
| 10 | Bottom panel | 1 | 1 | SPCC T=1.2 | Powder coating | |
| 11 | Mounting angle | 6 | 6 | SPCC T=1.5 | Powder coating | H≤27U, 4pcs4pcs4pcs |
| 12 | Mounting profile | 4 | 4 | SPCC T=2.0 | Zinc plated | |
| 13 | Earthing bolts | 1 | 1 | / | / | L=20 cm |
| 14 | Castors | 4 | 4 | / | / | 3', W/O brake brake |
| 15 | M12 feet | 4 | 4 | Steel | Brass plated | |
| 16 | Extra screws | 20 | 20 | / | / |
