特征：
_柜采用双壁式设计。它由主体，屋顶，后面板，侧面板和底座组成。
_双壁式后面板，双面板，螺栓由内部固定。双壁式门具有比基尼定影装置，关闭门后不能从外部看到螺栓。倾斜揉面板覆盖柜子和
基金会通过强制性措施消除进入内阁。
_内外侧揉面板（间距25mm）带提供通风通道，支持机柜内部热变化，可减少阳光照射的影响。
_屋顶面板有雨篷，尺寸全部伸展25毫米和75毫米高。其具有通风良好以夹紧槽并确保气体的更换。
_基座可以使用整个块或分隔三个密封面板部分进行密封。
_柜可采用19寸结构安装，可安装安装面板或根据定制设计。
_自然风冷。机柜可以在顶盖上安装风扇，并在两侧底部用防尘盖打孔。
_防护等级：：IP55
_我们可以根据客户要求设计结构。
标准和材质：
符合GB / T 19183和IEC 61969。
表面处理：脱脂，磷化，粉末涂料。
材质：冷轧钢或不锈钢
颜色：RAL5012（顶盖和底座）; RAL7035（其他）

Features:

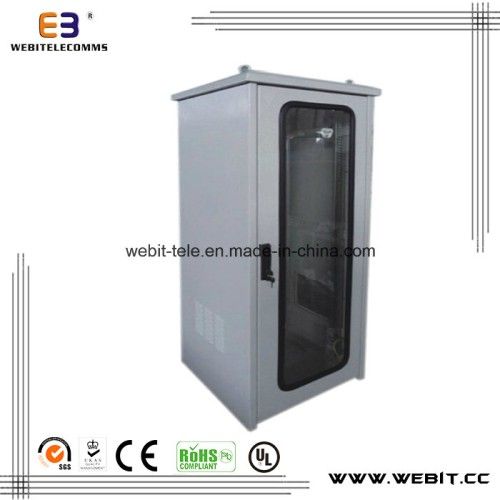

_ The cabinet adopt the double wall type design. It is composed with main body, roof, the rear panel, the side panel and the base.
_ The double wall type rear panel, the dual side panel, the bolts are fixed by inside. The double wall type gate has the bikini fixing device, after closes the gate not to be able to see the bolt from outside. Leans the kneading board to cover the cabinet and the
Foundation, eliminated entered the cabinet by the compulsory measure weakness.
_ Inside and outside side kneadingboard (spacing 25mm) the band provides ventilates the channel, supports the cabinet internal heat change and may reduce the sunlight illumination the infIuence.
_ The roof panel has the rain awning with the size all around stretches out 25mm and 75mm high. Which have the integrity well ventilated to clamp the trough and ensuring the exchanging of the gas.
_ The base may use the entire block or divide three parts of sealed panel to seal.
_ The cabinet can adopt 19 inch structure to install, It can install the mounting panel or according to the custom design also.
_ The natural wind cooling. The cabinet can be installed fans on the top cover and punched the hole with dust proof cover at the bottom of two sides.
_ Protection Degress: : IP55
_ We can design the structure as the customer requirement.
Standard and Material:
Comply with GB/T 19183 and IEC 61969.
Surface Treatment: Degreasing, phosphating, powder coating.
Material: Cold rolled steel or stainless steel
Color: RAL5012(Top cover and base); RAL7035(The others)
