特征：
IP65户外机柜配有A / C
_柜采用双壁式设计。它由主体，屋顶，后面板，侧面板和底座组成。
_双壁式后面板，双面板，螺栓由内部固定。双壁式门具有比基尼定影装置，关闭门后不能从外部看到螺栓。倾斜揉面板覆盖内阁和基金会，通过强制性措施消除进入内阁。
_内外侧揉面板（间距25mm）带提供通风通道，支持机柜内部热变化，可减少阳光照射的影响。
_屋顶面板有雨篷，尺寸全部伸展25毫米和75毫米高。其具有通风良好以夹紧槽并确保气体的更换。
_基座可以使用整个块或分隔三个密封面板部分进行密封。
_柜可采用19寸结构安装，可安装安装面板或根据定制设计。
_自然风冷。机柜可以在顶盖上安装风扇，并在两侧底部用防尘盖打孔。
_防护等级：：IP65
_我们可以根据客户要求设计结构。
标准和材质：
符合GB / T 19183和IEC 61969。
表面处理：脱脂，磷化，粉末涂料。
材质：冷轧钢或不锈钢
颜色：RAL5012（顶盖和底座）; RAL7035（其他）
-------------------------------------------------- - - - - - - - - -我们的服务 - - - - - - - - - - - - - - - - ----------------------------
样品服务：我们将收取一些样品费用，在您下订单后将退款
包装设计支持：我们有您的定制设计的品牌团队。
-------------------------------------------------- - - - - - - 公司信息 - - - - - - - - - - - - - - - - - - ----------------
WEBITELECOMMS成立于2008年，2010年被授予进出口权。
产品范围：19“网络机柜，网络机架，服务器机柜，服务器机架，配线架，PDU，网络
电缆，光纤电缆，户外机柜，电池柜，IPAD充电柜
审计报告：ce，rohs，iso。
展示厅：约100平方米的展厅。
欢迎来到WEBITELECOMMS，相信我们的专业团队和服务将帮助您保持步伐
在市场前进。
-------------------------------------------------- - - - - - - - - - - - - 常问问题 - - - - - - - - - - - - - ---------------------------------------
1）您的付款条件是什么？
--- TT，LC，西联汇款可以接受。
2）你的贸易术语是什么？
--- exw，fob，cnf，cif也可以。
3）什么是加载端口？
---宁波，上海。
4）你的最小起订量是多少？
---我们大部分产品的最小起订量为5件，不同的商品将不同。我们已经在价格表中列出了每个项目的最小起订量。
5）您的产品保修是什么？
---作为欧洲市场，我们的产品拥有CE RoHS等国际安全标准。
---作为其他市场，也提供国际安全标准证书。

Features:

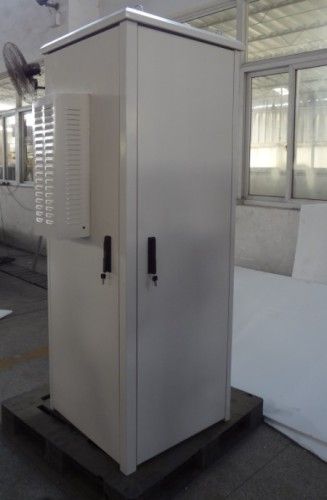

IP65 outdoor cabinets with A/C
_ The cabinet adopt the double wall type design. It is composed with main body, roof, the rear panel, the side panel and the base.
_ The double wall type rear panel, the dual side panel, the bolts are fixed by inside. The double wall type gate has the bikini fixing device, after closes the gate not to be able to see the bolt from outside. Leans the kneading board to cover the cabinet and the Foundation, eliminated entered the cabinet by the compulsory measure weakness.
_ Inside and outside side kneadingboard (spacing 25mm) the band provides ventilates the channel, supports the cabinet internal heat change and may reduce the sunlight illumination the infIuence.
_ The roof panel has the rain awning with the size all around stretches out 25mm and 75mm high. Which have the integrity well ventilated to clamp the trough and ensuring the exchanging of the gas.
_ The base may use the entire block or divide three parts of sealed panel to seal.
_ The cabinet can adopt 19 inch structure to install, It can install the mounting panel or according to the custom design also.
_ The natural wind cooling. The cabinet can be installed fans on the top cover and punched the hole with dust proof cover at the bottom of two sides.
_ Protection Degress: : IP65
_ We can design the structure as the customer requirement.
Standard and Material:
Comply with GB/T 19183 and IEC 61969.
Surface Treatment: Degreasing, phosphating, powder coating.
Material: Cold rolled steel or stainless steel
Color: RAL5012(Top cover and base); RAL7035(The others)
-------------------------------------------------------------------Our Services-----------------------------------------------------------
Sample Service: We will collect some sample fees, will refund after you place orders
Package design support: We have brand team for your customized design.
--------------------------------------------------------------Company Information----------------------------------------------------
WEBITELECOMMS was established in 2008 and was awarded the rights of import and export in 2010.
Products range: 19''network cabinet,network rack,server cabinet,server rack,patch panel,PDU,network
cable,fiber cable,outdoor cabinet,battery cabinet,IPAD charging cabinet
Audit Report: CE,ROHS,ISO.
Showroom: About 100 square meters showroom.
Welcome to WEBITELECOMMS, believe that our professional team and service will help you stay step
ahead in the market.
--------------------------------------------------------------------------FAQ----------------------------------------------------------------
1) What is your Payment term?
---TT, LC, Western Union is could be accept.
2) What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.
3) What is the Loading Port?
--- Ningbo,Shanghai.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
