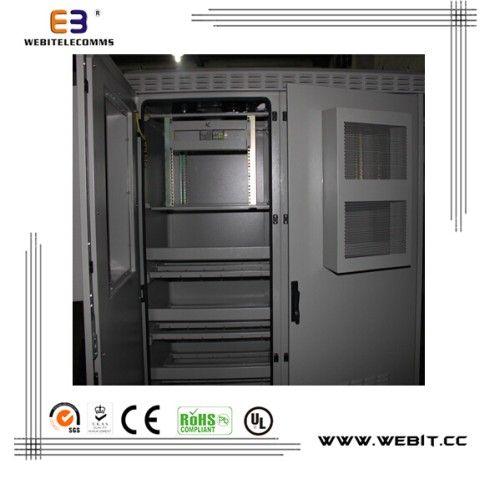

IP55 UPS Battery Rack with AC Cooling
IP55 UPS电池架，带交流冷却
| 型号。 | WB-BC-A |
| 用法 | 网络集成系统 |
| 风扇编号 | 四 |
| 证明 | ce，iso，rohs |
| 材料 | SPCC冷轧钢，铝框架 |
| 静态加载 | 1500kgs |
| 包 | 纸箱，木箱，木托盘 |
| 运输 | 海，空，火车，卡车 |
| 商标 | Webitelecomms |
| 起源 | 宁波中国。 |
| 类型 | 服务器机柜 |
| 安装 | 组装或拆卸 |
| 容量 | 18~48u |
| 条件 | 新 |
| 厚度 | 安装外形2.0mm。其他1.5mm |
| 商标 | 丝印，铝贴纸，橡皮贴 |
| 颜色 | Ral9004，Ral7044，Ral7039等 |
| 饰品 | 4个风扇和脚蹬，20套笼子螺母，货架，货架ts, Shelf |
| 规范 | ansi / eiars-310-d，iec297-2，din41494; part1，din4 |
| HS编码 | 8517709000 |
产品规格
UPS电池柜
2.电池柜
可以是固定式空调
4.用于室外
产品描述
1.尺寸：宽度1100MM，深度750MM，高度1600MM或客户定制
2.机柜采用双壁式设计，由主体，车顶，后排和侧板组成。
3.冷却系统：可固定在前门或后门的空调或热交换器，顶部风扇单元。具有通风孔的顶部和底部屋顶通风。
4.材质：SPCC冷轧钢，不锈钢，镀锌钢或客户要求
5.防护等级：IP55
6.防水，防尘：
7.密封进口密封带，防水设计和空气过滤器实现有效保护
8.温湿度解决方案：采用不同的组件控制温湿度，确保柜内工作状态良好。
9.机器保护解决方案：机柜专门设计，防止人身伤害，地震等损害。 10.监控系统：可监控内部温度，湿度，消防/烟雾，门打开状态。
11.灯：单件LED灯管用于照明并固定在顶盖上。
12.机柜分为两部分，每个房间都有相应的门和UPS和其他布线设备的安装面板。 4个镀锌19“安装导轨用于19”设备，9U高度，尺寸可根据客户要求定制。
13.每个房间的铜接地棒，
14.机柜采用双壁式设计，由主体，车顶，后排和侧板组成。
静态负载1500KGS
我们的服务
样品服务：我们将收取一些样品费用，在您下订单后将退款。
包装设计支持：我们有您的定制设计的品牌团队。
公司信息
WEBITELECOMMS成立于2008年，2010年被授予进出口权。
产品范围：19'机架和机柜，户外机柜，结构化布线，光纤，PDU，KVM和光纤转换器
审计报告：ce，rohs，iso。
展示厅：约100平方米的展厅。
欢迎来到WEBITELECOMMS，相信我们的专业团队和服务将帮助您在市场上领先一步。
常问问题
1）您的付款条件是什么？
---西联可以接受T / T，L / C。
2）你的贸易术语是什么？
--- exw，fob，cnf，cif也可以。
3）什么是加载端口？
---宁波或上海港。
4）你的最小起订量是多少？
---我们大部分产品的最小起订量为5件，不同的商品将不同。我们已经在价格表中列出了每个项目的最小起订量。
5）您的产品保修是什么？
---作为欧洲市场，我们的产品拥有CE RoHS等国际安全标准。
---作为其他市场，也提供国际安全标准证书。
UPS电池柜
2.电池柜
可以是固定式空调
4.用于室外
产品描述
1.尺寸：宽度1100MM，深度750MM，高度1600MM或客户定制
2.机柜采用双壁式设计，由主体，车顶，后排和侧板组成。
3.冷却系统：可固定在前门或后门的空调或热交换器，顶部风扇单元。具有通风孔的顶部和底部屋顶通风。
4.材质：SPCC冷轧钢，不锈钢，镀锌钢或客户要求
5.防护等级：IP55
6.防水，防尘：
7.密封进口密封带，防水设计和空气过滤器实现有效保护
8.温湿度解决方案：采用不同的组件控制温湿度，确保柜内工作状态良好。
9.机器保护解决方案：机柜专门设计，防止人身伤害，地震等损害。 10.监控系统：可监控内部温度，湿度，消防/烟雾，门打开状态。
11.灯：单件LED灯管用于照明并固定在顶盖上。
12.机柜分为两部分，每个房间都有相应的门和UPS和其他布线设备的安装面板。 4个镀锌19“安装导轨用于19”设备，9U高度，尺寸可根据客户要求定制。
13.每个房间的铜接地棒，
14.机柜采用双壁式设计，由主体，车顶，后排和侧板组成。
静态负载1500KGS
我们的服务
样品服务：我们将收取一些样品费用，在您下订单后将退款。
包装设计支持：我们有您的定制设计的品牌团队。
公司信息
WEBITELECOMMS成立于2008年，2010年被授予进出口权。
产品范围：19'机架和机柜，户外机柜，结构化布线，光纤，PDU，KVM和光纤转换器
审计报告：ce，rohs，iso。
展示厅：约100平方米的展厅。
欢迎来到WEBITELECOMMS，相信我们的专业团队和服务将帮助您在市场上领先一步。
常问问题
1）您的付款条件是什么？
---西联可以接受T / T，L / C。
2）你的贸易术语是什么？
--- exw，fob，cnf，cif也可以。
3）什么是加载端口？
---宁波或上海港。
4）你的最小起订量是多少？
---我们大部分产品的最小起订量为5件，不同的商品将不同。我们已经在价格表中列出了每个项目的最小起订量。
5）您的产品保修是什么？
---作为欧洲市场，我们的产品拥有CE RoHS等国际安全标准。
---作为其他市场，也提供国际安全标准证书。
| Model NO. | WB-BC-A |
| Usage | Network Integration System |
| Fan Number | Four |
| Certification | CE, ISO, RoHS |
| Material | SPCC Cold Rolled Steel, Frames Is Aluminum |
| Static Loading | 1500kgs |
| Package | Cartons, Wooden Case, Wooden Pallets |
| Shipping | Sea, Air, Train, Truck |
| Trademark | Webitelecomms |
| Origin | Ningbo China. |
| Type | Server Cabinet |
| Installation | Assemble or Disassemble |
| Capacity | 18~48u |
| Condition | New |
| Thickness | Mounting Profile 2.0mm. Others 1.5mm |
| Logo | Silk Print, Aluminum Sticker, Rubber Sticker |
| Colour | Ral9004, Ral7044, Ral7039 etc |
| Accessories | 4 Fans&Feets&Castors, 20 Sets Cage Nuts, Shelfuts, Shelfts, Shelf |
| Specification | ANSI/Eia RS-310-D, Iec297-2, DIN41494; Part1, DIN4 |
| HS Code | 8517709000 |
Specifications
1. UPS battery cabinet
2. Ups battery cabinet
3. Could be fixed air conditioner
4. Used for outdoor
Product Description
1. Dimensions: Width 1100MM, Depth 750MM, Height 1600MM or customized as clients
2. The cabinet is adopted double wall type design which is composed with main body, roof, rear and side panels.
3. Cooling system: Air conditioner or Heat exchanger which could be fixed on the front or back door, top fan units. The top and bottom roof with vented holes are for ventilation.
4. Material: SPCC cold rolled steel, stainless steel, galvanized steel or as customer's requirements
5. Protection level: IP55
6. Waterproof, dust proof:
7. Sealed by import seal belt, waterproof design and air filter instrument realize the efficient protection
8. Temperature and humidity solution: We adopt different components to control temperature and humidity to ensure the best working condition inside the cabinet.
9. Machine protection solution: The cabinet is designed specifically to protect it from human damage, earthquick and other damages. 10. Monitor system: Can monitor internal temperature, humidity, fire/smoke, door opened state.
11. Light: One piece LED tube light is for lighting insde and fixed on the top cover.
12. The cabinet is divided into 2 parts, each room have respective door and mounting panels for UPS and other cabling equipments. 4pcs zinc plating 19'' mounting rails are for 19'' equipments, 9U height, also the sizes could be customized as clients' requirement.
13. Copper earthing bars for every room,
14. The cabinet is adopted double wall type design which is composed with main body, roof, rear and side panels.
15. Static loading 1500KGS
Our Services
Sample Service: We will collect some sample fees, will refund after you place order.
Package design support: We have brand team for your customized design.
Company Information
WEBITELECOMMS was established in 2008 and was awarded the rights of import and export in 2010.
Products range: 19' racks and cabinets, outdoor cabinets, structured cabling, fiber optic , PDU, KVM and Fiber media converterverter
Audit Report: CE,ROHS,ISO.
Showroom: About 100 square meters showroom.
Welcome to WEBITELECOMMS, believe that our professional team and service will help you stay step ahead in the market.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
1. UPS battery cabinet
2. Ups battery cabinet
3. Could be fixed air conditioner
4. Used for outdoor
Product Description
1. Dimensions: Width 1100MM, Depth 750MM, Height 1600MM or customized as clients
2. The cabinet is adopted double wall type design which is composed with main body, roof, rear and side panels.
3. Cooling system: Air conditioner or Heat exchanger which could be fixed on the front or back door, top fan units. The top and bottom roof with vented holes are for ventilation.
4. Material: SPCC cold rolled steel, stainless steel, galvanized steel or as customer's requirements
5. Protection level: IP55
6. Waterproof, dust proof:
7. Sealed by import seal belt, waterproof design and air filter instrument realize the efficient protection
8. Temperature and humidity solution: We adopt different components to control temperature and humidity to ensure the best working condition inside the cabinet.
9. Machine protection solution: The cabinet is designed specifically to protect it from human damage, earthquick and other damages. 10. Monitor system: Can monitor internal temperature, humidity, fire/smoke, door opened state.
11. Light: One piece LED tube light is for lighting insde and fixed on the top cover.
12. The cabinet is divided into 2 parts, each room have respective door and mounting panels for UPS and other cabling equipments. 4pcs zinc plating 19'' mounting rails are for 19'' equipments, 9U height, also the sizes could be customized as clients' requirement.
13. Copper earthing bars for every room,
14. The cabinet is adopted double wall type design which is composed with main body, roof, rear and side panels.
15. Static loading 1500KGS
Our Services
Sample Service: We will collect some sample fees, will refund after you place order.
Package design support: We have brand team for your customized design.
Company Information
WEBITELECOMMS was established in 2008 and was awarded the rights of import and export in 2010.
Products range: 19' racks and cabinets, outdoor cabinets, structured cabling, fiber optic , PDU, KVM and Fiber media converterverter
Audit Report: CE,ROHS,ISO.
Showroom: About 100 square meters showroom.
Welcome to WEBITELECOMMS, believe that our professional team and service will help you stay step ahead in the market.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
