Central Air Conditioner Digital Room Thermostat
中央空调数字室温控器
议价
加入意向| 型号。 | W807 |
| 商标 | HS |
| 规范 | iso ce rohs |
| HS编码 | 9032100000 |
| 操作模式 | 手动操作 |
| 运输包装 | 标准出口包装 |
| 起源 | 山东中国 |
描述
HS-W807系列，大型液晶数字恒温器，220 VAC±10％，风扇盘管2管恒温器，控制2/3线阀。阀门。 valves.
基本功能
1工作模式（酷，热）
2风扇转速（低，中，高或自动）
3低温保护功能
4时间和时间
5调查，显示和设定室温
6大，清晰，背光显示。易于阅读和阅读
7内存功能：参数永久保存在内存中，并在断电期间保留。
8防卫霜功能
9红外遥控功能（可选）
10防冻保护
产品规格
IV电压：220±10％VAC，50 / 60Hz，50 / 60Hz,50/60Hz
差分温度：最大±1ºC;最大1ºCC max;1ºC max
设定温度范围：5ºC-35ºCC-35ºCrdm;CC-35ºC
加载：<3At;3A
工作环境温度：-10°C - 60°c60°cg; c60° c
传感器类型：NTC
颜色：白色象牙色
相对湿度： <92% (23ºC)3ºC)
尺寸：86mm X 86mm X 13mm（H / W / D）
显示尺寸：65mm X 68mm（H / W）
安装
安装尺寸：标准86接线盒
打开钩子
取下一行
连接电线
用两个螺丝固定恒温器
插入一行行
抓住壳，分期付款
服务
根据客户需求定制开发，提供ODM或OEM服务
HS-W807系列，大型液晶数字恒温器，220 VAC±10％，风扇盘管2管恒温器，控制2/3线阀。阀门。 valves.
基本功能
1工作模式（酷，热）
2风扇转速（低，中，高或自动）
3低温保护功能
4时间和时间
5调查，显示和设定室温
6大，清晰，背光显示。易于阅读和阅读
7内存功能：参数永久保存在内存中，并在断电期间保留。
8防卫霜功能
9红外遥控功能（可选）
10防冻保护
产品规格
IV电压：220±10％VAC，50 / 60Hz，50 / 60Hz,50/60Hz
差分温度：最大±1ºC;最大1ºCC max;1ºC max
设定温度范围：5ºC-35ºCC-35ºCrdm;CC-35ºC
加载：<3At;3A
工作环境温度：-10°C - 60°c60°cg; c60° c
传感器类型：NTC
颜色：白色象牙色
相对湿度： <92% (23ºC)3ºC)
尺寸：86mm X 86mm X 13mm（H / W / D）
显示尺寸：65mm X 68mm（H / W）
安装
安装尺寸：标准86接线盒
打开钩子
取下一行
连接电线
用两个螺丝固定恒温器
插入一行行
抓住壳，分期付款
服务
根据客户需求定制开发，提供ODM或OEM服务
| Model NO. | W807 |
| Trademark | HS |
| Specification | ISO CE ROHS |
| HS Code | 9032100000 |
| Mode of Operation | Manual Operation |
| Transport Package | Standard Export Packing |
| Origin | Shandong China |
Description

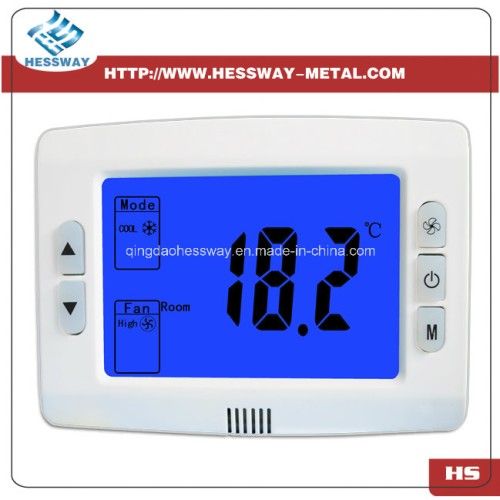

HS-W807 series, large LCD digital thermostat, 220 VAC±10%, 2-pipe thermostat for fan coil, control 2/3 line valves. valves. valves.
Basic Features
1 Work modes (Cool,Heat)
2 Fan speed (Low,Med,High or Auto)
3 Low temperature protection function
4 Time on and Time off
5 Surveys, display and set room temperature
6 Large, clear, backlit display. easy-to-see and read
7 Memory function: parameters are permanently held in memory and retained during power outages.
8 Guards against the rime function
9 Infrared remote-controlled function (option)
10 Anti-freezing protection
Product Specifications
IVoltage: 220±10%VAC,50/60Hz,50/60Hz,50/60Hz
Differential Temperature:±1ºC max;1ºC maxC max;1ºC max
Setting Temperature Range: 5ºC-35ºCC-35ºCrdm;CC-35ºC
Load:<3At;3A
Operation enviroment temperature :-10° c - 60° c60° cg; c60° c
Sensor type: NTC
Color : white ivory
Relative humidity: <92% (23ºC)3ºC)
Dimensions: 86mm X 86mm X 13mm (H/W/D)
Size of display: 65mm X 68mm (H/W)
Installation
Installs the size: standard 86 junction box
Turns on the hook
Takes down a row of line
Connecting the wires
Fixing the thermostat with two screws
Inserts a row of line
Catches the shell, the installment finished
Services
According to customer needs to custom development, to provide ODM or OEM service
HS-W807 series, large LCD digital thermostat, 220 VAC±10%, 2-pipe thermostat for fan coil, control 2/3 line valves. valves. valves.
Basic Features
1 Work modes (Cool,Heat)
2 Fan speed (Low,Med,High or Auto)
3 Low temperature protection function
4 Time on and Time off
5 Surveys, display and set room temperature
6 Large, clear, backlit display. easy-to-see and read
7 Memory function: parameters are permanently held in memory and retained during power outages.
8 Guards against the rime function
9 Infrared remote-controlled function (option)
10 Anti-freezing protection
Product Specifications
IVoltage: 220±10%VAC,50/60Hz,50/60Hz,50/60Hz
Differential Temperature:±1ºC max;1ºC maxC max;1ºC max
Setting Temperature Range: 5ºC-35ºCC-35ºCrdm;CC-35ºC
Load:<3At;3A
Operation enviroment temperature :-10° c - 60° c60° cg; c60° c
Sensor type: NTC
Color : white ivory
Relative humidity: <92% (23ºC)3ºC)
Dimensions: 86mm X 86mm X 13mm (H/W/D)
Size of display: 65mm X 68mm (H/W)
Installation
Installs the size: standard 86 junction box
Turns on the hook
Takes down a row of line
Connecting the wires
Fixing the thermostat with two screws
Inserts a row of line
Catches the shell, the installment finished
Services
According to customer needs to custom development, to provide ODM or OEM service
