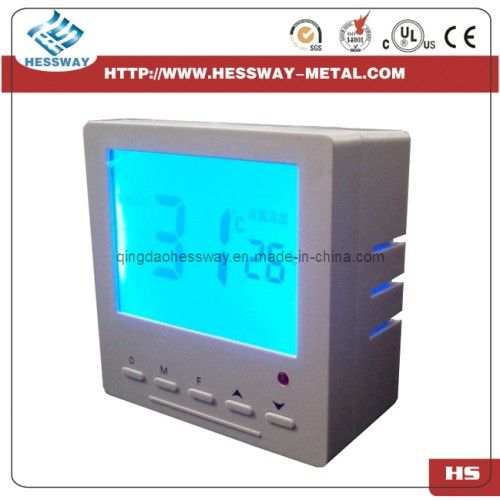

Floor External Fixed Room Thermostat for 7 Days Prgrammable (HS-DM810B)
室外固定室温控器7天可编程（HS-DM810B）
议价
加入意向| 型号。 | HS-dm810b |
| 地暖 | 恒温器 |
| 控制类型 | 数字 |
| 显示类型 | 液晶显示 |
| 商标 | HS |
| 规范 | iso ce rohs |
| HS编码 | 9032100000 |
| 证明 | tuv，ce，ccc，ul |
| 用法 | 空调，干燥设备，冰箱 |
| 类型 | 温度控制器 |
| 材料 | ABS + PC |
| 运输包装 | 标准出口包装 |
| 起源 | 青岛 |
产品描述
HS-D / M810系列数字恒温外观豪华，大屏幕液晶显示，进口微电脑控制技术，可实现每天四次，七天周编程功能。通过内部恒温器NTC温度传感器检测室内温度，并与用户设定的温度进行实时比较。自动打开或关闭管道电动阀门，达到保持房间恒温的目的。
适用范围
HS-D / M810系列数字温度控制器适用于地暖，供热，电加热设备（电热膜，加热电缆，电加热器，电阻丝，碳晶板）。
产品功能
1推荐用于控制地板采暖和电加热。
电子开/关控制高达3000W，16A或5000W，20A
3.从星期一到星期日六个每日可编程的时间设置
4.大背光显示屏，LED屏幕，易于阅读和阅读
5.红外遥控功能（可选）
6.内置断路器
7.工作模式切换（可编程，不可编程）
8.显示温度重新校准
9.低温保护功能
10.调查，显示和设定室温
11.内存功能：参数永久保存在内存中，并在断电期间保留
12.防冻保护
13.2传感器：带地板限位器传感器的房间传感器
技术说明
外壳材质：ABS + PC合金（阻燃）
负电感负载：220v 6A
阻抗负载：220v 16A
外形尺寸：86毫米* 86毫米* 40毫米（外部固定）
安装孔与标准接线盒相距60 mm
服务
可用于客户化，ODM和OEM。
HS-D / M810系列数字恒温外观豪华，大屏幕液晶显示，进口微电脑控制技术，可实现每天四次，七天周编程功能。通过内部恒温器NTC温度传感器检测室内温度，并与用户设定的温度进行实时比较。自动打开或关闭管道电动阀门，达到保持房间恒温的目的。
适用范围
HS-D / M810系列数字温度控制器适用于地暖，供热，电加热设备（电热膜，加热电缆，电加热器，电阻丝，碳晶板）。
产品功能
1推荐用于控制地板采暖和电加热。
电子开/关控制高达3000W，16A或5000W，20A
3.从星期一到星期日六个每日可编程的时间设置
4.大背光显示屏，LED屏幕，易于阅读和阅读
5.红外遥控功能（可选）
6.内置断路器
7.工作模式切换（可编程，不可编程）
8.显示温度重新校准
9.低温保护功能
10.调查，显示和设定室温
11.内存功能：参数永久保存在内存中，并在断电期间保留
12.防冻保护
13.2传感器：带地板限位器传感器的房间传感器
技术说明
外壳材质：ABS + PC合金（阻燃）
负电感负载：220v 6A
阻抗负载：220v 16A
外形尺寸：86毫米* 86毫米* 40毫米（外部固定）
安装孔与标准接线盒相距60 mm
服务
可用于客户化，ODM和OEM。
| 感应元件 | NTC | 温度设定范围 | 10〜40ºcºcdm;CºC |
| 电源电压 | ac220v±15％50 / 60hz％50 / 60hz 50/60Hz | 温度显示范围 | 0〜60ºcºcdm;CºC |
| 负载电流 | 6A（感性负载）16A（电阻负载） | 操作环境 | 0〜50ºcºcdm;CºC |
| 自耗电 | <1W | 准确性 | ±1ºCusmn; 1℃dm;Cusmn; 1ºC |
| 横截面面积 | 0.5〜4平方米up2;m² | 相对湿度 | 90％RH下 |
| 保护范围 | IP30 | 壳材料 | abs + pc |
| Model NO. | HS-DM810B |
| Floor Heating | Thermostat |
| Control Type | Digital |
| Display Type | LCD |
| Trademark | HS |
| Specification | ISO CE ROHS |
| HS Code | 9032100000 |
| Certification | TUV, Ce, CCC, UL |
| Usage | Air Conditioner, Drying Equipment, Refrigerator |
| Type | Temperature Controller |
| Material | ABS+PC |
| Transport Package | Standard Export Packing |
| Origin | Qingdao |
Product Description
HS-D/M810 series digital thermostat appearance luxury, large screen LCD display, imported microcomputer control technology, which can realize four times a day, 7 days week programming function. Through internal thermostat NTC temperature sensor detect indoor temperature and real-time comparing with the temperature by the user set.Automatically open or close the pipe electric valve, to achieve the purpose of keeping the room thermostat.
Scope of Application
HS-D/M810 series digital temperature controller is suitable for the floor heating, water heating, electric heating equipment (electrothermal film, heating cable, electric heaters, resistance wire, carbon crystal plate).
Product features
1 Recommended for control of underfloor heating and electrical heating.
2. Electronic on/off control up to 3000W, 16A or 5000W, 20A
3. Six daily programmable time settings, from Mondays to Sundays
4. Large Back-lit display, LED screen, easy-to-see and read
5. Infrared remote-controlled function(option)
6. Built-in interrupter
7. Two work mode switchover: (programmable, non programmable)
8. Display temperature recalibrates
9. Low temperature protection function
10. Surveys, display and set room temperature
11. Memory function: Parameters are permanently held in memory and retained during power outages
12. Anti-freezing protection
13.2-sensor: Room sensor with floor limiter sensor
Technical instructions
Shell Material: ABS + PC alloy (flame retardant)
Negative Inductive Load: 220v 6A
Impedance Load: 220v 16A
Shape Size: 86 mm * 86 mm * 40 mm (External fixed)
Mounting hole is apart from the standard junction box 60 mm
Services
Available in customerization, ODM and OEM.
HS-D/M810 series digital thermostat appearance luxury, large screen LCD display, imported microcomputer control technology, which can realize four times a day, 7 days week programming function. Through internal thermostat NTC temperature sensor detect indoor temperature and real-time comparing with the temperature by the user set.Automatically open or close the pipe electric valve, to achieve the purpose of keeping the room thermostat.
Scope of Application
HS-D/M810 series digital temperature controller is suitable for the floor heating, water heating, electric heating equipment (electrothermal film, heating cable, electric heaters, resistance wire, carbon crystal plate).
Product features
1 Recommended for control of underfloor heating and electrical heating.
2. Electronic on/off control up to 3000W, 16A or 5000W, 20A
3. Six daily programmable time settings, from Mondays to Sundays
4. Large Back-lit display, LED screen, easy-to-see and read
5. Infrared remote-controlled function(option)
6. Built-in interrupter
7. Two work mode switchover: (programmable, non programmable)
8. Display temperature recalibrates
9. Low temperature protection function
10. Surveys, display and set room temperature
11. Memory function: Parameters are permanently held in memory and retained during power outages
12. Anti-freezing protection
13.2-sensor: Room sensor with floor limiter sensor
Technical instructions
Shell Material: ABS + PC alloy (flame retardant)
Negative Inductive Load: 220v 6A
Impedance Load: 220v 16A
Shape Size: 86 mm * 86 mm * 40 mm (External fixed)
Mounting hole is apart from the standard junction box 60 mm
Services
Available in customerization, ODM and OEM.
| Sensing element | NTC | temperature setting range | 10~40ºCºCdm;CºC |
| Power voltage | AC220V±15% 50/60Hz% 50/60Hz 50/60Hz | Temperature display range | 0~60ºCºCdm;CºC |
| Load Current | 6A (Inductive Load) 16A (Resistive Load) | Operation environment | 0~50ºCºCdm;CºC |
| Self-Power consumption | <1W | Accuracy | ± 1ºCusmn; 1ºCdm;Cusmn; 1ºC |
| Cross-sectional area | 0.5 ~ 4mm²m²up2;m² | Relative humidity | 90%RH |
| Protect range | IP30 | Shell material | ABS + PC |
