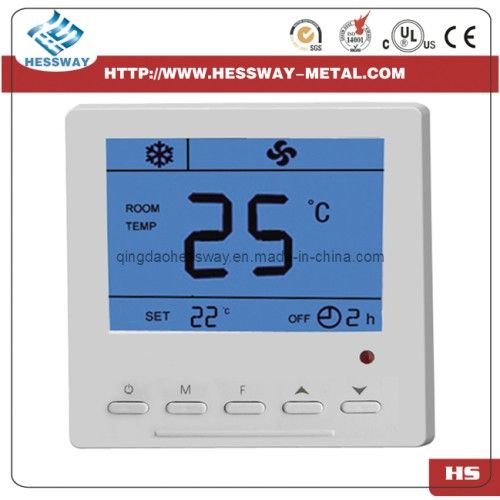

Digital LCD Display Thermostat for Central Airconditioning (HS-W301)
中央空调数字液晶显示温控器（HS-W301）
| 型号。 | HS-W301 |
| 商标 | HS |
| 规范 | iso ce rohs |
| HS编码 | 9032100000 |
| 恒温器 | 聪明 |
| 运输包装 | 标准出口包装 |
| 起源 | 山东 |
产品描述
HS-W301电室恒温器独特设计，操作简单。超豪华的外观，LED背光触摸键以及LCD显示屏显示室温，设定温度，风扇转速和时间。它控制风扇转速或电动冷热开关，理想用于安装两个或四个管道的中心空调。
特征
红外遥控器
三档风扇速度智能控制，带冷却，加热和自动模式
LED背光控制键，即使在黑暗中也能轻松识别
节能高达30％
规范
RS485接口（选件）
除霜（低温保护）
辅助电加热功能（可选）
时钟，睡眠和定时器（选项）
红外遥控器（可选）
蓝色背光（可选）
工作状态：酷，热，风
感应元件 | NTC | 电源 | 交流220v±10％，50 / 60hz 50 / 60hz 50/60Hz |
| 准确性 | ±1ºCsmn; 1℃rdm;Csmn; 1ºC | 切换电流额定值 | 电阻：3A，电感：1A |
| 温度设定范围 | 10ºC〜40ºC〜40ºCrdm;C~ 40ºC | 额定功率 | <1 W |
| 显示范围 | 0〜60ºCordm; C ^ordm;C | 布线 | 螺丝端子，每个端子都可以 |
| 接受2 x 1.5 mm 2或1 x 2.5 mm 2线 | |||
| 操作环境 | 0〜45ºCordm; C ^ordm;C | 住房 | ABS + PC阻燃剂 |
| 工作湿度 | 5〜90％RH（无冷凝） | 防护等级 | IP30 |
| 显示 | 液晶显示 | 外形尺寸 | 86×86×13mm（w×h×d）（w×h×d） × D )( W × H × D ) |
| Model NO. | HS-W301 |
| Trademark | HS |
| Specification | ISO CE ROHS |
| HS Code | 9032100000 |
| Thermostat | Smart |
| Transport Package | Standard Export Packing |
| Origin | Shandong |
Product Description
HS-W301 Electric room thermostat is featured by unique design and simple operation. Super-luxurious appearance, LED backlight touch keys as well as LCD display showing the room temperature, setting temperature, fan speed and time. It controls the fan speed or electrical cool and heat valve switch and ideal for places installed two or four pipes central air-condition.
Features
IR remote controllable
Three grades fan speed intelligent controlled with cooling, heating and auto mode
LED backlight control keys, easy identification even in darkness
Energy saving up to 30%
Specification
RS485 interface (Option)
Defrost (low temperature protection)
Auxiliary electrical heating function(Option)
Clock, Sleep and Timer (Option)
IR remote control (Option)
Blue Backlight (Option)
Working Status: Cool, hot, wind
Sensing element | NTC | Power supply | AC 220V±10%, 50/60Hz 50/60Hz 50/60Hz |
| Accuracy | ± 1ºCsmn; 1ºCrdm;Csmn; 1ºC | Switch current rating | Resistive: 3A, Inductive: 1A |
| Temperature setting range | 10ºC ~ 40ºC~ 40ºCrdm;C~ 40ºC | Rated Power | <1 W |
| Display range | 0~60ºCordm;Cordm;C | Wirings | Screw-in terminals, each terminal capable of |
| accepting2 x 1.5 mm 2 or 1 x 2.5 mm 2 wires | |||
| Operation environment | 0~45ºCordm;Cordm;C | Housing | ABS + PC Flame Retardant |
| Operating Humidity | 5~90%RH (non-condensing) | Protection Class | IP30 |
| Display | LCD | Dimensions | 86 × 86 × 13 mm ( W × H × D )( W × H × D ) × D )( W × H × D ) |
