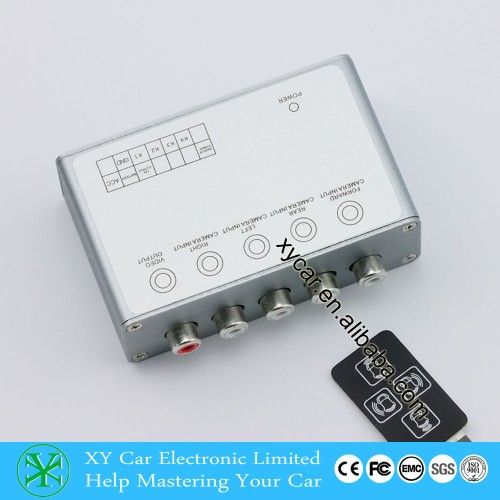

4通道输入专用于12V汽车摄像机控制箱，盲点辅助360观察摄像系统，每个摄像头配有镜面开关，帮助停车和实时监控
描述：
4路摄像机视频由1个组合开关控制
可以选择前/后/左/右每个摄像机视频
监控车盲区。
帮助驾驶安全。
产品功能
便于摄像机视频选择和切换。
高品质相机视频。
简单的电线连接。
可以为所有相机或显示器提供+ 12V直流电源。
当没有相机触发时，自动关闭所有相机或显示器电源。
保护相机和显示器不用工作。
易于安装在汽车上
产品规格：
工作电流：10mA
工作电压：12V DC（8V〜16V）
重量：120g
系统信号：PAL / NTSC
视频输出：1.0VPP /75Ω
工作温度：-20〜80℃
工作温度：-40〜85℃
功能：
起动和倒车时完成自动前视图
当汽车发动机启动时，系统将激活汽车监视器并显示前置摄像机视图10秒钟，然后关闭。
倒车后，系统将激活汽车监视器并显示前置摄像机视图10秒钟（仅当重新启动触发线连接时），然后关闭。
自动后视图：
当您拉动倒档（反向触发线连接）时，系统将启动显示器并显示后置摄像机视图，直到倒车档位。
前/后视图控制：
按前/后控制开关，汽车监视器将显示前/后摄像机视图10秒钟，然后关闭。
侧视图控制：
按左/右控制开关，汽车监视器将显示左/右相机视图10秒钟，然后关闭。
5.系统关机：
上次控制按钮按下并反转完成后，系统将自动关闭10秒钟。
用户也可以在10秒钟内关闭系统，再次按相应按钮（反转未触发）。
相机显示优先：
最后按下开关相机具有优先权（当反转未触发时）。
当反转线被触发时，后视摄像机具有最高优先级。
打包清单：
控制箱* 1PCS
适配电缆与组合控制开关* 1PCS
用户手册* 1PCS

================================================== ===========================欢迎所有客户选择我们的工厂，并快乐与所有海外业务
注意事项：我们严格的生产工艺，老化试验和质量控制，确保高品质生产。
我们建立了防水，防震，耐温性，
耐湿性，高清晰度。
竞争优势
质量稳定（CE FCC ROHS）
2.最有竞争力的价格
准时交货
良好的售后服务
5.所有产品必须逐个测试耐摔和耐高低温性能
6.保修期：16个月
7. OEM，ODM欢迎
广州X＆Y电子有限公司于2005年在广州成立，是一家从事汽车摄像机系统，车载DVR摄像机研发，生产和销售的高新技术企业。我们保证准时交货，有竞争力的价格和及时的回应。我们欢迎您的询问，并期待在不久的将来与您建立长期的业务关系。r future.
------------------------------------------------------------------------------------------------------------------------------
公司电话：+ 86-20-29036269
公司传真：+ 86-20-87003595
公司名称：广州兴和电子有限公司 Ltd.
网址：http：//www.xyglobal.cn

4 channel input special for 12V car cameras control box ,blind spot assist 360 view camera system,with mirror switch for each camera,help parking and realtime monitoring
Description:
4 channel camera video controled by 1 combined switch
Front/Rear/Left/Right each camera video could be sellected
To monitoring the car blind area.
Help driving safely.
Product feature
Easy for camera video selecting and switching.
High quality camera video.
Simple for wire connection.
Could supply +12V DC power to all the cameras or monitor.
Automatically shut down all the camera or monitor power when no camera triggered.
Protect cameras and monitor from long time working.
Easy to install on cars.
Specifications:
Working current: 10mA
Working voltage: 12V DC (8V~16V)
Weight: 120g
System signal: PAL/NTSC
Video output: 1.0VPP/75Ω
Working temperature: -20~80
Operation Temperature: -40~85
Functions:
1. Automatical front view when starting and reversing finished:
When car engine starts, the system will activate the car monitor and display the front camera view for 10 seconds, then turn off.
After reversing, the system will activate the car monitor and display the front camera view for 10 seconds(only when revserse trigger wire connected), then turn off.
2. Automatically rear view:
When you pull the reverse gear (reverse trigger wire connected), the system will activate the monitor and display rear camera view till the reverse gear back.
3. Front/Rear view control:
Press the Front/Rear control switch, car monitor will display the Front/Rear camera view for 10 seconds, then turn off.
4. Side view control:
Press the Left/Right control switch, car monitor will display the Left/Right camera view for 10 seconds, then turn off.
5. System shut down:
The system will automatically shut down 10 seconds after the last control button pressed and reversing finished.
User could also shut down the system within 10 seconds, by press the corresponding button again(when reversing not triggered).
Camera display priority:
Last pressed switch camera has the priority(when reversing not triggered).
When reversing wire is triggered, rear view camera has the highest priority.
Packing list:
Control box * 1PCS
Adapt cable with combined control switch*1PCS
User's manual *1PCS
