4分割视频切换控制箱车载DVR XY-6029DVR
4通道输入专用于12〜24V车载摄像头控制箱，盲点辅助360观察摄像系统，可以在“H”屏幕显示专用车辆，帮助停车和实时监控
4分割视频开关视野控制箱（XY-6029）
首先，非常感谢您使用我们的停车系统！
四智能停车系统为您的汽车盲点图像透视，为您的安全驾驶护送。请享用
驾驶，驾驶没有盲点体验无死路的感觉。
这个高端停车场系统结合业主驾驶习惯开发出具有成本效益的
汽车安全产品更适合业主使用。
该停车系统是根据道路状况驾驶员的操作习惯，手动和自动控制
将显示视频分析。
IPS>>
1.本产品只是驾驶辅助系统，专注于安全驾驶。
2.在使用本产品之前，请阅读详细说明。
3.汽车在快速驾驶中，建议关闭本产品，集中观察道路状况。
请自觉遵守与国家有关的交通法律法规。
TEM>>
四路智能停车系统安装不会破坏原车回路，不会影响安全
汽车电路，不影响车辆保修4S店的情况。
本产品有前，左，右，后四个功能，可根据驾驶员的要求
需要驾驶环境，监控汽车周围的情况;两个具有自动和手动控制
模式下，出厂默认自动模式
描述
（1）电源指示灯，电源指示灯亮起，当电压低于9v时，电源指示灯闪烁;系统时
进入待机模式，电源指示灯闪烁。本产品的正常输入电压为12 / 24V。
（2）触发线和手动键可以任意方式选择图像4路摄像头
（3）在触发状态下，有效地移动键。当您按手动键“Quad”或按钮或按钮时，
触发无效，撤消“QUAD”触发器有效
（4）触发撤销后，镜像延迟3秒，进入待机状态。
（5）触发条件，无优先级，当触发线超过两个触发时，则触发线
相应的频道全屏图像，只有三秒钟，然后跳转自动分割图像屏幕。
（6）最多可连接四台摄像机，并自动分割视频屏幕
（7）汽车摄像头由设备供电，便于接线
（8）DVD显示设备由开关触发，布线和显示方便
（9）每个图像可以分别设置为转发/镜像，RCA连接器可以配置为连接
dvr / vcd
II。屏幕模式
自动模式引入:(数字表示相应的摄像机通道号，通道
号码未显示）
--------------------------------------------------------------------------------------------------------
欢迎所有客户选择我们的工厂，并快乐与所有海外业务
注意事项：我们严格的生产工艺，老化试验和质量控制，确保高品质生产。
我们建立了防水，防震，耐温性，
耐湿性，高清晰度。
竞争优势
质量稳定（CE FCC ROHS）
2.最有竞争力的价格
准时交货
良好的售后服务
5.所有产品必须逐个测试耐摔和耐高低温性能
6.保修期：16个月
7. OEM，ODM欢迎
广州X＆Y电子有限公司于2005年在广州成立，是一家从事汽车摄像机系统，车载DVR摄像机研发，生产和销售的高新技术企业。我们保证准时交货，有竞争力的价格和及时的回应。我们欢迎您的询问，并期待在不久的将来与您建立长期的业务关系。r future.
------------------------------------------------------------------------------------------------------------------------------

公司电话：+ 86-20-29036269 + 86-20-29011872

公司名称：广州兴和电子有限公司 Ltd.

网址：http：//www.xyglobal.cn

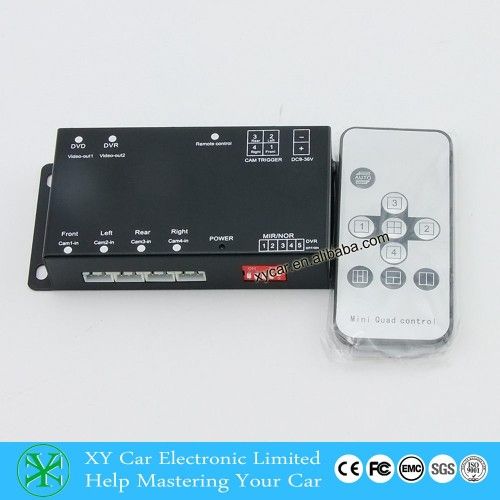

4 Split Video Switch Control Box Car Mobile DVR XY-6029DVR
4 channel input special for 12~24V vehicle cameras control box ,blind spot assist 360 view camera system,can display in 'H' screen special for vehicle,help parking and realtime monitoring
4 Split Video Switch Aroundview Control Box (XY-6029)
First of all, thank you very much for using our parking system!
Quad intelligent parking system for your car blind spot image perspective, for your safe driving escort. Enjoy
driving, driving without a blind spot to experience the feeling of no dead ends.
This high-end car parking system combined with the owners driving habits developed a cost-effective
automotive safety products more suited to the owners use.
This parking system is based on road conditions the driver's operating habits, manual and automatic control of
the video analysis is displayed.
ips>>
1. This product is only driving assistance system, you concentrate on safe driving.
2. Before using this product, please read the detailed instructions.
3. car in the fast driving, the proposed closure of this product, concentrating observe road conditions.
4. Please consciously abide by traffic laws and regulations relevant to the country.
tem>>
Quad intelligent parking system installation does not destroy the original car circuit, will not affect the safety
car circuit, does not affect the vehicle warranty 4S shop situation.
This product has a front, left side, as the right side, rear four functions, the driver can according to the
required driving environment, monitoring the situation around the car; two with automatic and manual control
mode, when the factory default automatic mod
Description
(1) Power Led, Power, the lights lit, when the voltage is lower than 9v, the power light flashes; when the system
enters standby mode, the power light flashes. This product is the normal input voltage of 12 / 24V.
(2) trigger line and manual keys can select the image in any way 4-way camera
(3)In Trigger state, hand the keys effectively. When you press the manual key 'Quad' of or button, or button,
the trigger is invalid, Undo 'QUAD' trigger to be effectivee effective
(4) After triggering undo, image delay three seconds, and enters the standby state.
(5) the trigger condition, no priority, when the trigger line when more than two trigger, then the trigger line
corresponding channel full-screen image, only three seconds, and then jumps automatically split image screen.
(6) can connect up to four cameras, and automatically split video screen
(7) car camera powered by the device for easy wiring
(8) DVD display device triggered by a switch, wiring and display convenience
(9) Each image can be set to forward / mirroring respectively, RCA connectors can be configured to connect
DVR / VCD
II.the screen mode
Auto Mode introduces :( numbers represent the corresponding camera channel number, the channel
number is not shown)
--------------------------------------------------------------------------------------------------------
Welcomes All Customers Vistor Our Factory and Happy to do Business with all overseas
Note: We have strict producing process, aging test and QC to make sure high quality production.
We have established systematic production standard in waterproof, shockproof, temperature resistance,
Humidity resistance, high definition.
Competitive advantage
1. Stable quality (CE FCC ROHS)
2. Most competitive price
3. On time delivery
4. Good aftersales service
5. All products must test one by one wartproof resistance and high/low temperature resistance
6. Warranty: 16months
7. OEM, ODM welcome
Guangzhou X&Y Electronics Co., Ltd. Was established in Guangzhou in 2005. We are a hi-tech enterprise engaged in the R&D, production, and sale of car camera system, car DVR camera. We guarantee punctual delivery, competitive price and prompt response. We welcome your inquiries and look forward to establishing long-term business relationships with you in the near future.ar future.r future.
------------------------------------------------------------------------------------------------------------------------------

Company Phone: +86-20-29036269 +86-20-29011872

Company Name: Guangzhou X&Y Electronic Co., Ltd. Ltd. Ltd.

Website: http://www.xyglobal.cn
