产品介绍
访问控制面板为离线网络中的强大的访问控制和报警监控组合提供了解决方案。用户友好的Access软件可以在数分钟内从非专用PC程序对系统进行编程.Access软件提供了大量访问控制和报警监控功能：俱乐部有效期限，自动启动，两门互锁，时区，监控，反传回，活动报告...每个报警输入可编程：运行模式（NO或NC），时区，局部反射（根据输入状态激活输出）根据不成功的尝试次数，门关闭时间限制（门报警），胁迫代码触发特定报警。只要需要，存储在控制器中的数据被传送打印计算机和活动报告。每个控制器独立工作并保存自己的数据库。
参数索引：

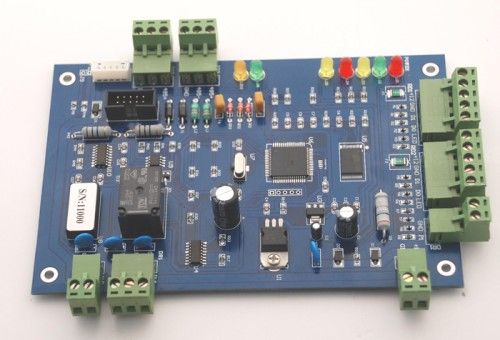

PCB板尺寸：160mm长* 106mm宽
表壳尺寸：273mm * 228mm * 65mm
供电电压：12VDC 4-7A
电路板功耗：小于100mA
读卡器输入格式：Wiegand 26（兼容所有读者根据协议，如摩托罗拉，HID，EM，Mifare等）。
通讯方式：RS232 RS485无跳线自适应9600波特率
功能说明：可以控制一扇门，通过卡片滑动进入，通过卡片切换或按钮退出
读者数量：2PCS
可控制门输出继电器：1对
打开延时时间：1-600秒可调
最大连接数：N * 256 PCS（N表示计算机串口的数量，支持256PCS串行端口）
工作温度：-40至70摄氏度
运行湿度：10-90％RH，无冷凝
信号输出通信格式和波特率：RS232 RS485自适应自检总线架构，9600波特率
用户注册卡数量：20万张卡权限
记录离线存储的数量：100 000条记录
电源故障保护措施：高速闪存设计，永不丢失数据
读卡器与控制器之间的最大距离：100米，建议在80米以内，总线最大距离：1200米，建议在1000米以内，扩建设备总线可达3000米
控制器与PC之间的最大距离：232模式，20 m（推荐3 m）485模式，1200 m，建议在1000m以内，扩充设备总线可达3000米

Product Introduction
The Access Control Panel provide the solution for powerful combinations of access control and alarm monitoring within off-line networks.The user-friendly Access software programs the system within a few minutes, from a non-dedicated PC.Access Software provides numerous access control and alarm monitoring features:Expiry date for clubs, automatic activation, interlock between two doors, time zones, supervision, anti-passback, activity reports...Each alarm input is programmable:Operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status).Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code...Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed.Each controller works independently and keeps its own database.
Parameter index:
PCB board size:160mm long * 106mm wide
Case Size:273mm * 228mm * 65mm
Powersupply:12VDC 4-7A
Circuit board power consumption:Less than 100mA
Reader Input Format:Wiegand 26 (compatible with all readers under the agreement, such as Motorola, HID, EM, Mifare one, etc.).
Means of communication:RS232 RS485 jumper-free adaptive 9600 baud
Function Description:Can control one door, enter via card swiping and exit via card swipping or button
Quantity of reader:2PCS
Can control the gate output relay:1pair
Open delay time:1-600 seconds adjustable
Maximum number of connections:N * 256 PCS (N denotes the q'ty of computer serial port, support 256PCS serial port)
Operating temperature:-40 to 70 degrees Celsius
Run Humidity:10-90% RH, non-condensing
Signal output communication format and baud rate:RS232 RS485 adaptive self-test bus architecture, 9600 baud
User registration card q'ty:20, 000 cards Permissions
Record the number of offline storage:100, 000 records
Power failure protection measures:High-speed flash memory design, and never lose data
Max distance between reader to the controller:100 meters, suggest within 80 meters, Max distance for the bus line:1200 m, suggest within 1000 m, with expansion equipment the bus line can reach up to 3000 meters
Max distance between controller to the PC:232 mode, 20 m (recommended 3 m) 485 mode, 1200 m, suggest within 1000m, with expansion equipment the bus line can reach up to 3000 meters
