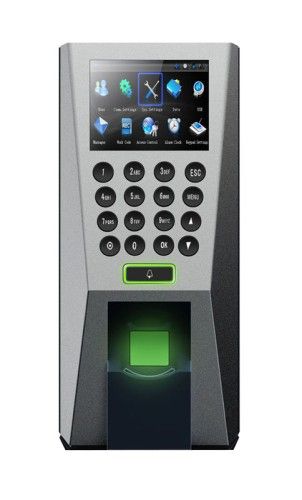

Reliable Innovative Biometric Fingerprint Access Controller (FAC18) with TFT-LCD
可靠的创新生物指纹访问控制器（FAC18）与TFT-LCD
议价
加入意向| 型号。 | fac18 |
| 用法 | 访问控制器 |
| 起源 | 中国 |
| 类型 | 指纹 |
| 规范 | ce，fcc |
介绍
FAC18是用于访问控制应用的创新生物识别指纹识别器，提供无与伦比的性能，使用先进的算法实现可靠性，精度和出色的匹配速度.F18具有最快的商业指纹匹配算法和高性能，高图像质量的光学指纹传感器。设备F18提供独立安装的灵活性，或任何支持26位Wiegand的第三方面板。所有操作都可以在TFT-LCD上完成。指纹图像显示在屏幕上，指导用户将手指放在正确的位置，增加识别率。
TCP / IP和RS232 / 485可用于不同的网络设备.TCP / IP通信确保设备和PC之间的数据传输可以在几秒钟内轻松完成。
特征：
指纹读卡器具有耐用和高精度的光学传感器
1触摸一秒用户识别
商店1,500个模板，5万张卡和30,000笔交易
读取指纹和/或卡
可选集成感应卡或智能卡读卡器
内置串行和以太网端口
防篡改开关和报警输出
请求退出和报警输出
验收和拒绝有效/无效手指的视听指示
技术规格
指纹容量：1,500个模板
交易量：30,000
传感器：光学传感器算法版本：Finger V10.0
通讯：RS232 / 485，TCP / IP，USB主机
门禁控制接口：第三方电锁，门传感器，出门按钮，报警器，门铃
韦根信号：输出和输入
显示屏; TFT液晶屏
标准功能：门铃，反吸收器，Webserver，DLST
可选功能：身份证，Mifare卡
电源：12V DC
工作温度：0-45度
工作湿度：20％-80％
FAC18是用于访问控制应用的创新生物识别指纹识别器，提供无与伦比的性能，使用先进的算法实现可靠性，精度和出色的匹配速度.F18具有最快的商业指纹匹配算法和高性能，高图像质量的光学指纹传感器。设备F18提供独立安装的灵活性，或任何支持26位Wiegand的第三方面板。所有操作都可以在TFT-LCD上完成。指纹图像显示在屏幕上，指导用户将手指放在正确的位置，增加识别率。
TCP / IP和RS232 / 485可用于不同的网络设备.TCP / IP通信确保设备和PC之间的数据传输可以在几秒钟内轻松完成。
特征：
指纹读卡器具有耐用和高精度的光学传感器
1触摸一秒用户识别
商店1,500个模板，5万张卡和30,000笔交易
读取指纹和/或卡
可选集成感应卡或智能卡读卡器
内置串行和以太网端口
防篡改开关和报警输出
请求退出和报警输出
验收和拒绝有效/无效手指的视听指示
技术规格
指纹容量：1,500个模板
交易量：30,000
传感器：光学传感器算法版本：Finger V10.0
通讯：RS232 / 485，TCP / IP，USB主机
门禁控制接口：第三方电锁，门传感器，出门按钮，报警器，门铃
韦根信号：输出和输入
显示屏; TFT液晶屏
标准功能：门铃，反吸收器，Webserver，DLST
可选功能：身份证，Mifare卡
电源：12V DC
工作温度：0-45度
工作湿度：20％-80％
| Model NO. | FAC18 |
| Usage | Access Controller |
| Origin | China |
| Type | Fingerprint |
| Specification | CE, FCC |
Introduction
FAC18 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed.The F18 features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality optical fingerprint sensor.The device F18 offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand.All the operation can be done on the TFT-LCD.The fingerprint image is displayed on the screen, that will guide the user to put the finger on to proper positioin and increase the recognition rate.
TCP/IP and RS232/485 are available that the device can be used in different network.TCP/IP communication makes sure the data transmission between the device and the PC can be easily done within several seconds.
Features:
Fingerprint reader with durable and highly accurate optical sensor
1 touch a-second user recognition
Stores 1, 500 templates, 5, 000 cards and 30, 000 transactions
Reads Fingerprint and/or Card
Optional integrated proximity card or smart card reader
Built-in Serial and Ethernet ports
Tamper-proofs switch and alarm outputs
Request-to-exit and alarm outputs
Audio-Visual indications for acceptance and rejection of valid/invalid fingers
Technical Specification
Fingerprint Capacity:1, 500 templates
Transaction Capacity:30, 000
Sensor:Optical SensorAlgorithm Version:Finger V10.0
Communications:RS232/485, TCP/IP, USB-host
Access Control Interface for:3rd party electric lock, door sensor, exit button, alarm, Door Bell
Wiegand Signal:Output and Input
Display;TFT LCD Screen
Standard Functions:Door Bell, Antipass-back, Webserver, DLST
Optional Functions:ID card, Mifare card
Power Supply:12V DC
Operating Temperature:0-45 degree
Operating Humidity:20%-80%
FAC18 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed.The F18 features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality optical fingerprint sensor.The device F18 offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand.All the operation can be done on the TFT-LCD.The fingerprint image is displayed on the screen, that will guide the user to put the finger on to proper positioin and increase the recognition rate.
TCP/IP and RS232/485 are available that the device can be used in different network.TCP/IP communication makes sure the data transmission between the device and the PC can be easily done within several seconds.
Features:
Fingerprint reader with durable and highly accurate optical sensor
1 touch a-second user recognition
Stores 1, 500 templates, 5, 000 cards and 30, 000 transactions
Reads Fingerprint and/or Card
Optional integrated proximity card or smart card reader
Built-in Serial and Ethernet ports
Tamper-proofs switch and alarm outputs
Request-to-exit and alarm outputs
Audio-Visual indications for acceptance and rejection of valid/invalid fingers
Technical Specification
Fingerprint Capacity:1, 500 templates
Transaction Capacity:30, 000
Sensor:Optical SensorAlgorithm Version:Finger V10.0
Communications:RS232/485, TCP/IP, USB-host
Access Control Interface for:3rd party electric lock, door sensor, exit button, alarm, Door Bell
Wiegand Signal:Output and Input
Display;TFT LCD Screen
Standard Functions:Door Bell, Antipass-back, Webserver, DLST
Optional Functions:ID card, Mifare card
Power Supply:12V DC
Operating Temperature:0-45 degree
Operating Humidity:20%-80%
