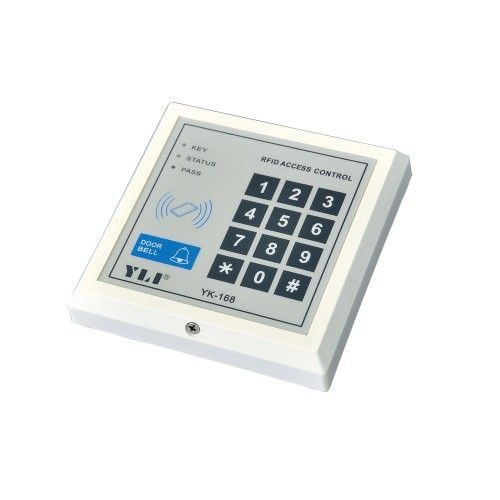

ID Card+Digital Keypad Access Controller (EL-168) for Power Door Lock
ID卡+数字键盘访问控制器（EL-168）用于电动门锁
议价
加入意向| 型号。 | EL-168 |
| 类型 | 卡 |
| 商标 | 华科 |
| 起源 | 中国 |
| 访问控制 | 卡 |
| 用法 | 访问控制器，访问机 |
| 规范 | CE |
介绍：
YK-168是一款专为电动门锁设计的门禁系统，安全系统，键盘可以读卡而不用触摸，也可以用数字键盘进行设计。您可以通过三种不同的方式打开门：用导入门打开门
产品规格：
产品参数参数说明
Dimensions117Lx117Dx21W（毫米）
工作电压12VDC
当前排水<30mA30mA
继电器输出触点NO和NC干触点，最大接触电流3A / 24VDC
记录容量250ID卡，250代码或1个通用代码
读卡距离最远距离5cm
ID卡类型，125KHZ
操作模式ID卡操作，数字代码操作，ID卡+数字代码操作
工作温度-20°C-60°C60°Cg; C60° C
工作湿度10％-90％
Weight0.14kg
优点：
简单编程，操作简便。采用块功能稳定读卡器。键盘锁定30秒后10个错误的条目。可连接门开门和门铃。电源故障中的非易失性存储器。防拆开关可以连接到安全报警系统。
YK-168是一款专为电动门锁设计的门禁系统，安全系统，键盘可以读卡而不用触摸，也可以用数字键盘进行设计。您可以通过三种不同的方式打开门：用导入门打开门
产品规格：
产品参数参数说明
Dimensions117Lx117Dx21W（毫米）
工作电压12VDC
当前排水<30mA30mA
继电器输出触点NO和NC干触点，最大接触电流3A / 24VDC
记录容量250ID卡，250代码或1个通用代码
读卡距离最远距离5cm
ID卡类型，125KHZ
操作模式ID卡操作，数字代码操作，ID卡+数字代码操作
工作温度-20°C-60°C60°Cg; C60° C
工作湿度10％-90％
Weight0.14kg
优点：
简单编程，操作简便。采用块功能稳定读卡器。键盘锁定30秒后10个错误的条目。可连接门开门和门铃。电源故障中的非易失性存储器。防拆开关可以连接到安全报警系统。
| Model NO. | EL-168 |
| Type | Card |
| Trademark | HUAKE |
| Origin | China |
| Access Control | Card |
| Usage | Access Controller, Access Machine |
| Specification | CE |
Introduction:
YK-168 is an access control designed for power door lock as well as security system, and the keypad can read the card without touching it, it is also designed with numeric keypad. You can open the door in three different ways: Open the door with induct
Specifications:
Product ParameterParameter Description
Dimensions117Lx117Dx21W(mm)
Operating Voltage12VDC
Current Drain<30mA30mA
Relay Output ContactsNO and NC Dry Contact, Max Ratin of Contact Current 3A/24VDC
Capacity of Recording250ID Cards, 250Codes or 1 Common Code
Card Reading DistanceMax Distance 5cm
Type of ID CardEM card, 125KHZ
Operation ModeID Card Operation, Digital Code Operation, ID Card+Digital Code Operatio
Operating Temperature-20° C-60° C60° Cg; C60° C
Operating Humidity10%-90%
Weight0.14kg
Advantage:
Simple Programming, Easy Operation. Adopt function steady card reader of blocks. Keypad Locks for 30 Seconds After 10 False Entries. Can be Connected with Door-open Button and Doorbell. Non-volatile Memory in Power Failure. Tamper Switch can be Connected to Security Alarm System.
YK-168 is an access control designed for power door lock as well as security system, and the keypad can read the card without touching it, it is also designed with numeric keypad. You can open the door in three different ways: Open the door with induct
Specifications:
Product ParameterParameter Description
Dimensions117Lx117Dx21W(mm)
Operating Voltage12VDC
Current Drain<30mA30mA
Relay Output ContactsNO and NC Dry Contact, Max Ratin of Contact Current 3A/24VDC
Capacity of Recording250ID Cards, 250Codes or 1 Common Code
Card Reading DistanceMax Distance 5cm
Type of ID CardEM card, 125KHZ
Operation ModeID Card Operation, Digital Code Operation, ID Card+Digital Code Operatio
Operating Temperature-20° C-60° C60° Cg; C60° C
Operating Humidity10%-90%
Weight0.14kg
Advantage:
Simple Programming, Easy Operation. Adopt function steady card reader of blocks. Keypad Locks for 30 Seconds After 10 False Entries. Can be Connected with Door-open Button and Doorbell. Non-volatile Memory in Power Failure. Tamper Switch can be Connected to Security Alarm System.
