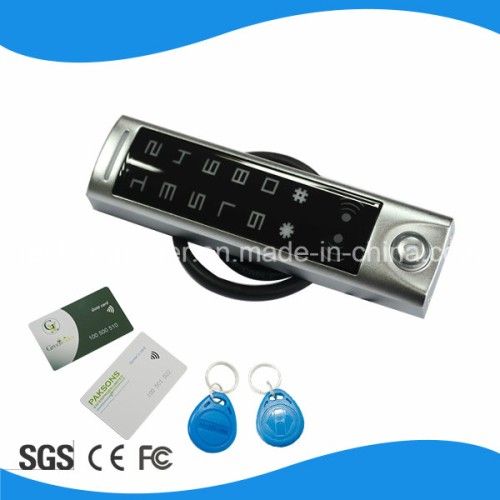

Wiegand RFID Access Control Reader with Touch Panel
Wiegand带有触摸屏的RFID访问控制读取器
议价
加入意向| 型号。 | Touch-S门禁读卡器 |
| 键盘按钮材质 | 个人计算机 |
| 证明 | rohs，sgs，fcc，ce |
| 结构材料 | 铝合金 |
| 卡频率 | 在125kHz |
| 门铃机械寿命 | 超过100万次 |
| 键盘传输格式 | 4位，8位和虚拟卡号 |
| 运输包装 | 箱子和纸箱 |
| 起源 | 深圳 |
| 访问控制 | 卡+针 |
| IP等级 | IP66防水 |
| 外形尺寸 | 158X43X21.7mm |
| 阅读类型 | 卡，针或卡+针验证 |
| 读卡距离 | 最大40mm |
| 卡传输格式 | 26-37位 |
| 商标 | Techcrepower |
| 规范 | CE |
带触摸屏的Wiegand RFID门禁读卡器
产品规格：
铝合金结构
2.触摸面板背光键盘
威格26-37
4.IP66防水
5.访问控制
主要特点：
Touch-S是我们新一代RFID和PIN金属门禁控制，采用非常新的时尚风格设计。这是自发行市场以来的命中！它允许通过PIN /和/或通过呈现接近EM，IC或CPU卡进入。卡。card.
它是铝合金结构，防水，完全灌封，确认为IP66，触摸面板，数字背光键，背光可以设置为正常ON，正常关闭或自动模式，非常热销市场！
门禁读卡器规格：
我们的优势
1.专业研发部门，可以为您提供OEM / ODM服务;恶习;ices;
专业技术支持和良好的服务;
我们严格控制质量，把它视为存在的基础！ QC员工对所有产品进行逐件检查。
产品进行老化试验72小时。
我们的产品选用优质材料，确保前期的稳定性。
我们的产品符合ISO，CE，FCC，RoHS证书;
我们的目标
以“一店购”为理念，提供具有成本效益的产品和及时的服务，实现双赢合作！合作！
如何付款
按T / T，贝宝，西联，Moneygram，L / C。
如何交付
快速方式：通过快递，例如DHL，Fedex，UPS，TNT，EMS ...大约需要3-7天。 2.便宜的方式（小包）：由中国邮政，约15-70天。 3.便宜的方式：乘飞机或海上运输重物和大货。
保修
我们从交付之日起提供1〜2年保修期，但终身技术支持。
产品规格：
铝合金结构
2.触摸面板背光键盘
威格26-37
4.IP66防水
5.访问控制
主要特点：
Touch-S是我们新一代RFID和PIN金属门禁控制，采用非常新的时尚风格设计。这是自发行市场以来的命中！它允许通过PIN /和/或通过呈现接近EM，IC或CPU卡进入。卡。card.
它是铝合金结构，防水，完全灌封，确认为IP66，触摸面板，数字背光键，背光可以设置为正常ON，正常关闭或自动模式，非常热销市场！
门禁读卡器规格：
产品参数 | 参数说明 |
工作电压范围 | dc12-21v |
空闲输入电流 | ≤35mA35mA35mA |
最大感应卡读取范围 | EM卡：3-6cm> IC或CPU（MF）卡：2-6cm-6cm |
励磁频率 | 在125kHz |
卡传输格式 | 韦根26-37 |
键盘输出格式 | 输入一个4-6位PIN，发送卡号，每个按键发送一个--- 4位数据，或者每按一次发送一个8位数据 |
尺寸 | 158×43××21.7毫米21.7毫米21.7mm×21.7mm |
工作温度范围 | -40℃-60℃-60℃下eg;C-60°C |
工作湿度 | 0-95％（不凝结） |
我们的优势
1.专业研发部门，可以为您提供OEM / ODM服务;恶习;ices;
专业技术支持和良好的服务;
我们严格控制质量，把它视为存在的基础！ QC员工对所有产品进行逐件检查。
产品进行老化试验72小时。
我们的产品选用优质材料，确保前期的稳定性。
我们的产品符合ISO，CE，FCC，RoHS证书;
我们的目标
以“一店购”为理念，提供具有成本效益的产品和及时的服务，实现双赢合作！合作！
如何付款
按T / T，贝宝，西联，Moneygram，L / C。
如何交付
快速方式：通过快递，例如DHL，Fedex，UPS，TNT，EMS ...大约需要3-7天。 2.便宜的方式（小包）：由中国邮政，约15-70天。 3.便宜的方式：乘飞机或海上运输重物和大货。
保修
我们从交付之日起提供1〜2年保修期，但终身技术支持。
| Model NO. | Touch-S Access Control Reader |
| Keypad Button Material | PC |
| Certification | RoHs, SGS, FCC, CE |
| Structure Material | Aluminium Alloy |
| Card Frequency | 125kHz |
| Mechanical Life for Door Bell | Exceed 1million Times |
| Keypad Transmission Format | 4 Bit, 8 Bit and Virtual Card Numbe |
| Transport Package | Box and Carton |
| Origin | Shenzhen |
| Access Control | Card + PIN |
| IP Rating | IP66 Waterproof |
| Dimensions | 158X43X21.7mm |
| Reading Type | Card, Pin or Card + Pin Verification |
| Card Reading Distance | 40mm Max |
| Card Transmission Format | 26-37 Bit |
| Trademark | Techcrepower |
| Specification | CE |
Wiegand RFID Access Control Reader with Touch Panel
Specifications:
1.Aluminum alloy structure
2.Touch Panel backlight keypad
3.Wiegand 26-37
4.IP66 waterproof
5.Access Control
Main Features:
Touch-S is our new genneration RFID & PIN metal access control, it's designed with very new fashion style. It's a hit since issued the market! It allows entry via PIN/ and/or by presenting a proximity EM, IC, or CPU card. card.card.
It's aluminum alloy structure, waterproof, fully potted, confirmed to IP66, touch panel, digital backlit key, the back light can be set to Normal ON, Normal OFF or Automatic mode, very hot in market!
Access Control Reader Spec:
Our Advantage
1. Professional R&D department, can offer you OEM/ODM services;vices;ices;
2. Professional technique supports and good service;
3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products.
Products are conducted aging test for 72 hours.
4. Our products are chosen high quality materials and ensure the prophase stability.
5. Our products meet ISO, CE, FCC, RoHS certificates;
Our Target
Provide cost-effective products and timely services with the concept of 'one store purchasing', realize win-to-win cooperation!cooperation!
How to Pay
By T/T, paypal, westerm union, Moneygram, L/C.
How to Deliver
1. Fast way: By express, e.g. DHL, Fedex, UPS, TNT, EMS... take about 3-7 days. 2. Cheap way (small package): By China post, take about 15-70 days. 3. Cheap way: By Air or by Sea shipment for heavy and big goods.
The Warranty
We provide 1~2 years warranty from the date of delivery but lifetime technical support.
Specifications:
1.Aluminum alloy structure
2.Touch Panel backlight keypad
3.Wiegand 26-37
4.IP66 waterproof
5.Access Control
Main Features:
Touch-S is our new genneration RFID & PIN metal access control, it's designed with very new fashion style. It's a hit since issued the market! It allows entry via PIN/ and/or by presenting a proximity EM, IC, or CPU card. card.card.
It's aluminum alloy structure, waterproof, fully potted, confirmed to IP66, touch panel, digital backlit key, the back light can be set to Normal ON, Normal OFF or Automatic mode, very hot in market!
Access Control Reader Spec:
Product Parameter | Parameter Description |
Operating voltage range | DC12-21V |
Idle input current | ≤35mA35mA35mA |
Max proximity card read range | EM card:3-6cm ﹥ IC or CPU( MF) card: 2-6cm-6cm |
Excitation frequency | 125KHz |
Card transmit format | Wiegand 26-37 |
Keypad output format | Input a 4-6 digits PIN, sends card number, each key press sends a ---4 bits data, or each press sends an 8 bits data |
Dimension | 158×43×21.7mm×21.7mm21.7mm×21.7mm |
Operating temperature range | -40°C-60°C-60°Ceg;C-60°C |
Operating humidity | 0-95%(non-condensing) |
Our Advantage
1. Professional R&D department, can offer you OEM/ODM services;vices;ices;
2. Professional technique supports and good service;
3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products.
Products are conducted aging test for 72 hours.
4. Our products are chosen high quality materials and ensure the prophase stability.
5. Our products meet ISO, CE, FCC, RoHS certificates;
Our Target
Provide cost-effective products and timely services with the concept of 'one store purchasing', realize win-to-win cooperation!cooperation!
How to Pay
By T/T, paypal, westerm union, Moneygram, L/C.
How to Deliver
1. Fast way: By express, e.g. DHL, Fedex, UPS, TNT, EMS... take about 3-7 days. 2. Cheap way (small package): By China post, take about 15-70 days. 3. Cheap way: By Air or by Sea shipment for heavy and big goods.
The Warranty
We provide 1~2 years warranty from the date of delivery but lifetime technical support.
