Cooling for Cold Aisle/Data Center
冷通道/数据中心冷却
议价
加入意向| 型号。 | WB-DC-S02 |
| 证明 | CE |
| 显示类型 | LED |
| 物料 | 有线玻璃或钢 |
| 面板匹配柜 | 600mm，700mm和800mm |
| 碳足迹 | 低 |
| 商标 | Webitelecomms |
| HS编码 | 8517709000 |
| 用法 | 冷气机 |
| 控制类型 | 数字 |
| 材料 | 钢 |
| 标准走道宽度 | 1200mm和1800mm; |
| 能源成本 | 低 |
| 安装 | 易于安装 |
| 起源 | 中国制造 |
-------------------------------------------------- - - - - - - - - - 特征 - - - - - - - - - - - - - - - - ------------------------------
隔离冷通道气流从热通道气流
最大化冷通道的冷却效果
减少电脑室空调的工作量
能源成本低
低碳足迹
被动冷却版本
主动的愿景与自动化面板打开防火
完全集成柜体基础设施
没有连接到建筑物
可以快速安装
轻松搬迁
Cannon Guard远程管理升级
可以使用定制套件将其改装成现有的机柜
在通道照明升级
-------------------------------------------------- - - - - - - - - - - - -规范 - - - - - - - - - - - - - --------------------------
完全兼容PDU，吸烟，湿度和遥控系统
高透明度聚碳酸酯玻璃面板
替代面板材料：有线玻璃或钢
标准通道宽度包括1200mm和1800mm;可供选择的通道宽度
面板匹配机柜宽度（600mm，700mm和800mm）
可选择茧面板宽度
铰链门或滑动过道门
半釉端门，增加防损性能
使用各种通道的远程温度监控。
电动执行器打开活动进风门，用于喷水器进水
将适合任何柜体尺寸
可以扩展形成一个完整的数据中心“pod”进行灾难恢复开发或临时使用
隔离冷通道气流从热通道气流
最大化冷通道的冷却效果
减少电脑室空调的工作量
能源成本低
低碳足迹
被动冷却版本
主动的愿景与自动化面板打开防火
完全集成柜体基础设施
没有连接到建筑物
可以快速安装
轻松搬迁
Cannon Guard远程管理升级
可以使用定制套件将其改装成现有的机柜
在通道照明升级
-------------------------------------------------- - - - - - - - - - - - -规范 - - - - - - - - - - - - - --------------------------
完全兼容PDU，吸烟，湿度和遥控系统
高透明度聚碳酸酯玻璃面板
替代面板材料：有线玻璃或钢
标准通道宽度包括1200mm和1800mm;可供选择的通道宽度
面板匹配机柜宽度（600mm，700mm和800mm）
可选择茧面板宽度
铰链门或滑动过道门
半釉端门，增加防损性能
使用各种通道的远程温度监控。
电动执行器打开活动进风门，用于喷水器进水
将适合任何柜体尺寸
可以扩展形成一个完整的数据中心“pod”进行灾难恢复开发或临时使用
| 模型 | wb024c | wb066c | ||||
| 入口和出口水温ature | 7C / 12C | 10C / 15C | 13C / 18C | 7C / 12C | 10C / 15C | 13C / 18C |
| 冷却能力 | ||||||
| 40 cdb / 20％rh | ||||||
| 总冷量（kw） | 30.3 | 27.3 | 24.1 | 84.7 | 75.7 | 66.9 |
| 明智的制冷量（kw） | 30.3 | 27.3 | 24.1 | 84.7 | 75.7 | 66.9 |
| 37c db / 24％rh | ||||||
| 总冷量（kw） | 27.5 | 23.9 | 20.7 | 76.4 | 66.8 | 58 |
| 明智的制冷量（kw） | 27.3 | 23.9 | 20.7 | 75.7 | 66.8 | 58 |
| 35c db / 26％rh | ||||||
| 总冷量（kw） | 25.1 | 21.7 | 18.6 | 70.2 | 60.9 | 52 |
| 明智的制冷量（kw） | 24.9 | 21.7 | 18.6 | 69.7 | 60.9 | 52 |
| 32 c db / 29％rh | ||||||
| 总冷量（kw） | 21.7 | 18.5 | 15.3 | 60.8 | 51.9 | 42.9 |
| 明智的制冷量（kw） | 21.7 | 18.5 | 15.3 | 60.8 | 51.9 | 42.9 |
| 30c db / 34％rh | ||||||
| 总冷量（kw） | 19.7 | 16.3 | 13.1 | 55.2 | 45.8 | 38.8 |
| 明智的制冷量（kw） | 19.7 | 16.3 | 13.1 | 55.2 | 45.8 | 38.8 |
| 气流 | ||||||
| 气流（m3 / h） | 5000 | 5000 | 5000 | 12000 | 12000 | 12000 |
| Model NO. | WB-DC-S02 |
| Certification | CE |
| Display Type | LED |
| Materials | Wired Glass or Steel |
| Panels to Match Cabinet | 600mm, 700mm and 800mm |
| Carbon Footprint | Low |
| Trademark | Webitelecomms |
| HS Code | 8517709000 |
| Usage | Air Conditioner |
| Control Type | Digital |
| Material | Steel |
| Standard Aisle Widths | 1200mm and 1800mm; |
| Energy Cost | Low |
| Installation | Easy and Quick to Install |
| Origin | Made in China |
--------------------------------------------------------------------Features-------------------------------------------------------------

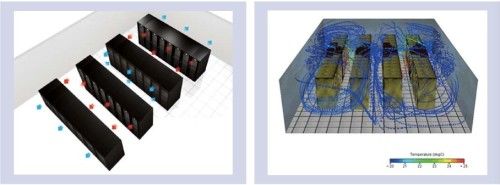

Segregated cold aisle air flow from hot aisle air flow
Maximises cooling effect of cold aisle
Reduces workload of computer room air conditioning
Low energy cost
Low carbon footprint
Passive cooling versions
Active visions with automated panel opening for fireproofing
Totally integrated with cabinet infrastructure
Not connected to the building
Can be quickly installed
Easily Relocated
Cannon Guard remote management upgrades
Can be retrofitted to existing bays of enclosures with the use of customising kits
Within aisle lighting upgrades
-------------------------------------------------------------------------Specification----------------------------------------------------
Fully compatible with PDU, smoking, humidity, and romote control systems
High transparency polycarbonate glazing in panels
Alternative panel materials: Wired glass or steel
Standard aisle widths include 1200mm and 1800mm; Alternative aisle widths are available
Panels to match cabinet widths (600mm, 700mm and 800mm)
Alternative cocooning panel widths are available
Hinge door or sliding aisle end doors
Half glazed end doors for increased damage resistance
Remote temperature monitoring of various aisle points using.
Active entrace doors opened by electronic actuators for sprinkler water ingress
Will fit any cabinet size
Can be extended to form a complete data center 'pod' for disaster recovery development or temporary use
Segregated cold aisle air flow from hot aisle air flow
Maximises cooling effect of cold aisle
Reduces workload of computer room air conditioning
Low energy cost
Low carbon footprint
Passive cooling versions
Active visions with automated panel opening for fireproofing
Totally integrated with cabinet infrastructure
Not connected to the building
Can be quickly installed
Easily Relocated
Cannon Guard remote management upgrades
Can be retrofitted to existing bays of enclosures with the use of customising kits
Within aisle lighting upgrades
-------------------------------------------------------------------------Specification----------------------------------------------------
Fully compatible with PDU, smoking, humidity, and romote control systems
High transparency polycarbonate glazing in panels
Alternative panel materials: Wired glass or steel
Standard aisle widths include 1200mm and 1800mm; Alternative aisle widths are available
Panels to match cabinet widths (600mm, 700mm and 800mm)
Alternative cocooning panel widths are available
Hinge door or sliding aisle end doors
Half glazed end doors for increased damage resistance
Remote temperature monitoring of various aisle points using.
Active entrace doors opened by electronic actuators for sprinkler water ingress
Will fit any cabinet size
Can be extended to form a complete data center 'pod' for disaster recovery development or temporary use
| Model | WB024C | WB066C | ||||
| Inlet&outlet water temperatureatureature | 7C/12C | 10C/15C | 13C/18C | 7C/12C | 10C/15C | 13C/18C |
| cooling capacity | ||||||
| 40 CDB/20%RH | ||||||
| Total cooling capacity(kw) | 30.3 | 27.3 | 24.1 | 84.7 | 75.7 | 66.9 |
| Sensible cooling capacity(kw) | 30.3 | 27.3 | 24.1 | 84.7 | 75.7 | 66.9 |
| 37C DB/24% RH | ||||||
| Total cooling capacity (kw) | 27.5 | 23.9 | 20.7 | 76.4 | 66.8 | 58 |
| Sensible cooling capacity(kw) | 27.3 | 23.9 | 20.7 | 75.7 | 66.8 | 58 |
| 35C DB/ 26% RH | ||||||
| Total cooling capacity (kw) | 25.1 | 21.7 | 18.6 | 70.2 | 60.9 | 52 |
| Sensible cooling capacity(kw) | 24.9 | 21.7 | 18.6 | 69.7 | 60.9 | 52 |
| 32 C DB/29% RH | ||||||
| Total cooling capacity(kw) | 21.7 | 18.5 | 15.3 | 60.8 | 51.9 | 42.9 |
| Sensible cooling capacity(kw) | 21.7 | 18.5 | 15.3 | 60.8 | 51.9 | 42.9 |
| 30C DB/ 34% RH | ||||||
| Total cooling capacity(kw) | 19.7 | 16.3 | 13.1 | 55.2 | 45.8 | 38.8 |
| Sensible cooling capacity (kw) | 19.7 | 16.3 | 13.1 | 55.2 | 45.8 | 38.8 |
| Airflow | ||||||
| Airflow (m3/h) | 5000 | 5000 | 5000 | 12000 | 12000 | 12000 |
