4.3′′ TFT Fingerprint & Face Biometrics Time Attendance
4.3“TFT指纹和面部生物识别时间考试
议价
加入意向| 型号。 | Face400考勤 |
| 通讯接口 | rs485，rs232，tcp / ip |
| 指纹 | 2,000 |
| 身份证容量 | 10,000（可选） |
| 韦根 | 产量 |
| 商标 | Techcrepower |
| 起源 | 深圳 |
| 面容量 | 800 |
| 显示 | 4.3“TFT触摸屏触摸屏 Touch Screen |
| 面容量 | 800 (1:N) |
| 通讯 | tcp / ip，rs232 / 485，usb主机（可选：wi-fi / gprs） |
| 尺寸 | 193.6 * 165 * 111 mm（l * w * t） |
| 规范 | CE |
Arial'vertical-align：baseline; line-height：24px; color：rgb（0,0,0）; font-size：18px; margin：0px 0px 10px; font-family：Arial，Helvetica，sans-serif; - 重量：400; padding：0px; border：0px;'> 4.3“”TFT指纹和脸部生物识别技术时间考察dance
介绍：
iFace400多生物识别考勤和门禁控制终端采用最新的具有Face 7.0算法和大容量内存的ZEM600平台。 iFace系列集成630MHz高速Multi-Bio处理器和高分辨率红外摄像机，可在黑暗环境中进行用户识别。面部和指纹多生物识别方法将更广泛应用。 iFace的所有操作都设计为在4.3英寸TFT触摸屏上执行。多模式通信包括RS232 / 485，TCP / IP，可选WiFi或GPRS。可选的内置2000 mAh电池消除了电源故障的麻烦
特征：
识别方法包括面部，指纹/ RFID和/或密码优雅的人体工程学设计4.3“TFT触摸屏是用户友好的，非常直观的6个用户定义的功能键接触式门禁控制继电器（电线到门口或第三方面板） Web服务器管理软件通过IE浏览器。可选的可延长的预定钟红外光学系统可在不太亮的环境中进行用户识别可选的内置电池备份可连续运行约4小时。可选的内置无线Wi-Fi或GPRS用于无线通信。内置触点，用于第三方电锁，门传感器，报警器，退出按钮或铃。 Wiegand输出用于连接第三方门禁控制面板。
规范：
介绍：
iFace400多生物识别考勤和门禁控制终端采用最新的具有Face 7.0算法和大容量内存的ZEM600平台。 iFace系列集成630MHz高速Multi-Bio处理器和高分辨率红外摄像机，可在黑暗环境中进行用户识别。面部和指纹多生物识别方法将更广泛应用。 iFace的所有操作都设计为在4.3英寸TFT触摸屏上执行。多模式通信包括RS232 / 485，TCP / IP，可选WiFi或GPRS。可选的内置2000 mAh电池消除了电源故障的麻烦
特征：
识别方法包括面部，指纹/ RFID和/或密码优雅的人体工程学设计4.3“TFT触摸屏是用户友好的，非常直观的6个用户定义的功能键接触式门禁控制继电器（电线到门口或第三方面板） Web服务器管理软件通过IE浏览器。可选的可延长的预定钟红外光学系统可在不太亮的环境中进行用户识别可选的内置电池备份可连续运行约4小时。可选的内置无线Wi-Fi或GPRS用于无线通信。内置触点，用于第三方电锁，门传感器，报警器，退出按钮或铃。 Wiegand输出用于连接第三方门禁控制面板。
规范：
指纹传感器 | 光学指纹传感器 |
相机 | 高分辨率红外摄像机 |
显示 | 4.3“TFT触摸屏 |
面容量 | 800 (1:N) |
指纹容量 | 2,000 |
身份证容量 | 10,000（可选） |
日志容量 | 100,000 |
通讯 | tcp / ip，rs232 / 485，usb主机（可选：wi-fi / gprs） |
考勤标准功能 | 照片ID，自动状态开关，自助查询， 工作代码，T9输入，9位用户ID，DST，计时铃 |
访问控制接口 | 第三方电锁，门传感器和退出按钮 |
韦根信号 | 产量 |
可选功能 | 2000 mAh备用电池，身份证，邻近卡，ADMS |
电源 | 12v 3a |
验证速度 | 小于或等于2秒 |
工作温度 | 0- 45 |
工作湿度 | 20%-80% |
尺寸 | 193.6 * 165 * 111 mm（l * w * t） |
| Model NO. | Face400 Time Attendance |
| Communication Interface | RS485, RS232, TCP/IP |
| Fingerprint | 2,000 |
| ID Card Capacity | 10,000 (Optional) |
| Wiegand | Output |
| Trademark | Techcrepower |
| Origin | Shenzhen |
| Facial Capacity | 800 |
| Display | 4.3′′ TFT Touch ScreenT Touch Screen Touch Screen |
| Face Capacity | 800 (1:N) |
| Communications | TCP/IP,RS232/485,USB Host(Optional: Wi-Fi/GPRS ) |
| Dimension | 193.6*165*111 Mm (L*W*T) |
| Specification | CE |
Arial'vertical-align:baseline;line-height:24px;color:rgb(0,0,0);font-size:18px;margin:0px 0px 10px;font-family:Arial, Helvetica, sans-serif;font-weight:400;padding:0px;border:0px;'﹥4.3'' TFT Fingerprint & Face Biometrics Time Attendancendancedance
Introduction:

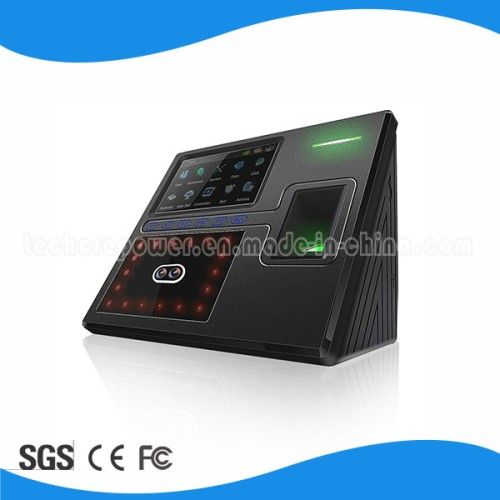

iFace400 multi-biometric identification time attendance and access control terminal adopts the latest ZEM600 platform with Face 7.0 algorithm and large capacity memory. iFace series integrated 630MHz high speed Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of iFace are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP, optional WiFi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure
Features:
Identification methods include Face, Fingerprint/RFID and/or Password Elegant ergonomic design 4.3'' TFT touch screen is user-friendly and very intuitive 6 user-defined function keys Contact relays for door access control (wires to door strike or 3rd party panel) Web server management software via IE browser. Optional extendable scheduled-bell Infra-red optical system enables user-identification in poorly lit environments Optional built-in battery backup provides approx 4 hours continuous operation. Optional built-in wireless Wi-Fi or GPRS for wireless communication. Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell. Wiegand Output for connections to 3rd party access control panels.
Specification:
Introduction:
iFace400 multi-biometric identification time attendance and access control terminal adopts the latest ZEM600 platform with Face 7.0 algorithm and large capacity memory. iFace series integrated 630MHz high speed Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of iFace are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP, optional WiFi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure
Features:
Identification methods include Face, Fingerprint/RFID and/or Password Elegant ergonomic design 4.3'' TFT touch screen is user-friendly and very intuitive 6 user-defined function keys Contact relays for door access control (wires to door strike or 3rd party panel) Web server management software via IE browser. Optional extendable scheduled-bell Infra-red optical system enables user-identification in poorly lit environments Optional built-in battery backup provides approx 4 hours continuous operation. Optional built-in wireless Wi-Fi or GPRS for wireless communication. Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell. Wiegand Output for connections to 3rd party access control panels.
Specification:
Fingerprint Sensor | Optical Fingerprint Sensor |
Camera | High Resolution Infrared Camera |
Display | 4.3'' TFT Touch Screen |
Face Capacity | 800 (1:N) |
Fingerprint Capacity | 2,000 |
ID Card Capacity | 10,000 (Optional) |
Logs Capacity | 100,000 |
Communication | TCP/IP,RS232/485,USB host(Optional: Wi-Fi/GPRS ) |
Time Attendance Standard Functions | Photo ID, Automatic Status Switch, Self-Service Query, Work Code,T9 Input,9 Digit User ID, DST, Scheduled-bell |
Access Control Interfaces for | Third Party Electric Lock, Door Sensor and Exit button |
Wiegand Signal | Output |
Optional Functions | 2000 mAh Backup Battery, ID Card, Proximity Card, ADMS |
Power Supply | 12V 3A |
Verification Speed | Less than or equal to 2 sec |
Operating Temp. | 0- 45 |
Operating Humidity | 20%-80% |
Dimension | 193.6*165*111 mm (L*W*T) |
