High Quality Wiegand Fingerprint Time Attendance System with Free Software

High Quality Wiegand Fingerprint Time Attendance System with Free Software

高品质的Wiegand指纹考勤系统与免费软件

议价

加入意向
型号。 FAC18考勤
指纹容量 3000
指纹 3000模板
通讯 TCP / IP,RS232 / 485,USB
电源 12v直流
规范 CE
通讯接口 rs485,rs232,usb,tcp / ip
显示 tft lcd屏幕
交易能力 30,000
韦根 输入输出utput
商标 Techcrepower
起源 深圳
Wiegand免费软件指纹考勤系统
介绍:
FAC18是用于访问控制应用的创新生物识别指纹识别器,通过使用先进的算法提供无与伦比的性能,可靠性,精度和出色的匹配速度。 FAC18具有最快的商业化指纹匹配算法和高性能,高图像质量的光学指纹传感器。该设备提供了独立安装或支持26位Wiegand的任何第三方面板的灵活性。所有的操作都可以在TFT-LCD上完成。指纹图像显示在屏幕上,这将引导用户将手指放在正确的位置,并增加识别率。
特征:
·具有耐用和高精度光学传感器的指纹读取器l sensor
·1触摸一秒钟的用户识别ognition
·存储1,500个模板,5,000个卡和30,000个交易sactions
·读取指纹和/或卡/卡/or Card
·可选集成感应卡或智能卡读卡器d reader
·内置串口和以太网口组合端口et ports
·防篡改开关和报警输出 outputs
·请求退出和报警输出输出 outputs
·有效/无效手指手指接受和拒绝的视听指示 fingers
技术规格:

指纹容量

3000个模板

身份证容量

5000

交易能力

30,000

传感器

光学传感器

算法版本

手指v10.0

通讯

rs232 / 485,tcp / ip,usb-host

访问控制界面

第三方电锁,门传感器,出口按钮,报警器,门铃

韦根信号

输出和输入

显示

tft lcd屏幕

标准功能

Webserver,DLST

可选功能

身份证/ IC卡

电源

12v直流

工作温度

0 - 45

工作湿度

20%-80%

Model NO. FAC18 time attendance
Fingerprint Capacity 3000
Fingerprint 3000 Templates
Communications TCP/IP,RS232/485,USB
Power Supply 12V DC
Specification CE
Communication Interface RS485, RS232, USB, TCP/IP
Display TFT LCD Screen
Transaction Capacity 30,000
Wiegand Input & OutputOutpututput
Trademark Techcrepower
Origin Shenzhen
Wiegand Fingerprint Time Attendance System with Free Software
Introduction:

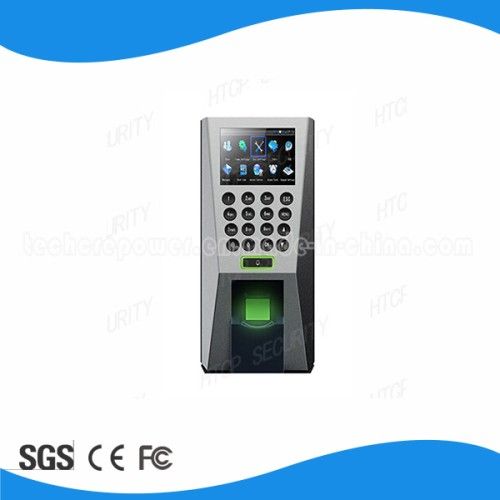

FAC18 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The FAC18 features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. All the operation can be done on the TFT-LCD. The fingerprint image is displayed on the screen, that will guide the user to put the finger on to proper positioin and increase the recognition rate.
Features:
· Fingerprint reader with durable and highly accurate optical sensoral sensorl sensor
· 1 touch a-second user recognitionognitionognition
· Stores 1,500 templates, 5,000 cards and 30,000 transactionssactionssactions
· Reads Fingerprint and/or Card/or Card/or Card
· Optional integrated proximity card or smart card readerd readerd reader
· Built-in Serial and Ethernet portset portset ports
· Tamper-proofs switch and alarm outputs outputs outputs
· Request-to-exit and alarm outputs outputs outputs
· Audio-Visual indications for acceptance and rejection of valid/invalid fingers fingers fingers
Technical Specification:

Fingerprint Capacity

3000 templates

ID card Capacity

5000

Transaction Capacity

30,000

Sensor

Optical Sensor

Algorithm Version

Finger v10.0

Communication

RS232/485, TCP/IP, USB-host

Access Control Interface for

3rd party electric lock, door sensor, exit button, alarm, Door Bell

Wiegand Signal

Output and Input

Display

TFT LCD Screen

Standard function

Webserver, DLST

Optional function

ID card /IC card

Power Supply

12V DC

Operating Temperature

0 - 45

Operating Humidity

20%-80%
