S/FTP Shielded Cat 6A Twisted Pair Installation Cable, CAT6A S/FTP Data Cable /LAN Cable /Network Cable
S/FTP Shielded Cat 6A Twisted Pair Installation Cable, CAT6A S/FTP Data Cable /LAN Cable /Network Cable
S / FTP屏蔽Cat 6A双绞线安装电缆，CAT6A S / FTP数据电缆/ LAN电缆/网络电缆
| 型号。 | WB-LC-54 |
| 导体材料 | 铜 |
| 类型 | CAT6A |
| 导体类型 | 固体 |
| 证明 | ce，iso，rohs，ccc，ul，vde |
| 牌 | Webit或OEM |
| AWG | 23 |
| 夹克 | PVC / LSZH / LDPE |
| 商标 | Webitelecomms |
| 起源 | 中国宁波 |
| 应用 | 本地通信电缆，同轴电缆，LAN电缆 |
| 封面材料 | CMX / CM / CMR / LSZH / LDPE |
| 材质形状 | 圆线 |
| 线芯材料 | 裸铜线 |
| 模型 | cat6a s / ftp数据线 |
| 导体 | 固体铜 |
| 绝缘 | PE（皮 - 泡 - 皮） |
| 包装方式 | 易拉箱，木桶 |
| 规范 | ce rohs |
| HS编码 | 8544499100 |
生产描述及规格：
S / FTP屏蔽Cat 6A双绞线安装电缆，实芯裸铜23AWG，PE绝缘;
8芯，4对绞，100％AL-Foil，TC编织，PVC / LSZH外套
Appliacation
适用于结构化布线;
2.传输数字和模拟语音和数据信号
3.特别适合所有EA类应用;
4. ISDN，以太网10 Base-T，快速以太网100 Base-T，千兆以太网1000Base-T，10G Base T（IEEE802.3）
5.令牌ring4 / 16 mbit / s，tp-pmd / tp / ddi 125bit / s，atm155mbit / s（ieee 802.5）
电子特性
阻抗：4-100MHz 100±15（欧姆）.15（欧姆）。5(ohms).
100-200MHz 100±22（欧姆）.22（欧姆）。2(ohms).
200-1000MHz 100±32（欧姆）.32（欧姆）。2(ohms).
最大。导体直流电阻20ºC：8.4（欧姆/ 100m）s / 100m）/100m)
电阻不平衡（％）：最大2.5
对地电容不平衡：330（Pf / 100m）
转移阻抗：最大10 mohms / m @ 100MHz。
耦合衰减：最小80 Db。
安装温度：0-50ºC.rdm; C。dm; C.
操作温度：-20〜60ºCordm; Crdm; C
S / FTP屏蔽Cat 6A双绞线安装电缆，实芯裸铜23AWG，PE绝缘;
8芯，4对绞，100％AL-Foil，TC编织，PVC / LSZH外套
Appliacation
适用于结构化布线;
2.传输数字和模拟语音和数据信号
3.特别适合所有EA类应用;
4. ISDN，以太网10 Base-T，快速以太网100 Base-T，千兆以太网1000Base-T，10G Base T（IEEE802.3）
5.令牌ring4 / 16 mbit / s，tp-pmd / tp / ddi 125bit / s，atm155mbit / s（ieee 802.5）
电子特性
阻抗：4-100MHz 100±15（欧姆）.15（欧姆）。5(ohms).
100-200MHz 100±22（欧姆）.22（欧姆）。2(ohms).
200-1000MHz 100±32（欧姆）.32（欧姆）。2(ohms).
最大。导体直流电阻20ºC：8.4（欧姆/ 100m）s / 100m）/100m)
电阻不平衡（％）：最大2.5
对地电容不平衡：330（Pf / 100m）
转移阻抗：最大10 mohms / m @ 100MHz。
耦合衰减：最小80 Db。
安装温度：0-50ºC.rdm; C。dm; C.
操作温度：-20〜60ºCordm; Crdm; C
| 品种 | Shieded | 描述 |
| Cat 6A安装电缆 | S / FTP屏蔽 | S / FTP屏蔽Cat 6A双绞线安装电缆 |
| 导体 | ||||||
| 导体 | 绝缘 | 指导数量 | 色标 | 单身对对 | 总体盾牌 | 排水丝 |
| 纯铜23AWG | PE（皮肤 - 泡 - 皮） | 8，扭成4对 | 蓝白色，橙白色，绿白色，棕白色 | 铝箔，100％覆盖，箔面朝外 | 镀锡铜编织物 | 没有 |
| 外套信息 | ||
| 编号 | 外套 | 总直径（mm） |
| D175-P | CMX | 8.3±0.3lusmn; 0.3usmn;0.3 |
| D175-C | 厘米 | 8.3±0.3lusmn; 0.3usmn;0.3 |
| D175-R | CMR | 8.3±0.3lusmn; 0.3usmn;0.3 |
| D175-1 | LSZH | 8.3±0.3lusmn; 0.3usmn;0.3 |
| D175-E | LDPE | 8.3±0.3lusmn; 0.3usmn;0.3 |
| 标称传输特性 | ||||||||
| 频 | RL | 金正日 | DOP | 歪斜 | 下一个 | PSNEXT | ACR-F | PSACR-F |
| （MHz）的 | （分贝） | （分贝/ 100米） | （NS） | （NS） | （分贝） | （分贝） | （分贝） | （分贝） |
| 4 | 23.0 | 3.7 | 552 | 25 | 78 | 75 | 78 | 75 |
| 8 | 24.5 | 5.2 | 547 | 25 | 78 | 75 | 77.2 | 74.2 |
| 10 | 25.0 | 5.9 | 545 | 25 | 78 | 75 | 75.3 | 72.3 |
| 16 | 25.0 | 7.4 | 543 | 25 | 78 | 75 | 71.2 | 68.2 |
| 20 | 25.0 | 8.3 | 542 | 25 | 78 | 75 | 69.3 | 66.3 |
| 25 | 24.3 | 9.3 | 541 | 25 | 78 | 75 | 67.3 | 64.3 |
| 31.25 | 23.6 | 10.4 | 540 | 25 | 78 | 75 | 65.4 | 62.4 |
| 62.5 | 21.5 | 14.9 | 539 | 25 | 75.5 | 72.5 | 59.4 | 56.4 |
| 100 | 20.1 | 19.0 | 538 | 25 | 72.4 | 69.4 | 55.3 | 52.3 |
| 200 | 18.0 | 27.5 | 537 | 25 | 67.9 | 64.9 | 49.3 | 46.3 |
| 250 | 17.3 | 31.0 | 536 | 25 | 66.4 | 63.4 | 47.3 | 44.3 |
| 300 | 17.3 | 34.2 | 536 | 25 | 65.2 | 62.2 | 45.8 | 42.8 |
| 400 | 17.3 | 40.0 | 536 | 25 | 63.4 | 60.4 | 43.3 | 40.3 |
| 500 | 17.3 | 45.3 | 536 | 25 | 61.9 | 58.9 | 41.3 | 38.3 |
| 注意：上述传输性能为100M，测试条件为20±2度n tested | ||||||||
| Model NO. | WB-LC-54 |
| Conductor Material | Copper |
| Type | CAT6A |
| Conductor Type | Solid |
| Certification | CE, ISO, RoHS, CCC, UL, VDE |
| Brand | Webit or OEM |
| AWG | 23 |
| Jacket | PVC/Lszh/LDPE |
| Trademark | Webitelecomms |
| Origin | Ningbo, China |
| Application | Local Communication Cable, Coaxial Cable, LAN Cable |
| Cover Material | Cmx/Cm/Cmr/Lszh/LDPE |
| Material Shape | Round Wire |
| Wire Core Material | Bare Copper Wire |
| Model | CAT6A S/FTP Data Cable |
| Conductor | Solid Bare Copper |
| Insulation | PE(Skin-Foam-Skin) |
| Packing Way | Easy Pull Box, Wooden Drum |
| Specification | CE RoHS |
| HS Code | 8544499100 |
Production describe and Specification:

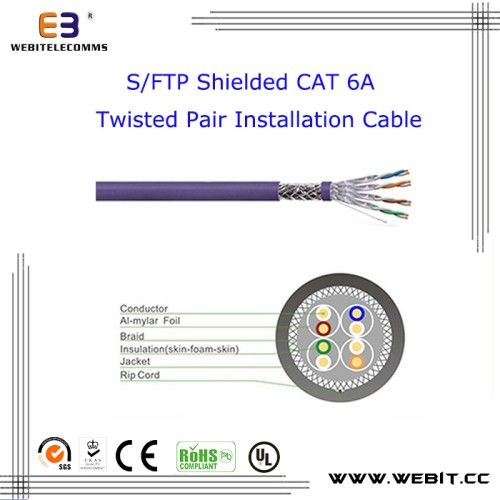

S/FTP Shielded Cat 6A Twisted Pair Installation cable, Solid Bare Copper 23AWG, PE Insulation;
8 cores, twisted in 4 pairs, 100% AL-Foil, TC Braid, PVC/LSZH Jacket
Appliacation
1. Suitable for structured premised cabling;
2. For transmission of digital and analogue voice and data signals
3. Especially suitable for all Class EA applictions;
4. ISDN, Ethernet 10 Base-T, Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base T(IEEE802.3)
5. Token Ring4/16 Mbit/s, TP-PMD/TP/DDI 125bit/s, ATM155Mbit/s(IEEE 802.5)
Electronic Characteristics
Impedance: 4-100MHz 100± 15(ohms).15(ohms).5(ohms).
100-200MHz 100± 22(ohms).22(ohms).2(ohms).
200-1000MHz 100± 32(ohms).32(ohms).2(ohms).
Max. Conductor DC Resistance 20º C: 8.4(ohms/100m)s/100m)/100m)
Resistance unbalance(%): Max2.5
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Coupling Attenuation: Min 80 Db.
Installation temperture: 0-50º C.rdm; C.dm; C.
Operation temerture: -20~60º Cordm; Crdm; C
S/FTP Shielded Cat 6A Twisted Pair Installation cable, Solid Bare Copper 23AWG, PE Insulation;
8 cores, twisted in 4 pairs, 100% AL-Foil, TC Braid, PVC/LSZH Jacket
Appliacation
1. Suitable for structured premised cabling;
2. For transmission of digital and analogue voice and data signals
3. Especially suitable for all Class EA applictions;
4. ISDN, Ethernet 10 Base-T, Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base T(IEEE802.3)
5. Token Ring4/16 Mbit/s, TP-PMD/TP/DDI 125bit/s, ATM155Mbit/s(IEEE 802.5)
Electronic Characteristics
Impedance: 4-100MHz 100± 15(ohms).15(ohms).5(ohms).
100-200MHz 100± 22(ohms).22(ohms).2(ohms).
200-1000MHz 100± 32(ohms).32(ohms).2(ohms).
Max. Conductor DC Resistance 20º C: 8.4(ohms/100m)s/100m)/100m)
Resistance unbalance(%): Max2.5
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Coupling Attenuation: Min 80 Db.
Installation temperture: 0-50º C.rdm; C.dm; C.
Operation temerture: -20~60º Cordm; Crdm; C
| Assortment | Shieded | Describe |
| Cat 6A Installation cable | S/FTP Shielded | S/FTP Shielded Cat 6A Twisted Pair Installation cable |
| Conductor | ||||||
| Conductor | Insulation | Qty of Conductor | Color code | Indiviual pair shied | Overall shield | Drain wire |
| Solid Bare Copper 23AWG | PE(skin-Foam-Skin) | 8,twisted in 4 pairs | blue-white, orange-white, green-white, brown-white | AL-Foil, 100%coverage,foil face out | Tinned copper braid | None |
| Outer jacket information | ||
| Item no | Outer jacket | overall diameter(mm) |
| D175-P | CMX | 8.3±0.3lusmn;0.3usmn;0.3 |
| D175-C | CM | 8.3±0.3lusmn;0.3usmn;0.3 |
| D175-R | CMR | 8.3±0.3lusmn;0.3usmn;0.3 |
| D175-L | LSZH | 8.3±0.3lusmn;0.3usmn;0.3 |
| D175-E | LDPE | 8.3±0.3lusmn;0.3usmn;0.3 |
| Nominal Transmission Characteristics | ||||||||
| Frequence | RL | IL | DOP | SKEW | NEXT | PSNEXT | ACR-F | PSACR-F |
| (MHz) | (dB) | (dB/100M) | (ns) | (ns) | (dB) | (dB) | (dB) | (dB) |
| 4 | 23.0 | 3.7 | 552 | 25 | 78 | 75 | 78 | 75 |
| 8 | 24.5 | 5.2 | 547 | 25 | 78 | 75 | 77.2 | 74.2 |
| 10 | 25.0 | 5.9 | 545 | 25 | 78 | 75 | 75.3 | 72.3 |
| 16 | 25.0 | 7.4 | 543 | 25 | 78 | 75 | 71.2 | 68.2 |
| 20 | 25.0 | 8.3 | 542 | 25 | 78 | 75 | 69.3 | 66.3 |
| 25 | 24.3 | 9.3 | 541 | 25 | 78 | 75 | 67.3 | 64.3 |
| 31.25 | 23.6 | 10.4 | 540 | 25 | 78 | 75 | 65.4 | 62.4 |
| 62.5 | 21.5 | 14.9 | 539 | 25 | 75.5 | 72.5 | 59.4 | 56.4 |
| 100 | 20.1 | 19.0 | 538 | 25 | 72.4 | 69.4 | 55.3 | 52.3 |
| 200 | 18.0 | 27.5 | 537 | 25 | 67.9 | 64.9 | 49.3 | 46.3 |
| 250 | 17.3 | 31.0 | 536 | 25 | 66.4 | 63.4 | 47.3 | 44.3 |
| 300 | 17.3 | 34.2 | 536 | 25 | 65.2 | 62.2 | 45.8 | 42.8 |
| 400 | 17.3 | 40.0 | 536 | 25 | 63.4 | 60.4 | 43.3 | 40.3 |
| 500 | 17.3 | 45.3 | 536 | 25 | 61.9 | 58.9 | 41.3 | 38.3 |
| Note: The above transmission performance for the 100M,20±2 degree under the condition testedn testedn tested | ||||||||
