Steam Generator, Fan Coil Unit Humidifier (Mini S)

Steam Generator, Fan Coil Unit Humidifier (Mini S)

蒸汽发生器,风机盘管加湿器(Mini S)

2+
178 USD
5+
300 USD

加入意向
型号。 迷你的
类型 超声
证明 ce,rohs,iso,fc
加湿方法 非雾
定时功能 具有定时功能
使用 自动风扇
运输包装 作为客户要求
起源 中国制造
样式 天花板
用法 家庭,工业
湿度控制 自动
电源类型 交流电源
缺水关机保护 缺水断电保护
商标 Hessway
规范 ce fcc ul csa etl
HS编码 8509809000
产品说明
MINI系列加湿器适用于需要小型蒸汽加湿器的小型交流电机组,如风机盘管,小型新鲜空气机组,恒温恒湿室,特别适用于天花板或其他高度限制的场所。
特征
紧凑的设计,特别是260mm的高度,使得该装置可以安装在里面的天花板内。
智能控制器确保加湿器在单元连接到水和电时自动运行。
加湿器具有一体化结构,铝合金外壳,确保无锈。
加湿器很容易固定或拆卸到安装板上。
在不去除加湿器的情况下,可以用一只手替换圆筒。
配备多个安全保护系统。
应用
净化空调,AHU,风机盘管单元,恒温恒湿空调,冷库,文物保存,档案室,实验室,电脑室,通讯室,办公室,家庭房,酒店,手术室,印刷厂,电子工厂,香烟工厂,制药厂,纺织厂等。
领先技术
世界上唯一的电极加湿器是32位低功耗微处理芯片;
世界上唯一使用神经网络和人工智能算法的电极加湿器控制器;
世界唯一的电极加湿器,支持WIFI通信,用于监控和控制网络;
世界上唯一内置微型气缸的智能气缸工作过程控制;
世界上唯一具有高档漏电保护功能的电极加湿器;
世界上唯一的超级清洁功能电极加湿器;
模型 蒸汽容量
(千克/小时)
电源 功率
千瓦
适合面积
m2
适合空气
m3/
宽度
毫米
厚度
毫米
高度
毫米
重量
公斤
迷你-1D 0.5-1.0 AC220V±10%usmn; 10%usmn;10% 0.75 20-100 100-200 490 380 260 6.5
微型2D 0.5-2.0 1.50 20-200 200-400
迷你3D 0.5-3.0 2.25 20-300 300-600
迷你6D 3.0-6.0 4.50 300-600 500-1200 710 380 260 9
Model NO. MINI S
Type Ultrasonic
Certification CE, RoHS, ISO, FC
Humidification Method Non-mist
Timing Function With Timing Function
Use Automatic Fan
Transport Package as Customer Requirements
Origin Made in China
Style Ceiling
Usage Home, Industry
Humidity Control Automatic
Power Type AC Source
Water Shortage Power-off Protection With Water Shortage Power-off Protection
Trademark Hessway
Specification CE FCC UL CSA ETL
HS Code 8509809000
Product descriptions

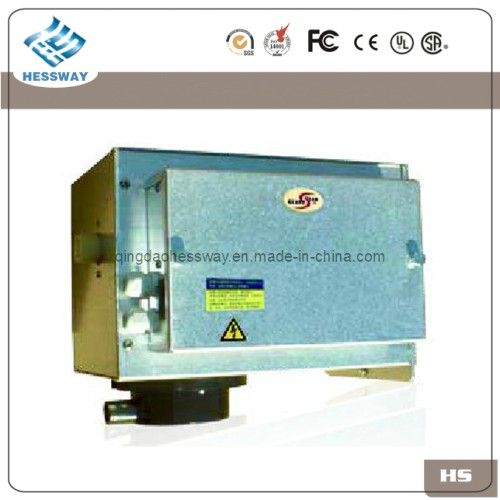

MINI series humidifier is used for small AC units,such as fan coil units,small fresh air units,constant temperature and humidity chambers,when a small steam humidifier is needed.It is particularly suitable for installation in ceiling or other height-restricted places.
Features
The compact design,especially the height of 260mm,enables the unit be installed inside thenarrow ceiling.
The inteligent controller ensures the humidifier run automatically when unit connects to water and electricity.
The humidifier has an integrated structure,aluminum alloy enclosure,which ensures rust-free.
The humidifier is easily fixed or removed to the mounting plate.
Without removing the humidifier,the cylinder is able to be replaced with one hand.
Equipped with multiple safe protection systems.
Applications
Purifying air conditioning,AHU,fan coil unit,constant temperature and humidity air conditioning,cold storage,heritage preservation,archives,laboratories,computer rooms,communications room,office,family room,hotel,operating room,printing plants,electronic factories,cigarette factories,pharmaceutical plants,textile mills,etc.
Leading technology
The world's only electrode humidifier that 32-bit low-power micro-processing chip;
The world's only electrode humidifier controller that uses neural networks and artificial intellingence algorithms;
The world only electrode humidifier that supports WIFI communications for monitoring and controlling networks;
The world's only built-in micro-chip in cylinder for intelligent cylinder working process control;
The world's only electrode humidifier who has high-grade electric leakage protection function;
The world's only super-cleaning functioned electrode humidifier;
Model Steam Capacity
(kg/h)
Power supply Power
KW
Suitable for area
m2
Suitable for air
m3/
Width
mm
Thickness
mm
Height
mm
Weight
kg
MINI-1D 0.5-1.0 AC220V±10%usmn;10%usmn;10% 0.75 20-100 100-200 490 380 260 6.5
MINI-2D 0.5-2.0 1.50 20-200 200-400
MINI-3D 0.5-3.0 2.25 20-300 300-600
MINI-6D 3.0-6.0 4.50 300-600 500-1200 710 380 260 9
