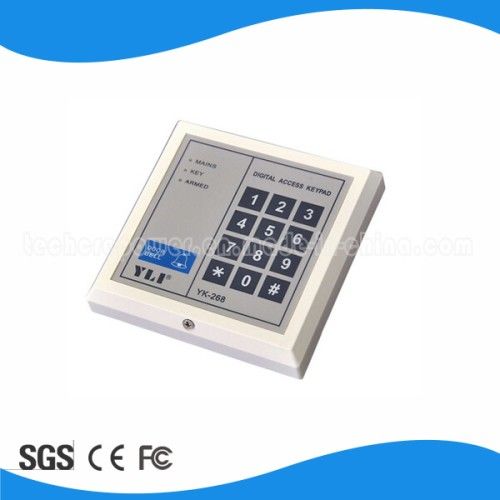

Plastic RFID Card Reader Door Access Control Keypad
塑料RFID读卡器门禁控制键盘
议价
加入意向| 型号。 | rf21读写器 |
| 卡的种类 | EM |
| 外形尺寸 | 117lx117dx21W（MM） |
| 当前排水 | <30mA;30mA |
| 录音容量 | 250个代码或1个通用代码 |
| 身份证类型 | Em卡，125kHz |
| 商标 | Techcrepower |
| 起源 | 深圳 |
| 类型 | 身份证读卡器 |
| 应用 | 停车场，医院，图书馆，公司，银行，商店 |
| 工作电压 | 12VDC |
| 继电器输出触点 | No和Nc干接点，Max Ratin接触电流 |
| 读卡距离 | 最大距离5cm |
| 操作模式 | 数字代码操作 |
| 规范 | CE |
Arial'vertical-align：baseline; line-height：24px; color：rgb（0,0,0）; font-size：18px; margin：0px 0px 10px; font-family：Arial，Helvetica，sans-serif; - 重量：400; padding：0px; border：0px;'>塑料RFID读卡器门禁控制键盘
介绍：
RF21是专为电源门锁和安全系统设计的门禁控制，键盘可以读取卡而不用触摸，也可以设计数字键盘。您可以通过三种不同的方式打开门：用导入门打开门
产品规格：
优点：
简单编程，操作简便。采用块功能稳定读卡器。键盘锁定30秒后10个错误的条目。可连接门开门和门铃。电源故障中的非易失性存储器。防拆开关可以连接到安全报警系统。
介绍：
RF21是专为电源门锁和安全系统设计的门禁控制，键盘可以读取卡而不用触摸，也可以设计数字键盘。您可以通过三种不同的方式打开门：用导入门打开门
产品规格：
| 产品参数 | 参数说明 |
| 外形尺寸 | 117Lx117Dx21W（毫米） |
| 工作电压 | 12VDC |
| 当前排水 | <30mA30mA |
| 继电器输出触点 | NO和NC干接点，最大接触电流3A / 24VDC |
| 录音容量 | 250ID卡，250代码或1个通用代码 |
| 读卡距离 | 最大距离5cm |
| 身份证类型 | em卡，125khz |
| 操作模式 | 身份证操作，数字代码操作，身份证+数字代码操作 |
| 工作温度 | -20℃-60℃-60℃eg;C-60°C |
| 工作湿度 | 10%-90% |
| 重量 | 0.14公斤 |
优点：
简单编程，操作简便。采用块功能稳定读卡器。键盘锁定30秒后10个错误的条目。可连接门开门和门铃。电源故障中的非易失性存储器。防拆开关可以连接到安全报警系统。
| Model NO. | RF21 RFID Reader |
| Card Type | EM |
| Dimensions | 117lx117dx21W(Mm) |
| Current Drain | <30mA;30mA |
| Capacity of Recording | 250codes or 1 Common Code |
| Type of ID Card | Em Card,125kHz |
| Trademark | Techcrepower |
| Origin | Shenzhen |
| Type | ID Card Reader |
| Application | Parking, Hospital, Library, Company, Bank, Store |
| Operating Voltage | 12VDC |
| Relay Output Contacts | No and Nc Dry Contact,Max Ratin of Contact Current |
| Card Reading Distance | Max Distance 5cm |
| Operation Mode | Digital Code Operation |
| Specification | CE |
Arial'vertical-align:baseline;line-height:24px;color:rgb(0,0,0);font-size:18px;margin:0px 0px 10px;font-family:Arial, Helvetica, sans-serif;font-weight:400;padding:0px;border:0px;'﹥Plastic RFID Card Reader Door Access Control keypad
Introduction:
RF21 is an access control designed for power door lock as well as security system, and the keypad can read the card without touching it , it is also designed with numeric keypad. You can open the door in three different ways:open the door with induct
Specifications:
Advantage:
Simple Programming,Easy Operation. Adopt function steady card reader of blocks. Keypad Locks for 30 Seconds After 10 False Entries. Can be Connected with Door-open Button and Doorbell. Non-volatile Memory in Power Failure. Tamper Switch can be Connected to Security Alarm System.
Introduction:
RF21 is an access control designed for power door lock as well as security system, and the keypad can read the card without touching it , it is also designed with numeric keypad. You can open the door in three different ways:open the door with induct
Specifications:
| Product Parameter | Parameter Description |
| Dimensions | 117Lx117Dx21W(mm) |
| Operating Voltage | 12VDC |
| Current Drain | <30mA30mA |
| Relay Output Contacts | NO and NC Dry Contact,Max Ratin of Contact Current 3A/24VDC |
| Capacity of Recording | 250ID Cards,250Codes or 1 Common Code |
| Card Reading Distance | Max Distance 5cm |
| Type of ID Card | EM card,125KHZ |
| Operation Mode | ID Card Operation,Digital Code Operation,ID Card+Digital Code Operatio |
| Operating Temperature | -20°C-60°C-60°Ceg;C-60°C |
| Operating Humidity | 10%-90% |
| Weight | 0.14kg |
Advantage:
Simple Programming,Easy Operation. Adopt function steady card reader of blocks. Keypad Locks for 30 Seconds After 10 False Entries. Can be Connected with Door-open Button and Doorbell. Non-volatile Memory in Power Failure. Tamper Switch can be Connected to Security Alarm System.
