| Model NO. | TS203F |
| Work Mode | Ap,Wds,Bridge Model, |
| Transmission Rate | 150Mbps |
| Antenna Gain | 23dBi |
| Certification | ISO9001, RoHS, SGS, FCC, CE |
| Poe | Support |
| Wireless Standard | 802.11b/G/N |
| Trademark | PHYNAM |
| Origin | Guangdong China |
| Type | Wireless Access Point |
| WiFi Antenna Type | Built-in |
| Voltage | Poe:12-24V |
| Color | White |
| Interface | 2 RJ45 Port in The Back |
| Size | 235 × 88 ×40mm88 ×40mm;40mm88 ×40mm |
| CPU Core | Ar7240 RF:Ar9285 |
| Specification | CE/EMC, CE/LVD, FCC Certification |
| HS Code | 851762360 |

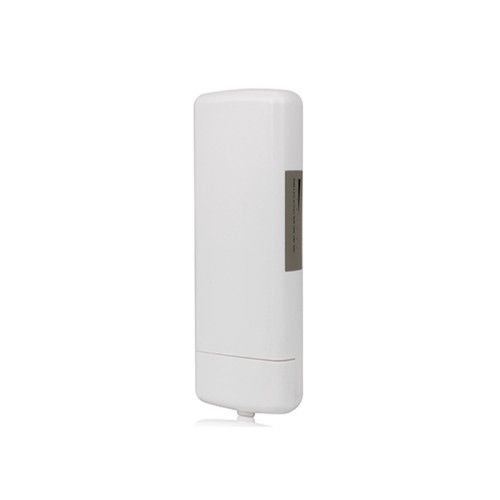

TS203F 2.4G 150M outdoor high power wireless access point CPE using atheros AR7240 and AR9285chipset,high performance and more stable.Bull-in 14dBi Antenna,A larger coverage.
Products Specs:
Products Specs:
Chipset | CPU:AR7240 RF:AR9285 | ||
| Standard | IEEE802.3u MDI / MDIX 10/100 fast Ethernet IEEE802.11b/g wireless LAN port IEEE 802.11n wireless standard | ||
| DDR | 32Mbyte | ||
| Flash | 8Mbyte | ||
| PoE power | 12-24V(support up to 5m power over Ethernet) | ||
| CPU frequency | 400MHz | ||
| Antenna | Built-in 14dBi Directional dual polarized antenna lobe (level 60 DHS vertical lobe 25 DHS) | ||
| 1×1 (1Tx,1 Rx)x,1 Rx)x,1 Rx) | |||
| Wire port | 2 RJ45 PORT | ||
| LAN rate | 10/100Mbps | ||
| Reset button | Make the equipment factory default | ||
| Upgrade | Web upgrade,TFTP | ||
| LED indicator | Power Power light: Power on/system startup Power off:power off/system down cable light Off:Ethernet port connection is broken ON:Ethernet port work Flashing :transmit data Wireless indicator(AP mode) Off:wireless OFF flashing :transmit data wireless indicator( Client mode) Four lights represent signal intensity, four lights normally on all represent the strongest signal, Four lights will shine all signal is the weakest | ||
| Power require | 18-24VDC@0.5A | ||
| Transmit rate | 11b: 11M, 5.5M, 2M, 1Mbps 11g: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps 11N:6.5M, 13M, 13.5M,19.5M, 26M,27M, 39M, 40.5M,52M, 54M, 58.5M, 65M,81M,108M,121.5M,135M,150Mbps | ||
| Transmission type | DSSS | ||
| Modulation method | OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK | ||
| Rf frequency range | China : 2412 GHz ~ 2472GHz (channel1 ~ channel13) | ||
| Power consumption (24v input) | <= 6W | ||
| Maximum output power@25ºCordm;Cordm;C (±2dB)smn;2dB)smn;2dB) | 200MW/23DB | ||
| Sensitivity | IEEE 802.11b 1Mbps<=-95dBm5dBm 11Mbps<=-89dBm9dBm | IEEE 802.11g 6Mbps<=-92dBm2dBm 54Mbps<=-73dBm3dBm | IEEE 802.11n HT 20 MCS 0<=-86dBm6dBm MCS 7<=-68dBm8dBm HT 40 MCS 0<=-83dBm3dBm MCS 7<=-65dBm5dBm |
| Physical specifications | |||
| Feature | Instructions | ||
| Size | 235 × 88 ×40mm8 ×40mms;40mm8 ×40mm | ||
| weight | <=500g | ||
| Enclosed | Highly reliable waterproof performance | ||
| Environmental specifications | |||
| Feature | Instruction | ||
| Operation temp. | -20~+70°Cdeg;Cdeg;C | ||
| Operation Hum. | 10%~95% RH(No condensation) | ||
| Storage temp. | -40~+85°Cdeg;Cdeg;C | ||
| Storage Hum. | 10%~95% RH( No condensation ) | ||
| Environmental protection | Follow the RoHs standard | ||
