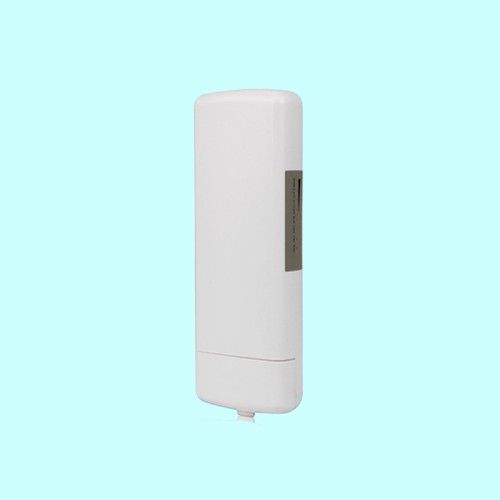

2.4G Wireless Access Point CPE Bridge Atheros Solution (TS203F)
2.4G无线接入点CPE Bridge Atheros解决方案（TS203F）
| 型号。 | ts203f |
| 工作模式 | Ap，Wds，桥梁模型， |
| 传输速率 | 150Mbps的 |
| 天线增益 | 23dBi |
| 证明 | iso9001，rohs，sgs，fcc，ce |
| 坡 | 支持 |
| 无线标准 | 的802.11b / g / n的 |
| 商标 | phynam |
| 起源 | 广东中国 |
| 类型 | 无线接入点 |
| WiFi天线类型 | 内建的 |
| 电压 | 坡：12-24V |
| 颜色 | 白色 |
| 接口 | 2 RJ45端口在后面 |
| 尺寸 | 235×88×40mm88×40mm;40mm88 ×40mm |
| cpu核心 | ar7240 rf：ar9285 |
| 规范 | ce / emc，ce / lvd，fcc认证 |
| HS编码 | 851762360 |
TS203F 2.4G 150M户外高功率无线接入点CPE采用Atheros AR7240和AR9285芯片组，性能更高，性能更稳定。内置14dBi天线，覆盖面更大。
产品规格：
芯片组 | cpu：ar7240 rf：ar9285 | ||
| 标准 | IEEE802.3u MDI / MDIX 10/100快速以太网 IEEE802.11b / g无线局域网端口 IEEE 802.11n无线标准 | ||
| DDR | 32Mbyte | ||
| 闪 | 现象8字节 | ||
| PoE电源 | 12-24V（以太网支持高达5m的电源） | ||
| CPU频率 | 400MHz的 | ||
| 天线 | 内置14dBi方向双极化天线波瓣（60级DHS垂直波瓣25 DHS） | ||
| 1×1（1Tx，1 Rx）x，1 Rx）x,1 Rx) | |||
| 电线端口 | 2 rj45端口 | ||
| 局域网速率 | 个10 / 100Mbps | ||
| 复位按钮 | 使设备出厂默认 | ||
| 升级 | 网页升级，TFTP | ||
| LED指示灯 | 功率 电源指示灯：开机/系统启动 关机：关机/系统关机 电缆灯 关：以太网端口连接断开 ON：以太网端口工作 闪烁：发送数据 无线指示灯（AP模式） 关：无线关机 闪烁：发送数据 无线指示灯（客户端模式） 四个灯代表信号强度，四个灯常亮表示最强信号， 四灯会发光，所有信号是最弱的 | ||
| 电源要求 | 18-24vdc@0.5a | ||
| 传输速率 | 11b：11M，5.5M，2M，1Mbps 11g：54m，48m，36m，24m，18m，12m，9m，6mbps 11n：6.5m，13m，13.5m，19.5m，26m，27m，39m，40.5m，52m，54m， 58.5m，65m，81m，108m，121.5m，135m，150mbps | ||
| 传输类型 | DSSS | ||
| 调制方式 | OFDM / BPSK / QPSK / CCK / DQPSK / DBPSK | ||
| Rf频率范围 | 中国：2412 GHz〜2472GHz（channel1〜channel13） | ||
| 功耗（24v输入） | <= 6W | ||
| 最大输出功率@25ºCordm; Cordm;C （±2分贝）SMN;2分贝）smn;2dB) | 200MW /23分贝 | ||
| 灵敏度 | ieee 802.11b 为1Mbps<=-95dBm5dBm 11Mbps的<=-89dBm9dBm | ieee 802.11g 为6Mbps<=-92dBm2dBm 54Mbps的<=-73dBm3dBm | ieee 802.11n ht 20 mcs 0<=-86dBm6dBm mcs 7<=-68dBm8dBm ht 40 mcs 0<=-83dBm3dBm mcs 7<=-65dBm5dBm |
| 物理规格 | |||
| 特征 | 说明 | ||
| 尺寸 | 235×88×40mm8×40mms;40mm8 ×40mm | ||
| 重量 | <=500g | ||
| 封闭式 | 防水性能高可靠 | ||
| 环境指标 | |||
| 特征 | 指令 | ||
| 操作温度 | -20〜+ 70°CDEG; C ^deg;C | ||
| 操作嗡嗡声 | 10％〜95％RH（无结露） | ||
| 储存温度 | -40〜+ 85°CDEG; C ^deg;C | ||
| 存储嗡嗡声 | 10％〜95％RH（无结露） | ||
| 环保 | 遵循RoHs标准 | ||
| Model NO. | TS203F |
| Work Mode | Ap,Wds,Bridge Model, |
| Transmission Rate | 150Mbps |
| Antenna Gain | 23dBi |
| Certification | ISO9001, RoHS, SGS, FCC, CE |
| Poe | Support |
| Wireless Standard | 802.11b/G/N |
| Trademark | PHYNAM |
| Origin | Guangdong China |
| Type | Wireless Access Point |
| WiFi Antenna Type | Built-in |
| Voltage | Poe:12-24V |
| Color | White |
| Interface | 2 RJ45 Port in The Back |
| Size | 235 × 88 ×40mm88 ×40mm;40mm88 ×40mm |
| CPU Core | Ar7240 RF:Ar9285 |
| Specification | CE/EMC, CE/LVD, FCC Certification |
| HS Code | 851762360 |
TS203F 2.4G 150M outdoor high power wireless access point CPE using atheros AR7240 and AR9285chipset,high performance and more stable.Bull-in 14dBi Antenna,A larger coverage.
Products Specs:
Chipset | CPU:AR7240 RF:AR9285 | ||
| Standard | IEEE802.3u MDI / MDIX 10/100 fast Ethernet IEEE802.11b/g wireless LAN port IEEE 802.11n wireless standard | ||
| DDR | 32Mbyte | ||
| Flash | 8Mbyte | ||
| PoE power | 12-24V(support up to 5m power over Ethernet) | ||
| CPU frequency | 400MHz | ||
| Antenna | Built-in 14dBi Directional dual polarized antenna lobe (level 60 DHS vertical lobe 25 DHS) | ||
| 1×1 (1Tx,1 Rx)x,1 Rx)x,1 Rx) | |||
| Wire port | 2 RJ45 PORT | ||
| LAN rate | 10/100Mbps | ||
| Reset button | Make the equipment factory default | ||
| Upgrade | Web upgrade,TFTP | ||
| LED indicator | Power Power light: Power on/system startup Power off:power off/system down cable light Off:Ethernet port connection is broken ON:Ethernet port work Flashing :transmit data Wireless indicator(AP mode) Off:wireless OFF flashing :transmit data wireless indicator( Client mode) Four lights represent signal intensity, four lights normally on all represent the strongest signal, Four lights will shine all signal is the weakest | ||
| Power require | 18-24VDC@0.5A | ||
| Transmit rate | 11b: 11M, 5.5M, 2M, 1Mbps 11g: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps 11N:6.5M, 13M, 13.5M,19.5M, 26M,27M, 39M, 40.5M,52M, 54M, 58.5M, 65M,81M,108M,121.5M,135M,150Mbps | ||
| Transmission type | DSSS | ||
| Modulation method | OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK | ||
| Rf frequency range | China : 2412 GHz ~ 2472GHz (channel1 ~ channel13) | ||
| Power consumption (24v input) | <= 6W | ||
| Maximum output power@25ºCordm;Cordm;C (±2dB)smn;2dB)smn;2dB) | 200MW/23DB | ||
| Sensitivity | IEEE 802.11b 1Mbps<=-95dBm5dBm 11Mbps<=-89dBm9dBm | IEEE 802.11g 6Mbps<=-92dBm2dBm 54Mbps<=-73dBm3dBm | IEEE 802.11n HT 20 MCS 0<=-86dBm6dBm MCS 7<=-68dBm8dBm HT 40 MCS 0<=-83dBm3dBm MCS 7<=-65dBm5dBm |
| Physical specifications | |||
| Feature | Instructions | ||
| Size | 235 × 88 ×40mm8 ×40mms;40mm8 ×40mm | ||
| weight | <=500g | ||
| Enclosed | Highly reliable waterproof performance | ||
| Environmental specifications | |||
| Feature | Instruction | ||
| Operation temp. | -20~+70°Cdeg;Cdeg;C | ||
| Operation Hum. | 10%~95% RH(No condensation) | ||
| Storage temp. | -40~+85°Cdeg;Cdeg;C | ||
| Storage Hum. | 10%~95% RH( No condensation ) | ||
| Environmental protection | Follow the RoHs standard | ||
