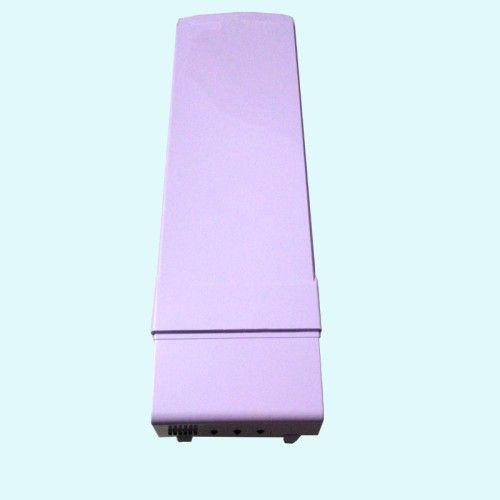

5GHz Mimo Junior Outdoor Access Point CPE (MMJ342)
5GHz Mimo小型户外接入点CPE（MMJ342）
| 型号。 | mmj342 |
| 工作模式 | Ap，Wds，桥梁模型， |
| 传输速率 | 300Mbps的 |
| 天线增益 | 27dBm时 |
| 证明 | iso9001，rohs，sgs，fcc，ce |
| 坡 | 支持 |
| 无线标准 | 的802.11b / g / n的 |
| 商标 | phynam |
| 起源 | 广东中国 |
| 类型 | 无线接入点 |
| WiFi天线类型 | 内建的 |
| 电压 | 坡：48V |
| 颜色 | 白色 |
| 接口 | 1个RJ45端口在后面 |
| 尺寸 | 260x120x50 |
| cpu核心 | Atheros9344 |
| 规范 | ce / emc，ce / lvd，fcc认证 |
| HS编码 | 851762360 |
特征
IEEE 802.11a / n兼容
Atheros 560MHz网络处理器AR9342
5G输出功率高达26dBm
高达300Mbps的物理数据速率
增强灵敏度性能
内置17dBi @ 5GHz双极化天线
天线对准现场调查 - LED /蜂鸣器
距离调整远程传输
集成以太网供电
防水套管
2 x RP-SMA外部天线公头连接器（可选）1
应用
802.11a / n AP
点对点/指向多点
CPE
技术规格
系统信息
处理器Qualcomm-Atheros AR9342
内存大小64MB DDR2
也不闪8MB
天线集成5GHz 17dBi定向双极化天线
以太网2 FE端口，带自动MDI / X
功耗5.5w
电源方式被动PoE：24V
符合RoHS是的
湿度操作：5％至95％（非冷凝）存储：最大90％（无冷凝）
温度范围：-20ºC至70ºC储存：-40ºC至90ºC0ºC至90ºC 90ºC0ºC to 90ºC
尺寸（高x宽x深）278.5 x 122.2 x 94.5（mm）
1取决于订购配置
固件功能
多个SSID
每个无线电支持多达16个虚拟接入点（VAP），具有唯一的BSSID。每个VAP都可以配置自己的安全性
2.长距离支持
适用于长距离无线部署与专有长距离算法，用于ACK和CTS超时调整支持。
为参数提供推荐值，并允许手动微调以获得最佳性能。
3.可选频谱带宽支持
可选择在20MHz和40MHz频谱带宽上工作
17dBi @ 5GHz双极化天线
IEEE 802.11a / n兼容
Atheros 560MHz网络处理器AR9342
5G输出功率高达26dBm
高达300Mbps的物理数据速率
增强灵敏度性能
内置17dBi @ 5GHz双极化天线
天线对准现场调查 - LED /蜂鸣器
距离调整远程传输
集成以太网供电
防水套管
2 x RP-SMA外部天线公头连接器（可选）1
应用
802.11a / n AP
点对点/指向多点
CPE
技术规格
系统信息
处理器Qualcomm-Atheros AR9342
内存大小64MB DDR2
也不闪8MB
天线集成5GHz 17dBi定向双极化天线
以太网2 FE端口，带自动MDI / X
功耗5.5w
电源方式被动PoE：24V
符合RoHS是的
湿度操作：5％至95％（非冷凝）存储：最大90％（无冷凝）
温度范围：-20ºC至70ºC储存：-40ºC至90ºC0ºC至90ºC 90ºC0ºC to 90ºC
尺寸（高x宽x深）278.5 x 122.2 x 94.5（mm）
1取决于订购配置
固件功能
多个SSID
每个无线电支持多达16个虚拟接入点（VAP），具有唯一的BSSID。每个VAP都可以配置自己的安全性
2.长距离支持
适用于长距离无线部署与专有长距离算法，用于ACK和CTS超时调整支持。
为参数提供推荐值，并允许手动微调以获得最佳性能。
3.可选频谱带宽支持
可选择在20MHz和40MHz频谱带宽上工作
| 固件信息 | |
| 操作模式 | 接入点 站 接入点WDS 站WDS |
| 万式 | 静态IP 动态IP PPPoE协议 DHCP |
| 设备管理 | http / https网络服务器 snmp v3 Telnet / Secure Shell（SSH） |
| 数据采集和通知ation | 系统日志 内核日志 |
| 高级功能 | 内置DHCP服务器 传输功率控制（每步1 dB） 封闭系统（禁止SSID） 传输速率控制 生成树协议 |
| 其他突出特点 | 描述 |
| 远程参数设置 | 适用于具有高接收灵敏度的长距离无线部署 |
| CPE点对点（PtP） | 理想的CPE设备连接PtP与中央AP |
| ieee 802.11h（dfs＆tpc）tpc） TPC) | 通过支持基于标准的方式实现全球运营 动态频率选择（DFS）和传输功率控制（TPC） |
| SNMP | 对于多个SSID，固件升级。易于客户与基于SNMP的控制器集成 |
| 信号强度LED指示灯 | 4步进行条。每个条表示信号强度的逐渐增加，4条表示最大信号强度（100％） |
| VLAN管理 | 可以通过VLAN ID管理AP |
| VLAN Ethernet Trunk | 将VLAN ID映射到多个SSID |
| Chillispot（Hotspot） | 可以使用/不带Radius服务器 |
| 的OpenWRT衍生 | 轻松添加OpenWRT的功能 |
| 自定义（带SDK） | 客户可以添加OpenWRT的软件包，并且还可以自行修改网页，并通过SDK批准 |
17dBi @ 5GHz双极化天线
| 获得 | 17dBi |
| 辐射 | 定向 |
| 频率范围 | 5.1-5.9 ghz |
| 极化 | 双极化 |
| 方位-3dB波束宽度 | 水平（端口1）：30度 垂直（端口2）：33度 |
| 海拔-3dB波束宽度 | 水平（端口1）：17度 垂直（端口2）：17度 |
| 隔离 | -40dB（最大） |
| 前后比 | -30dB（最大） |
| VSWR | 水平（端口1）： < 1: 1.87; Vertical (Port 2): < 1: 1.551: 1.55 |
| 交叉极化隔离 | -28dB（最大） |
| SIDELOBE | <-12dB12dB |
| Model NO. | MMJ342 |
| Work Mode | Ap,Wds,Bridge Model, |
| Transmission Rate | 300Mbps |
| Antenna Gain | 27dBm |
| Certification | ISO9001, RoHS, SGS, FCC, CE |
| Poe | Support |
| Wireless Standard | 802.11b/G/N |
| Trademark | PHYNAM |
| Origin | Guangdong China |
| Type | Wireless Access Point |
| WiFi Antenna Type | Built-in |
| Voltage | Poe:48V |
| Color | White |
| Interface | 1 RJ45 Port in The Back |
| Size | 260X120X50 |
| CPU Core | Atheros9344 |
| Specification | CE/EMC, CE/LVD, FCC Certification |
| HS Code | 851762360 |
Features
IEEE 802.11a/n compliant
Atheros 560MHz Networking Processor AR9342
5G Up to 26dBm output power
Up to 300Mbps physical data rates
Enhanced sensitivity performance
Built-in 17dBi@5GHz dual-polarization antenna
Antenna Alignment Site Survey - LEDs/Buzzer
Distance Adjustment for long range transmission
Integrated Power-over-Ethernet
Weatherproof casing
2 x RP-SMA Male Connector for External Antenna (optional)1
Applications
802.11a/n AP
Point to Point / Point to MultiPoint
CPE
Technical Specifications
System Information
Processor Qualcomm-Atheros AR9342
Memory Size 64MB DDR2
NOR Flash 8MB
Antenna Integrated 5GHz 17dBi directional dual-polarization antenna
Ethernet 2 FE ports with Auto-MDI/X
Power Consumption 5.5w
Power method Passive PoE:24V
RoHS Compliant Yes
Humidity Operating: 5% to 95% (non-condensing) Storage: Max.90% (non-condensing)
Temperature Range Operating:-20ºC to 70ºC Storage: -40ºC to 90ºC0ºC to 90ºC 90ºC0ºC to 90ºC
Dimensions (H x W x D) 278.5 x 122.2 x 94.5 (mm)
1 Depends on ordering configuration
Firmware Features
1.Multiple SSID
Supports up to 16 virtual access points (VAP) per radio, with unique BSSID. Each VAP can configure their own security
2.Long Range Support
Suitable for long range wireless deployment with Proprietary Long Distance Algorithm for ACK and CTS timeout adjustment support.
Provides recommended values for the parameters as well as allow for manual fine-tuning for optimal performance.
3.Selectable Spectrum Bandwidth Support
Options to select operation over 20MHz and 40MHz spectrum bandwidth
17dBi@5GHz dual-polarization antenna
IEEE 802.11a/n compliant
Atheros 560MHz Networking Processor AR9342
5G Up to 26dBm output power
Up to 300Mbps physical data rates
Enhanced sensitivity performance
Built-in 17dBi@5GHz dual-polarization antenna
Antenna Alignment Site Survey - LEDs/Buzzer
Distance Adjustment for long range transmission
Integrated Power-over-Ethernet
Weatherproof casing
2 x RP-SMA Male Connector for External Antenna (optional)1
Applications
802.11a/n AP
Point to Point / Point to MultiPoint
CPE
Technical Specifications
System Information
Processor Qualcomm-Atheros AR9342
Memory Size 64MB DDR2
NOR Flash 8MB
Antenna Integrated 5GHz 17dBi directional dual-polarization antenna
Ethernet 2 FE ports with Auto-MDI/X
Power Consumption 5.5w
Power method Passive PoE:24V
RoHS Compliant Yes
Humidity Operating: 5% to 95% (non-condensing) Storage: Max.90% (non-condensing)
Temperature Range Operating:-20ºC to 70ºC Storage: -40ºC to 90ºC0ºC to 90ºC 90ºC0ºC to 90ºC
Dimensions (H x W x D) 278.5 x 122.2 x 94.5 (mm)
1 Depends on ordering configuration
Firmware Features
1.Multiple SSID
Supports up to 16 virtual access points (VAP) per radio, with unique BSSID. Each VAP can configure their own security
2.Long Range Support
Suitable for long range wireless deployment with Proprietary Long Distance Algorithm for ACK and CTS timeout adjustment support.
Provides recommended values for the parameters as well as allow for manual fine-tuning for optimal performance.
3.Selectable Spectrum Bandwidth Support
Options to select operation over 20MHz and 40MHz spectrum bandwidth
| Firmware Information | |
| Operating Modes | Access Points Station Access Points WDS Station WDS |
| WAN Type | Static IP Dynamic IP PPPoE DHCP |
| Device Management | HTTP / HTTPs Web Server SNMP V3 Telnet / Secure Shell (SSH) |
| Data Capture & Notificationationation | System Log Kernel Log |
| Advanced Features | Built-in DHCP server Transmission Power Control (One dB per step) Closed System (Suppress SSID) Transmission Rate Control Spanning Tree Protocol |
| Other Prominent Features | Description |
| Long Range Parameter Settings | Suitable for Long Range wireless deployment with high receiver sensitivity |
| CPE Point-to-Point (PtP) | Ideal as CPE device connecting PtP with a central AP |
| IEEE 802.11h (DFS & TPC) TPC) TPC) | Enables worldwide operation through support for standards-based Dynamic Frequency Selection (DFS) and Transmission Power Control (TPC) |
| SNMP | For multiple SSID, firmware upgrades. Easy for customers to integrate with SNMP-based controller |
| Signal Strength LEDs Indicators | 4 Step Progressive Bars. Each bar represents a progressive increase in Signal strength, with 4 bars representing maximum signal strength (100%) |
| VLAN Management | Can manage the AP through VLAN ID |
| VLAN Ethernet Trunk | Map VLAN IDs to multiple SSID |
| Chillispot (Hotspot) | Can use with/without Radius Server |
| OpenWRT-derived | Easy to add in features from OpenWRT |
| Customization (with SDK) | Customers can add in packages of OpenWRT, and also modify webpages on their own, with SDK upon approval |
17dBi@5GHz dual-polarization antenna
| Gain | 17dBi |
| Radiation | Directional |
| Frequency Range | 5.1-5.9 GHz |
| Polarization | Dual - Polarization |
| Azimuth -3dB Beamwidth | Horizontal(Port 1): 30 degrees Vertical(Port 2): 33degrees |
| Elevation -3dB Beamwidth | Horizontal(Port 1): 17 degrees Vertical(Port 2): 17degrees |
| Isolation | -40dB (Max) |
| Front-to-Back Ratio | -30dB (Max) |
| VSWR | Horizontal (Port 1) : < 1: 1.87; Vertical (Port 2): < 1: 1.551: 1.55 |
| Cross Polarisation Isolation | -28dB (Max) |
| SideLobe | <-12dB12dB |
