2.3GHz-2.7GHz Outdoor Wireless CPE
2.3GHz-2.7GHz室外无线CPE
| 型号。 | cpe023 |
| 工作模式 | AP + STA |
| 传输速率 | 300Mbps的 |
| 天线增益 | 23dBi |
| 证明 | iso9001，rohs，sgs，fcc，ce |
| 坡 | 支持 |
| 无线标准 | 的802.11b / g / n的 |
| 商标 | phynam |
| 起源 | 广东中国 |
| 类型 | WiFi天线 |
| WiFi天线类型 | 内建的 |
| 电压 | 坡：12-24V |
| 颜色 | 白色 |
| 接口 | 2 RJ45端口在后面 |
| 尺寸 | 235×88×40mm88×40mm;40mm88 ×40mm |
| cpu核心 | CPU：Ar9341trf：Ar9341 |
| 规范 | ce / emc，ce / lvd，fcc认证 |
| HS编码 | 851762360 |
2.3G-2.7GHz无线CPE室外有效降低了2.4GHz的干扰
概观
CPE023无线CPE基于AR9344芯片解决方案，支持2.3GHz-2.7GHz，有效降低2.4GHz的干扰。 CPE023是符合300Mbps 802.11n标准的高性能无线CPE。
数据表
外壳可选
常问问题
您销售的零件的保修是什么？
YINET销售的所有零件都符合所有制造商规格，并提供一年保修。一些定制产品可以承担三年保修。
2.如何修理破碎的产品，如POE开关，无线路由器和以太网交换机产品
通常我们为小价值产品提供免费替代模型。我们承担运费。对于大件物品或高价值产品，考虑到高运费和成本，我们可以提供PCBA，电源适配器或电源等免费部件。我们还可以提供远程指导。
你有什么付款方式？
我们通过T / T，L / C，Western Union，MoneyGram和PayPal接受付款;
你最小的订单是多少？
为了达到客户的满意，我们接受样品订单，甚至一件。
概观
CPE023无线CPE基于AR9344芯片解决方案，支持2.3GHz-2.7GHz，有效降低2.4GHz的干扰。 CPE023是符合300Mbps 802.11n标准的高性能无线CPE。
数据表
| 硬件规格 | |
| 项目 | 描述 |
| 中央处理器 | 阿特罗斯AR9344 |
| ram信息 | 64mb ram 8mb闪光 |
| 网络接口 | 2 * 10 / 100BASE-TX以太网端口 |
| POE | POE电源LAN2端口 |
| 工作频率 | 2300-2700mhz |
| 无线电源 | 28dBm时（640MW） |
| 天线 | 外置2.4G双极化天线（可选） |
| 指示符 | 1 *电源，2 *网络端口，4 *无线信号强度指示灯 |
| 复位按钮 | 1 |
| 电源 | 24V POE电源 |
| 接地界面 | 1 |
| 软件规格 | ||
| 项目 | 描述 | |
| 虚拟AP | 8 | |
| 第2/3层 功能 | IP设置 | 支持静态IP地址，DHCP Client / Server |
| 路由协议 | 支持 | |
| NTP | 支持 | |
| 无线 功能 | 无线模式 | CPE，Bridge，AP Repeater |
| 标准 | 的802.11b / g / n的 | |
| 路由模式 | 支持 | |
| WAN端口 | pppoe / dhcp客户端/固定ip | |
| 无线漫游 | 支持AP和CPE模式快速漫游 | |
| 无线流量控制 | VAPS和用户 | |
| SNMP＆VLAN; VLAN;VLAN | 支持 | |
| TDMA | 支持 | |
| 频道模式 | 20 / 40MHz的 | |
| 功率可调 | 支持 | |
| 自动量程 | 支持 | |
| 工具 | 网络速度测试 | 支持 |
| 现场检测/ 频道扫描 | 支持 | |
| 平 | 支持 | |
| 平卫犬 | 支持 | |
| 设备扫描 | 支持 | |
| 频率分析 | 支持 | |
| 天线校准 | 支持 | |
| 跟踪路由 | 支持 | |
| 安全政策 | 加密 | 64,128位wep，wpa，wpa2 |
| 认证 | 802.1x，MAC认证，PSK认证，WAPI认证 | |
| SSID绑定 | 支持 | |
| 用户隔离 | 支持AP层2转发抑制，支持虚拟AP（多SSID） | |
| DDOS | 支持 | |
| SSID隐藏 | 支持 | |
外壳可选
常问问题
您销售的零件的保修是什么？
YINET销售的所有零件都符合所有制造商规格，并提供一年保修。一些定制产品可以承担三年保修。
2.如何修理破碎的产品，如POE开关，无线路由器和以太网交换机产品
通常我们为小价值产品提供免费替代模型。我们承担运费。对于大件物品或高价值产品，考虑到高运费和成本，我们可以提供PCBA，电源适配器或电源等免费部件。我们还可以提供远程指导。
你有什么付款方式？
我们通过T / T，L / C，Western Union，MoneyGram和PayPal接受付款;
你最小的订单是多少？
为了达到客户的满意，我们接受样品订单，甚至一件。
| Model NO. | CPE023 |
| Work Mode | AP+STA |
| Transmission Rate | 300Mbps |
| Antenna Gain | 23dBi |
| Certification | ISO9001, RoHS, SGS, FCC, CE |
| Poe | Support |
| Wireless Standard | 802.11b/G/N |
| Trademark | PHYNAM |
| Origin | Guangdong China |
| Type | WiFi Antenna |
| WiFi Antenna Type | Built-in |
| Voltage | Poe:12-24V |
| Color | White |
| Interface | 2 RJ45 Port in The Back |
| Size | 235 × 88 ×40mm88 ×40mm;40mm88 ×40mm |
| CPU Core | CPU:Ar9341trf:Ar9341 |
| Specification | CE/EMC, CE/LVD, FCC Certification |
| HS Code | 851762360 |
2.3G-2.7GHz wireless CPE outdoor Effectively reduce the interference on 2.4GHz
Overview
CPE023 wireless CPE based on AR9344 chip solution,support 2.3GHz-2.7GHz to effectively reduce the interference on 2.4GHz. CPE023 is a 300Mbps 802.11n compliant high performance wireless CPE.
DATASHEET
Housing Case optional
FAQ
1.What is the warranty on the parts you sell?
All parts sold by YINET meet all of the manufactures specifications and carry one year warranty. Some customized products could carry up to three years warranty.
2.How to repair a broken product?such as POE switch,wireless router and Ethernet switch products
Usually we supply free substitute model for the small value products. and we bear the freight. For Big-ticket items or high value products,Considering the high freight and cost we can supply free parts such as PCBA,power adapter or power supply etc. We can also provide remote guidance.
3.What payment methods do you offer?
We accept payment via T/T, L/C,Western Union, MoneyGram and PayPal;
4. What is your minimum order?
To achieve customers' satisfaction, we accept sample order, even one Piece.
Overview
CPE023 wireless CPE based on AR9344 chip solution,support 2.3GHz-2.7GHz to effectively reduce the interference on 2.4GHz. CPE023 is a 300Mbps 802.11n compliant high performance wireless CPE.
DATASHEET
| Hardware specs | |
| Items | Description |
| CPU | Atheros AR9344 |
| RAM INFO | 64MB RAM 8MB FLASH |
| Network interface | 2*10/100BASE-TX Ethernet ports |
| POE | POE power supply on LAN2 ports |
| Work Frequency | 2300-2700MHz |
| Wireless power | 28dBm(640mW) |
| Antenna | External 2.4G dual polarized antenna (optional) |
| Indicator | 1*Power,2*Network Port,4*Wireless Signal Strength indicator |
| Reset button | 1 |
| Power supply | 24V POEpower supply |
| Grounding interface | 1 |
| Software specs | ||
| Item | Description | |
| Virtual AP | 8 | |
| Layer 2/3 Function | IP setting | Support the static IP address,DHCP Client/Server |
| Route protocol | Support | |
| NTP | Support | |
| Wireless Function | Wireless mode | CPE,Bridge,AP Repeater |
| Standard | 802.11b/g/n | |
| Route mode | Support | |
| WAN port | PPPoE/DHCP Client/ Fixed IP | |
| Wireless roaming | Support AP and CPE mode fast roaming | |
| Wireless Flow Control | VAPS and user | |
| SNMP&VLAN;VLAN;VLAN | Support | |
| TDMA | Support | |
| Channel mode | 20/40MHz | |
| power adjustable | Support | |
| Automatic range | Support | |
| Tools | Network speed test | Support |
| Site detection/ Channel scanning | Support | |
| Ping | Support | |
| Ping Guard dog | Support | |
| Device scan | Support | |
| Frequency analysis | Support | |
| Antenna calibration | Support | |
| Traceroute | Support | |
| Security policy | Encryption | 64,128 bits WEP,WPA,WPA2 |
| Authentication | 802.1x,MAC authentication,PSK authentication,WAPI authentication | |
| SSID binding | Support | |
| User isolation | Support AP layer 2 Forwarding inhibition,support virtual AP(multi SSID) | |
| DDOS | Support | |
| SSID hidden | Support | |

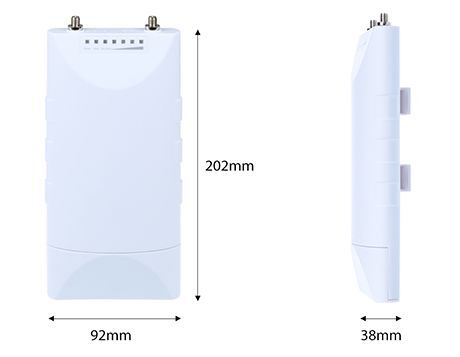

Housing Case optional
FAQ
1.What is the warranty on the parts you sell?
All parts sold by YINET meet all of the manufactures specifications and carry one year warranty. Some customized products could carry up to three years warranty.
2.How to repair a broken product?such as POE switch,wireless router and Ethernet switch products
Usually we supply free substitute model for the small value products. and we bear the freight. For Big-ticket items or high value products,Considering the high freight and cost we can supply free parts such as PCBA,power adapter or power supply etc. We can also provide remote guidance.
3.What payment methods do you offer?
We accept payment via T/T, L/C,Western Union, MoneyGram and PayPal;
4. What is your minimum order?
To achieve customers' satisfaction, we accept sample order, even one Piece.
