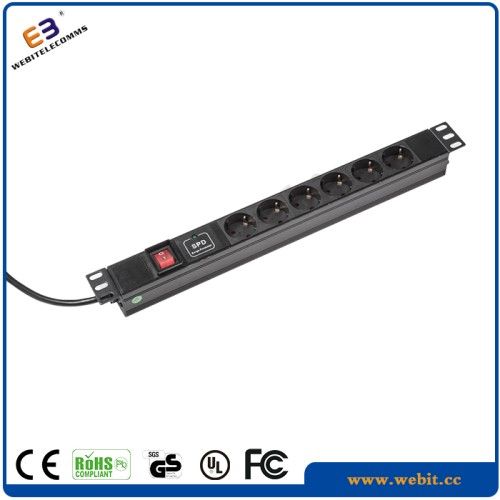

German Series PDU with Switch (WB-PDU-01)

German Series PDU with Switch (WB-PDU-01)

德语系列PDU(WB-PDU-01)

议价

加入意向
型号。 WB-PDU-01
商标 丝印,铝贴纸,橡皮贴
材料 铝壳或塑料
电源线 3G * 1.5mm2,2m长度
产量 din47440
规范 iso9001:2000,ce,rohs
HS编码 8517709000
证书 CE。 RoHS指令。 SGS
颜色 银色或黑色
高度 1u或1.5u
输入 din49441
商标 Webitelecomms
起源 宁波中国。
特征:
19'1U / 1.5U标准PDU插座,带有漏电保护器
铝合金外壳,由块烧PC,Guage:3G 14AWG + UL插头
根据客户要求,我们可以添加交流或直流显示
颜色:黑色或银色
儿童安全保护。
制动器保护,并融合。
---
选项功能
*主交换机适用于所有插座
*开关为每个插座
*电流表
*浪涌保护
*防雷保护
*断路器
* 指示灯
---
应用:
房间架,电脑室,通讯室,监控室,控制室,电子设备电源输入;办公室:办公电脑,传真机,复印机,投影机等办公设备;家庭:电视,冰箱,电脑,电话,拨号网络设备。
额定电流 16A
额定负载 2500W
额定电压 250V
家庭电压 230V
套接字数量 6种方式
尺寸 19" 1.5U
壳材料 不可燃PC模块,铝合金外壳
电缆类型 H05VV-F3G1.5mm 2×2.15ms; 2.15ms;2.15m
插头类型 IMQ16A插头
防触电等级 IP20
接地规定 与earting接触
连接电缆的方法 不可拆线
连接类型 焊接焊料
防触电等级 正常保护
存在百叶窗 带百叶窗
应用安装方法 便携式
Model NO. WB-PDU-01
Logo Silk Print, Aluminum Sticker, Rubber Sticker
Material Aluminum Shell or Plastic
Power Cord 3G*1.5mm2, 2m Length
Output DIN47440
Specification ISO9001: 2000, CE, RoHS
HS Code 8517709000
Certificate CE. RoHS. SGS
Color Silver or Black
Height 1u or 1.5u
Input DIN49441
Trademark Webitelecomms
Origin Ningbo China.
Features:
19' 1U/1.5U standard PDU socket, with leak-current protectorotector
Aluminum-alloy shell, made from block burn PC, Guage: 3G 14AWG+UL plug
According to customer request, we could add AC or DC display
Color: Black or silver
Children safty protect.
Braker protection, and fused.
---
Functions for options
* Master Switch for all sockets
* switch for each socket
* Current meter
* Surge protection
* anti-thunder protection
* circut breaker
* indicator light
---
Application:
Room rack, computer room, communications room, monitoring room, control room, electronic equipment power supply input; Office: Office computers, fax machines, copiers, projectors and other office equipment; Home: TV, refrigerator, computer, telephone, dial-up networking equipment.
Rated current 16A
Rated load 2500W
Rated voltage 250V
Household voltage 230V
Number of sockets 6 ways
Size 19" 1.5U
Shell material Uninflammable PC module, Aluminium alloy shell
Type of cable H05VV-F3G1.5mm 2 ×2.15ms;2.15ms;2.15m
Type of plug IMQ16A plug
Degree of protection against electric shock IP20
Provision for earthing With earting contact
Method of connecting the cable Non-rewirable
Type of connections Welded-solder
Degree of protection against electric shock Normal protection
Existence of shutters With shutters
Method of application-mounting Portable type
