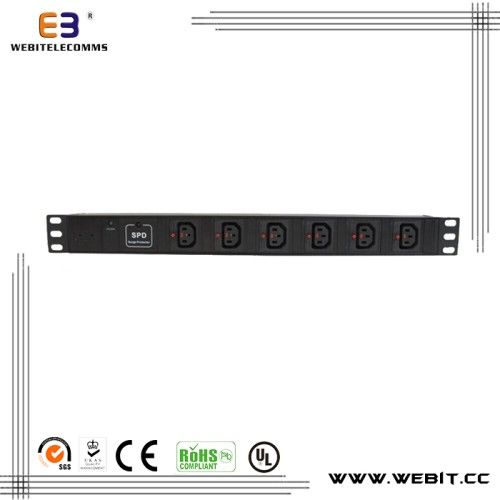

6 Ways IEC Power Strip with Surge Protective Device
6路IEC带电涌保护装置
议价
加入意向| 型号。 | WB-PDU-09 |
| 类型 | 没有开关 |
| 孔位 | 6位数 |
| IP等级 | IP20 |
| 证明 | ce，rohs |
| 条件 | 新 |
| 指示符 | 一个电源指示灯 |
| 商标 | Webitelecomms |
| 起源 | 宁波中国 |
| 接地 | 标准接地 |
| 应用 | 商业，工业，医院，住宅/通用 |
| 电缆长度 | 2米 |
| 颜色 | 黑色 |
| 定制 | 定制 |
| 功能 | 每个插座的浪涌保护装置 |
| 电源线 | 3G 1.5mm ^ 2米 |
| 规范 | ce，rohs，iso，sgs |
| HS编码 | 8517709000 |
特征
19“1U商用PDU插座，每个插座带有浪涌保护装置
2.铝合金外壳，由块烧PC，Guage：3G 14AWG + IEC插头
3.根据客户要求，我们可以添加交流或直流显示
4.颜色：黑色或银色
5.儿童安全保护。
制动器保护，并融合。
产品规格
包装细节
标准中性棕盒包装出口
19“1U商用PDU插座，每个插座带有浪涌保护装置
2.铝合金外壳，由块烧PC，Guage：3G 14AWG + IEC插头
3.根据客户要求，我们可以添加交流或直流显示
4.颜色：黑色或银色
5.儿童安全保护。
制动器保护，并融合。
产品规格
额定电流 | 10A最大 |
额定负载 | 2500W最大 |
额定电压 | 250V |
家庭电压 | 230V |
套接字数量 | 6种方式 |
尺寸 | 19" 1U |
壳材料 | 不可燃PC模块，铝合金外壳 |
电缆类型 | 3G *1.5平方毫米x 2米 |
插头类型 | c13 | c14 | c19 | C20 |
防触电等级 | IP20 |
接地规定 | 与earting接触 |
连接电缆的方法 | 不可拆线 |
连接类型 | 焊接焊料 |
防触电等级 | 正常保护 |
存在百叶窗 | 带百叶窗 |
应用安装方法 | 便携式 |
包装细节
标准中性棕盒包装出口
| Model NO. | WB-PDU-09 |
| Type | Without Switch |
| Hole-Digit | 6 Digits |
| IP Rating | IP20 |
| Certification | CE, RoHS |
| Condition | New |
| Indicator | One Light Power Indicator |
| Trademark | Webitelecomms |
| Origin | Ningbo China |
| Grounding | Standard Grounding |
| Application | Commercial, Industrial, Hospital, Residential/General-Purpose |
| Cable Length | 2 Meter |
| Color | Black |
| Customized | Customized |
| Function | Surge Protective Device for Each Socket |
| Power Cord | 3G 1.5mm^ 2 Meter |
| Specification | CE, RoHS, ISO, SGS |
| HS Code | 8517709000 |
Features
1. 19' 1U commercial PDU socket, with surge protective device for each socketsocket
2. Aluminum-alloy shell,made from block burn PC,Guage:3G 14AWG+ IEC plug
3. According to customer request, we could add AC or DC display
4. Color: Black or silver
5. Children safty protect.
6. Braker protection, and fused.
Specifications
Packing detail
Standard neutral brown box packing for exporting
1. 19' 1U commercial PDU socket, with surge protective device for each socketsocket
2. Aluminum-alloy shell,made from block burn PC,Guage:3G 14AWG+ IEC plug
3. According to customer request, we could add AC or DC display
4. Color: Black or silver
5. Children safty protect.
6. Braker protection, and fused.
Specifications
Rated current | 10A Max |
Rated load | 2500W Max |
Rated voltage | 250V |
Household voltage | 230V |
Number of sockets | 6 ways |
Size | 19" 1U |
Shell material | Uninflammable PC module, Aluminium alloy shell |
Type of cable | 3G*1.5mm2*2m |
Type of plug | C13 | C14 | C19 | C20 |
Degree of protection against electric shock | IP20 |
Provision for earthing | With earting contact |
Method of connecting the cable | Non-rewirable |
Type of connections | Welded-solder |
Degree of protection against electric shock | Normal protection |
Existence of shutters | With shutters |
Method of application-mounting | Portable type |
Packing detail
Standard neutral brown box packing for exporting
