产品说明
电加湿器采用加热元件电管，不锈钢水箱加热沸腾，产生纯无菌蒸汽，空气加湿。微电脑控制整个操作，确保安全可靠，连续输出蒸汽。
开/关控制
单元根据加湿器的信号运行或停止
比例控制
蒸汽容量根据输入比例连续变化，如0-10v，0-5v，1-5v，0.5-4v，0.2-20mA，4-20mA和2-10v。加湿量连续无级调节
特征
点阵显示中英文，易于设置，根据运行状态和报警信息。
自动排水阀实现自动清洗，避免堵塞。
电热管分组操作，提高控制精度。
过程控制比例类型或切换选择。
多重安全防护，无法在没有水的情况下工作
适用条件
供气压力：0.05-0.6Mpa
供水水质：软化水，去离子水，自来水等
工作压力：大气压力
蒸汽输出压力：1000pa
应用
净化空调，AHU，风机盘管单元，恒温恒湿空调，冷库，文物保护，档案室，实验室，电脑室，通讯室，办公室，家庭房，酒店，手术室，博物馆，印刷厂，电子厂卷烟工厂，制药厂，纺织厂等。
领先技术
世界上唯一的电极加湿器是32位低功耗微处理芯片;
世界上唯一使用神经网络和人工智能算法的电极加湿器控制器;
世界唯一的电极加湿器，支持WIFI通信，用于监控和控制网络;
世界上唯一内置微型气缸的智能气缸工作过程控制;
世界上唯一具有高档漏电保护功能的电极加湿器;
世界上唯一的超级清洁功能电极加湿器;
模型
单元
010
020
045
060
080
100
125
150
容量范围
公斤/小时
10
20
40
60
80
100
125
150
磅/小时
22
45
90
133
180
222
278
333
电源
V
3相380V 50 / 60Hz
控制源
V
24V DC（内置开关电源）
相电流
A
11
22
44
66
88
110
138
165
功率
千瓦
7.5
15
30
45
60
75
94
113
蒸汽出口
毫米
1x22
1x32
2x32
2x32
3x32
3x32
4x32
5x32
蒸汽喷嘴类型
标准
组态
D22-450
D32-450
D32-600
D32-600
D32-600
D32-600
D32-600
D32-600
喷嘴数量
片
1
1
2
2
3
3
4
5
案例大小
长度/毫米
800
800
1000
1000
1000
1000
1200
1200
高/毫米
650
650
720
720
720
720
800
800
宽/毫米
500
500
500
500
500
500
500
500
重量
公斤
25
32
42
45
57
62
70
85

Product descriptions

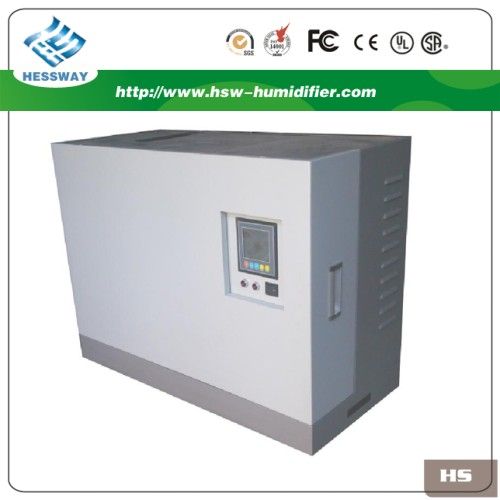

Electric humidifier uses a heating element electric tube, the stainless steel water tank is heated to boiling, producing pure sterile steam, air humidification. Microcomputer control the whole operation, to ensure safe, reliable, continuous output steam.
On/Off Control
Unit runs or stops according to the signal of humidifier
Proportional Control
The steam capacity varies continuously in accordance with the input proportional,such as 0-10v,0-5v,1-5v,0.5-4v,0.2-20mA,4-20mA and 2-10v.Humidification quantity continuous stepless adjustment
Features
Dot matrix display in both English and Chinese, easy to set up, according to running status and alarm information.
Automatic drain valve to realize automatic cleaning, avoid congestion.
Electric heat pipe grouping operation, improve control precision.
Process control proportion type or switch to choose from.
Multiple security protection, can't work in the absence of water
Applicable conditions
Supply pressure: 0.05-0.6 Mpa
Water quality of water supply: demineralized water, deionized water, tap water, etc
Working pressure: the atmospheric pressure
The steam output pressure: 1000 pa
Applications
Purifying air conditioning,AHU,fan coil unit,constant temperature and humidity air conditioning,cold storage,heritage preservation,archives,laboratories,computer rooms,communications room,office,family room,hotel,operating room,Museum ,printing plants,electronic factories,cigarette factories,pharmaceutical plants,textile mills,etc.
Leading technology
The world's only electrode humidifier that 32-bit low-power micro-processing chip;
The world's only electrode humidifier controller that uses neural networks and artificial intellingence algorithms;
The world only electrode humidifier that supports WIFI communications for monitoring and controlling networks;
The world's only built-in micro-chip in cylinder for intelligent cylinder working process control;
The world's only electrode humidifier who has high-grade electric leakage protection function;
The world's only super-cleaning functioned electrode humidifier;
Model
Unit
010
020
045
060
080
100
125
150
Capacity ranging
Kg/h
10
20
40
60
80
100
125
150
Lb/H
22
45
90
133
180
222
278
333
Power Supply
V
3Phase 380V 50/60Hz
Control source
V
24V DC (Built-in switching power supply)
Phase Current
A
11
22
44
66
88
110
138
165
Power
KW
7.5
15
30
45
60
75
94
113
Steam outlet
mm
1x22
1x32
2x32
2x32
3x32
3x32
4x32
5x32
Steam Nozzle Type
Standard
configuration
D22-450
D32-450
D32-600
D32-600
D32-600
D32-600
D32-600
D32-600
Nozzle Quantity
Piece
1
1
2
2
3
3
4
5
Case Size
Length/mm
800
800
1000
1000
1000
1000
1200
1200
High/mm
650
650
720
720
720
720
800
800
Wide/mm
500
500
500
500
500
500
500
500
Weight
Kg
25
32
42
45
57
62
70
85
