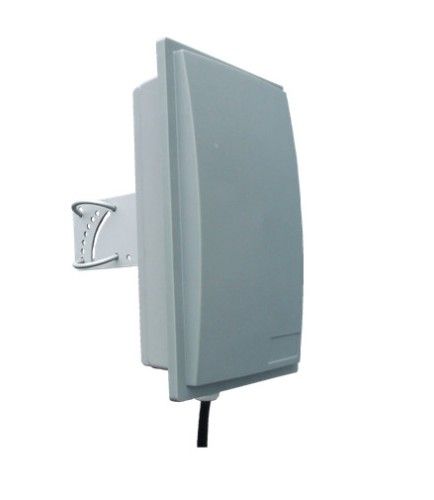

Best-Selling Long Range Reader with Integrative Antenna
最佳销售长距离读卡器与集成天线
议价
加入意向| 型号。 | V-88超高频读卡器 |
| 卡的种类 | EM |
| 阅读距离 | 5-10m |
| 阅读距离 | 5〜15m（标签依赖） |
| 通讯接口 | RS232，RS485，Wiegand26 / 34，TCP / IP（可选） |
| 应用软件界面 | SDK / API |
| 标签空中接口 | epc global uhf iso-18000-6c（epc g2），iso-18000-6b |
| 射频功率控制 | 20-30 dBm |
| 商标 | techcrepower |
| 起源 | 中国 |
| 类型 | IC卡读卡器 |
| 接口 | 串行端口 |
| 应用 | 停车场，医院，图书馆，公司，银行，商店 |
| 频率范围 | 902〜928MHz的 |
| 非冷凝外壳 | iec ip54 |
| 使用 | 智能交通，物流，票务和访问访问ccess |
| 天线 | 9dBi天线 |
| 工作模式 | 自动，命令，触发 |
| 规范 | CE |
技术规格：
标签空中接口：EPC全球UHF ISO-18000-6C（EPC G2），ISO-18000-6B标准
频率范围：902〜928MHz（根据您的要求定制）工作方式：适用于FHSS或固定频率
天线：9dBi天线
射频功率控制：20-30dBm
读取距离：5〜15M（取决于标签）
工作模式：自动，命令，触发
通讯接口：RS232，RS485，Wiegand26 / 34
通讯速率：串口速率9600〜115200BPS，
GP I / O接口：I / O接口（12针+ 4针）
电源：外部22V AC，+ 9V / 3A直流适配器
消费：平均功率<10W;10W
非冷凝外壳：IEC IP54
工作温度：-20ºC至+60ºC60ºCdm; C60 º C
湿度：5％〜95％，无浓缩
尺寸：285mm * 205mm * 77mm
重量：1.5KG
应用软件界面：提供API SDK，演示VC和VB。 JAVA
应用：
智能交通等，定制过境，停车场，自动称重等。
物流如集装箱管理，托盘管理，资产追踪等
票务和门禁控制ntrol
药品如医疗废物管理等
标签空中接口：EPC全球UHF ISO-18000-6C（EPC G2），ISO-18000-6B标准
频率范围：902〜928MHz（根据您的要求定制）工作方式：适用于FHSS或固定频率
天线：9dBi天线
射频功率控制：20-30dBm
读取距离：5〜15M（取决于标签）
工作模式：自动，命令，触发
通讯接口：RS232，RS485，Wiegand26 / 34
通讯速率：串口速率9600〜115200BPS，
GP I / O接口：I / O接口（12针+ 4针）
电源：外部22V AC，+ 9V / 3A直流适配器
消费：平均功率<10W;10W
非冷凝外壳：IEC IP54
工作温度：-20ºC至+60ºC60ºCdm; C60 º C
湿度：5％〜95％，无浓缩
尺寸：285mm * 205mm * 77mm
重量：1.5KG
应用软件界面：提供API SDK，演示VC和VB。 JAVA
应用：
智能交通等，定制过境，停车场，自动称重等。
物流如集装箱管理，托盘管理，资产追踪等
票务和门禁控制ntrol
药品如医疗废物管理等
| Model NO. | V-88 UHF Reader |
| Card Type | EM |
| Reading Distance | 5-10m |
| Read Distance | 5~15m (Tags Dependent) |
| Communication Interface | RS232, RS485, Wiegand26/34, TCP/IP (Optional) |
| Application Software Interface | Sdk/API |
| Tag Air Interfaces | EPC Global UHF ISO-18000-6c (EPC G2), ISO-18000-6b |
| RF Power Control | 20-30 dBm |
| Trademark | techcrepower |
| Origin | China |
| Type | IC Card Reader |
| Interface | Serial Port |
| Application | Parking, Hospital, Library, Company, Bank, Store |
| Frequency Ranges | 902~928MHz |
| Non-Condensing Enclosure | IEC IP54 |
| Use | Intelligent Traffic, Logistics, Ticketing& AccessAccessccess |
| Antenna | 9dBi Antenna |
| Work Mode | Auto, Command, Trigger |
| Specification | CE |
Technical Specification:
Tag air interfaces: EPC global UHF ISO-18000-6C (EPC G2), ISO-18000-6B standard
Frequency ranges: 902~928MHz (customize for your requirement) Work style: For FHSS or fixed frequency
Antenna: 9dBi antenna
RF power control: 20-30 dBm
Read distance: 5~15M (Tags dependent)
Work mode: Auto, Command, trigger
Communication interface: RS232, RS485, Wiegand26/34
Communication rate: Serial port rate 9600~115200BPS,
GP I/O Interface: I/O Interface (12 needle + 4 needle)
Power: External 22OV AC, +9V/3A DC adapter
Consumption: Average Power<10W;10W
Non-condensing Enclosure: IEC IP54
Operating Temp.: -20 º C to +60 º C60 º Cdm; C60 º C
Humidity: 5% to 95%, no condensed
Dimensions: 285mm*205mm*77mm
Weight: 1.5KG
Application software interface: Provide API SDK, Demo in VC and VB. JAVA
Application:
Intelligent traffic such as etc, customes border-crossing, parking lot, automatic weighing etc.
Logistics such as container management, pallet management, asset tracing etc.
Ticketing& access controlntrolntrol
Pharmaceuticals such as medical waste management, etc.
Tag air interfaces: EPC global UHF ISO-18000-6C (EPC G2), ISO-18000-6B standard
Frequency ranges: 902~928MHz (customize for your requirement) Work style: For FHSS or fixed frequency
Antenna: 9dBi antenna
RF power control: 20-30 dBm
Read distance: 5~15M (Tags dependent)
Work mode: Auto, Command, trigger
Communication interface: RS232, RS485, Wiegand26/34
Communication rate: Serial port rate 9600~115200BPS,
GP I/O Interface: I/O Interface (12 needle + 4 needle)
Power: External 22OV AC, +9V/3A DC adapter
Consumption: Average Power<10W;10W
Non-condensing Enclosure: IEC IP54
Operating Temp.: -20 º C to +60 º C60 º Cdm; C60 º C
Humidity: 5% to 95%, no condensed
Dimensions: 285mm*205mm*77mm
Weight: 1.5KG
Application software interface: Provide API SDK, Demo in VC and VB. JAVA
Application:
Intelligent traffic such as etc, customes border-crossing, parking lot, automatic weighing etc.
Logistics such as container management, pallet management, asset tracing etc.
Ticketing& access controlntrolntrol
Pharmaceuticals such as medical waste management, etc.
