2.45g Active Card and Tag
2.45g活动卡和标签
议价
加入意向| 型号。 | 2.45g活动卡 |
| 射频功率 | -18.0dBm〜0.0dBm |
| 工作电流 | <22ua, 3V (500ms Transmitting Interval)rval) |
| 沟通率 | 250kbps，1Mbps，2Mbps |
| 只读 | 4〜5年（500ms发送间隔） |
| 材料 | ABS（RoHS），阻燃剂 |
| 规范 | CE |
| 工作频率 | 工作频率 |
| 阅读距离 | 0〜50m 0〜200m（取决于天线） |
| 调制 | GFSK |
| 读和写 | 2年（500ms传输间隔） |
| 电提示 | 低电量报警 |
| 商标 | Techcrepower |
| 起源 | 中国 |
2.45G活动卡和标签
特征：
漫长的阅读距离
超低的RF功耗，使用寿命长
优异的防碰撞机制使多个标签实时监控适应性强
高防护等级
大型用户内存，可用于许多灵活的应用程序
智能温度监控功能
操作模式：只读或读写;写write
射频功率：-18.0dBm〜0.0dBm
阅读距离：
0〜50m（标配2dBi全向天线）
0〜200m（取决于天线）
工作电流： <22uA, 3V (500ms transmitting interval)val)
调制：GFSK
通信速率：250Kbps，1Mbps，2Mbps
工作温度：-20°C〜+ 60°C 90％RH; C 90％RH; C 90%RH
一生：
读写：2年（500ms传输间隔）
只读：4〜5年（500ms发送间隔）
电提示：低电量时报警
材质：ABS（RoHS），阻燃
颜色：白色，蓝色，黄色，绿色
环保密封：IP65
跌落测试：1.2米
重量：30g
尺寸：87mm * 56mm * 5mm
应用：
企业，银行，交通，保险，超级营销，停车场，学校，图书馆管理，门禁等。
关于我们：
Techcrepower是2006年以来非常专业的卡片产品供应商，我们在中国和全球提供了数亿个智能卡，RFID非接触卡，ABS钥匙标签，NFC标签，手带标签，各种芯片的光盘标签125KHZ / 13.56MHZ。
我们专注于质量和服务为第一。相信如果您尝试，我们的产品和服务将非常令人印象深刻！
我们感谢有机会与您合作！
特征：
漫长的阅读距离
超低的RF功耗，使用寿命长
优异的防碰撞机制使多个标签实时监控适应性强
高防护等级
大型用户内存，可用于许多灵活的应用程序
智能温度监控功能
操作模式：只读或读写;写write
射频功率：-18.0dBm〜0.0dBm
阅读距离：
0〜50m（标配2dBi全向天线）
0〜200m（取决于天线）
工作电流： <22uA, 3V (500ms transmitting interval)val)
调制：GFSK
通信速率：250Kbps，1Mbps，2Mbps
工作温度：-20°C〜+ 60°C 90％RH; C 90％RH; C 90%RH
一生：
读写：2年（500ms传输间隔）
只读：4〜5年（500ms发送间隔）
电提示：低电量时报警
材质：ABS（RoHS），阻燃
颜色：白色，蓝色，黄色，绿色
环保密封：IP65
跌落测试：1.2米
重量：30g
尺寸：87mm * 56mm * 5mm
产品参数 | 参数说明 |
| 频率范围 | 2.4ghz〜2.5ghz主题 |
| 操作模式 | 只读或读写write |
| 射频功率 | -18.0dBm〜0.0dBm |
| 阅读距离 | 0〜50m（标配2dBi全向天线）。 0〜200m（取决于天线） |
工作电流 | <22uA, 3V (500ms transmitting interval)val) |
| 调制 | GFSK |
| 沟通率 | 250Kbps，1Mbps，2Mbps |
| 缓冲容量 | 2000标签数据 |
| 通讯速度 | 25Kbps，1Mbps，2Mbps（可调） |
| 工作温度 | -20°C〜+ 60°C 90％rhg; c 90％rhg;C 90%RH |
| 一生 | 读写：2年（500ms传输间隔） |
| 只读 | 4〜5年（500ms发射间隔） |
| 电提示 | 低电量报警 |
| 材料 | ABS（ROHS），阻燃剂 |
| 颜色 | 白色，蓝色，黄色，绿色 |
| 环保密封 | IP65 |
| 跌落测试 | 1.2m |
| 重量 | 30g |
| 尺寸 | 87毫米*56毫米*5毫米 |
应用：
企业，银行，交通，保险，超级营销，停车场，学校，图书馆管理，门禁等。
关于我们：
Techcrepower是2006年以来非常专业的卡片产品供应商，我们在中国和全球提供了数亿个智能卡，RFID非接触卡，ABS钥匙标签，NFC标签，手带标签，各种芯片的光盘标签125KHZ / 13.56MHZ。
我们专注于质量和服务为第一。相信如果您尝试，我们的产品和服务将非常令人印象深刻！
我们感谢有机会与您合作！
| Model NO. | 2.45g Active Card |
| RF Power | -18.0dBm~0.0dBm |
| Operating Current | <22ua, 3V (500ms Transmitting Interval)rval) |
| Communication Rate | 250kbps, 1Mbps, 2Mbps |
| Read Only | 4~5 Years (500ms Transmitting Interval) |
| Material | ABS(RoHS), Flame Retardant |
| Specification | CE |
| Operating Frequency | Operating Frequency |
| Reading Distance | 0~50m 0~200m(Depends on Antenna) |
| Modulation | Gfsk |
| Read and Write | 2 Years(500ms Transmitting Interval) |
| Electric Hint | Alarm When Low Battery |
| Trademark | Techcrepower |
| Origin | China |

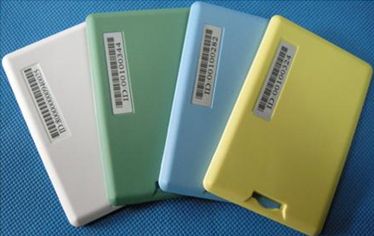

2.45G Active Card and Tag
Features:
Long reading distance
Ultra low RF power consumption, long life time
Excellent anti-collision mechanism makes multiple tags real time monitoring adaptable
High protection grade
Large user memory, which can be used for many flexible applications
Intelligent temperature monitoring function
Operating mode: Read only or Read &write;writewrite
RF Power: -18.0dBm~0.0dBm
Reading distance:
0~50m (with standard matched 2dBi Omni-directional antenna)
0~200m(depends on antenna)
Operating Current: <22uA, 3V (500ms transmitting interval)val)
Modulation: GFSK
Communication rate: 250Kbps, 1Mbps, 2Mbps
Working temperature: -20° C~+60° C 90%RH; C 90%RH; C 90%RH
Life time:
Read and write: 2 years(500ms transmitting interval)
Read only: 4~5 years (500ms transmitting interval)
Electric hint: Alarm when low battery
Material: ABS(RoHS), flame retardant
Color: White, blue, yellow, green
Environmental sealing: IP65
Drop testing: 1.2m
Weight: 30g
Dimension: 87mm*56mm*5mm
Applications:
Enterprises, bank, traffic, insurance, super marketing, parking, school, library management, access control ect.
About us:
Techcrepower is one very professional card products supplier since 2006, we had provided hundreds of millions of Smart card, RFID contactless card, ABS key tag, NFC tag, Wristband tag, Disc tag with various chips 125KHZ/13.56MHZ in China and worldwide.
We focus on quality and services as No.1. Trust you would be very impressive of our products and services if you try!
We appreciate any opportunity to cooperate with you!
Features:
Long reading distance
Ultra low RF power consumption, long life time
Excellent anti-collision mechanism makes multiple tags real time monitoring adaptable
High protection grade
Large user memory, which can be used for many flexible applications
Intelligent temperature monitoring function
Operating mode: Read only or Read &write;writewrite
RF Power: -18.0dBm~0.0dBm
Reading distance:
0~50m (with standard matched 2dBi Omni-directional antenna)
0~200m(depends on antenna)
Operating Current: <22uA, 3V (500ms transmitting interval)val)
Modulation: GFSK
Communication rate: 250Kbps, 1Mbps, 2Mbps
Working temperature: -20° C~+60° C 90%RH; C 90%RH; C 90%RH
Life time:
Read and write: 2 years(500ms transmitting interval)
Read only: 4~5 years (500ms transmitting interval)
Electric hint: Alarm when low battery
Material: ABS(RoHS), flame retardant
Color: White, blue, yellow, green
Environmental sealing: IP65
Drop testing: 1.2m
Weight: 30g
Dimension: 87mm*56mm*5mm
Product Parameter | Parameter Description |
| Frequency Range | 2.4GHz~2.5GHz ISM |
| Operating mode | Read only or Read & writewritewrite |
| RF Power | -18.0dBm~0.0dBm |
| Reading distance | 0~50m (with standard matched 2dBi Omni-directional antenna). 0~200m(depends on antenna) |
Operating Current | <22uA, 3V (500ms transmitting interval)val) |
| Modulation | GFSK |
| Communication rate | 250Kbps, 1Mbps, 2Mbps |
| Buffer capacity | 2000 tags data |
| Communication speed | 25Kbps, 1Mbps, 2Mbps(adjustable) |
| Working temperature | -20°C~+60°C 90%RHg;C 90%RHg;C 90%RH |
| Life time | Read and write: 2 years(500ms transmitting interval) |
| Read only | 4~5 years (500ms transmitting interval) |
| Electric hint | Alarm when low battery |
| Material | ABS(ROHS), flame retardant |
| Color | White, blue, yellow, green |
| Environmental sealing | IP65 |
| Drop testing | 1.2m |
| Weight | 30g |
| Dimension | 87mm*56mm*5mm |
Applications:
Enterprises, bank, traffic, insurance, super marketing, parking, school, library management, access control ect.
About us:
Techcrepower is one very professional card products supplier since 2006, we had provided hundreds of millions of Smart card, RFID contactless card, ABS key tag, NFC tag, Wristband tag, Disc tag with various chips 125KHZ/13.56MHZ in China and worldwide.
We focus on quality and services as No.1. Trust you would be very impressive of our products and services if you try!
We appreciate any opportunity to cooperate with you!
