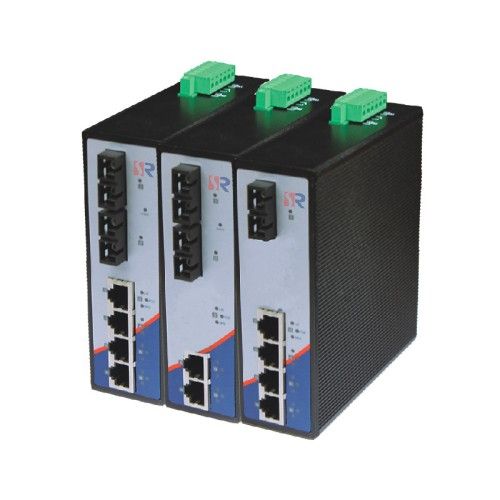

4/5/6 - Port Full Gigabyte Industrial Ethernet Switch 1000m Network Industrial Switch (106G)
4/5/6 - 端口全千兆工业以太网交换机1000m网络工业交换机（106G）
| 型号。 | 106G |
| 类型 | 以太网交换机 |
| 端口 | 8 |
| Poe功能 | 可选的 |
| 应用 | 企业，苏荷 |
| 建筑 | 横杆系统 |
| 商标 | phynam |
| 起源 | 东莞广东中国 |
| 通讯模式 | 全双工和半双工双机uplex |
| 传输速率 | 10/100 / 1000Mbps的 |
| 工业开关 | 是 |
| 转移率 | 10/100 / 1000Mbps的 |
| 性能 | 线路速率路由器 |
| 网络 | 工业以太网 |
| 规范 | ce / emc，ce / lvd，fcc认证 |
| HS编码 | 85176219 |
RS106G系列是全千兆工业以太网交换机，配备4个千兆以太网端口和2个光纤端口，非常适合需要高带宽传输和数据融合的上行链路应用，如视频监控，收费系统，ITS和工厂自动化。 RS106G系列为您的工业千兆以太网连接提供了经济的解决方案，内置的继电器警告功能可在电源故障或端口断开时向网络管理员发出警报。它进行了100％的老化测试，以确保满足工业自动化控制应用的特殊需求。
特征
*最多4个10/100 / 1000BaseT（X）端口和2个1000BaseF（X）或SFP插槽
*冗余双12/24/48 VDC电源输入
*支持高达9.6 KB的巨型帧传输
*电源故障和端口中断报警的继电器输出警告
*广播风暴保护
*透明传输VLAN标签数据包
* -40至85°C工作温度范围range
* PoE / PoE +选项
产品规格
特征
*最多4个10/100 / 1000BaseT（X）端口和2个1000BaseF（X）或SFP插槽
*冗余双12/24/48 VDC电源输入
*支持高达9.6 KB的巨型帧传输
*电源故障和端口中断报警的继电器输出警告
*广播风暴保护
*透明传输VLAN标签数据包
* -40至85°C工作温度范围range
* PoE / PoE +选项
产品规格
| 接口 | 光纤端口：1000BaseF（X）或SFP插槽 Rj45端口：10/100 / 1000BaseT（X）自动协商速度，自动MDI / MDI-X连接 led指示灯：pwr1，pwd2，l / a，spd，poe（选项） 报警触点：1个继电器输出，电流承载能力为1A〜24VDC |
| 开关属性 | MAC表格大小：8K 数据包缓冲区大小：1 Mbit 巨型帧大小：10 KB |
| 电力需求 | 输入电压：12/24/48 /> 48 VDC，冗余双输入输出 输入电流：24 VDC / 0.6A 过载电流保护：存在 连接：2个可拆卸的2触点端子块 反向极性保护：存在 |
| 物理特性 | 外壳：铝，IP40保护 尺寸：135 x 125 x 45毫米（5.3 x 4.9 x 1.8英寸） 重量：650克 安装：DIN导轨安装，壁挂安装 |
| 环境限制 | 工作温度：-40〜85℃（-40〜185°F）85°F）g;F)85 °F) 存储温度：-40〜85℃（ - 40〜185°F）85°F）g;F)85 °F) 环境相对湿度：5〜95％（无冷凝） |
| 标准 | emi： FCC Part 15 Subpart B Class A，EN 61000-6-4（Industrial） EMS： EN 61000-6-2（工业），EN 61000-4-2（ESD）等级4，EN 61000-4-3 （rs）3级，en 61000-4-4（eft）4级，en 61000-4-5（喘振）级别4，en 61000-4-6（cs）3级，en 61000-4-8，ieee 1613 冲击：IEC 60068-2-27 自由落体：IEC 60068-2-32 振动：IEC 60068-2-6 MTBF（平均故障间隔时间）：305,000小时 IEEE 802.3 for 10BaseT 100BaseT（X）和100BaseFX的IEEE 802.3u 1000BaseT（X）的IEEE 802.3ab 适用于1000BaseX的IEEE 802.3z IEEE 802.3x流量控制 处理类型：存储和转发 流量控制：IEEE 802.3x流量控制，背压流量控制 |
| Model NO. | 106G |
| Type | Ethernet Switch |
| Ports | 8 |
| Poe Function | Optional |
| Application | Enterprise, Soho |
| Architecture | Crossbar System |
| Trademark | PHYNAM |
| Origin | Dongguan Guangdong China |
| Communication Mode | Full-Duplex & Half-DuplexDuplexuplex |
| Transmission Rate | 10/100/1000Mbps |
| Industrial Switch | Yes |
| Transfer Rate | 10/100/1000Mbps |
| Performance | Line-Rate Router |
| Network | Industrial Ethernet |
| Specification | CE/EMC, CE/LVD, FCC Certification |
| HS Code | 85176219 |
The RS106G series are full Gigabyte industrial Ethernet switches, equipped with 4 Gigabit Ethernet ports and up to 2 fiber optic ports, making them ideal for applications that demand high-bandwidth transmission and data converge for up-link, such as video surveillance, tolling systems, ITS, and factory automation. The RS106G series provide an economical solution for your industrial Gigabit Ethernet connection, and the built-in relay warning function alerts network managers when power failures or port breaks occur. It undergoes a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications.
Features
* Up to 4 10/100/1000BaseT(X)ports and 2 1000BaseF(X) or SFP slots
* Redundant dual 12/24/48 VDC power inputs
* Supports jumbo frame transmission up to 9.6 KB
* Relay output warning for power failure and port break alarm
* Broadcast storm protection
* Transparent transmission of VLAN tagged packets
* -40 to 85°C operating temperature rangerangerange
* PoE/PoE+ option
Specifications
Features
* Up to 4 10/100/1000BaseT(X)ports and 2 1000BaseF(X) or SFP slots
* Redundant dual 12/24/48 VDC power inputs
* Supports jumbo frame transmission up to 9.6 KB
* Relay output warning for power failure and port break alarm
* Broadcast storm protection
* Transparent transmission of VLAN tagged packets
* -40 to 85°C operating temperature rangerangerange
* PoE/PoE+ option
Specifications
| Interface | Fiber Ports:1000BaseF(X) or SFP slot Rj45 Ports: 10/100/1000BaseT(X) auto negotiation speed, and auto MDI/MDI-X connection LED Indicators:PWR1,PWD2,L/A,SPD, PoE(option) Alarm Contact:1 relay output with current carrying capacity of 1 A @24 VDC |
| Switch Properties | MAC Table size:8K Packet Buffer Size:1 Mbit Jumbo Frame Size:10 KB |
| Power Requirement | Input Voltage:12/24/48/﹥48 VDC, redundant dual inputsputs Input Current:24 VDC / 0.6 A Overload Current Protection:Present Connection:2 removable 2-contact terminal blocks Reverse Polarity Protection:Present |
| Physical Characteristics | Housing:Aluminum,IP40 protection Dimensions:135 x 125 x 45mm (5.3 x 4.9 x 1.8 in) Weight:650g Installation:DIN-rail mounting, Wall mounting |
| Environmental Limits | Operating Temperature:-40 ~ 85 ºC ( - 40 ~ 185 °F)85 °F)g;F)85 °F) Storage Temperature:-40 ~ 85 ºC ( - 40 ~ 185 °F)85 °F)g;F)85 °F) Ambient Relative Humidity:5 ~ 95% (non-condensing) |
| Standards | EMI : FCC Part 15 Subpart B Class A, EN 61000-6-4(Industrial) EMS: EN 61000-6-2 (Industrial), EN 61000-4-2 (ESD) Level 4, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 4, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, IEEE 1613 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6 MTBF (mean time between failures):305,000 hrs IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control Processing Type:Store and Forward Flow Control: IEEE 802.3x flow control, back pressure flow control |
