1.具有15'LCD显示屏的4合1控制台集成到1U高度的抽屉式工作台，方便机架安装。
2.支持混合接口（PS / 2＆USB），方便计算机端口连接。tion.
3.支持MS Windows，Netware，UNIX和Linux。
4.支持带USB连接的iMac，Power MAC和Sun Micro系统。
5.不需要软件。通过OSD菜单，按钮和热键选择电脑。
6.提供多个热键（Scroll-Lock / Cap-Lock / Num-Lock / L-Alt / L-Ctrl / L-Win / R-Alt / R-Ctrl / R-Win）切换计算机端口并激活OSD菜单。
7.提供访问控制列表功能，能够保存8个独立的用户帐号。
8.支持热插拔---电脑可以取下，而无需关机LCD控制台。sole.
9.支持两个用户级别，能够搜索计算机/服务器名称。
10.切换电脑时可以保存键盘状态信息。
11.支持菊花链串行连接（8级）和堆叠级联（2级）。
== 15'LCD KVM控制台（键盘，触摸板鼠标的拆卸设计）== ouse）==
WB-AI3108ULG是KVM控制台模块，具有集成的15'液晶显示面板，超薄键盘和1U可机架安装的滑道外壳的触摸板
采用A级15'TFT LCD，最高分辨率为1280X1024 60Hz，最佳分辨率为1024X768 75Hz68 75Hz
与传统键盘，显示器和鼠标相比，可以节省近85％的空间
==特点：==
控制平台配有LCD，键盘，鼠标和单端口KVM切换器
1U高度，适用于19'标准柜安装和金属结构
15'液晶屏，亮度高，清晰度高，分辨率高
控制平台可以从机柜完全拉出，液晶显示屏可以打开105°5°eg;5°
带键盘的超薄键盘
鼠标触摸板带两个功能按钮
前面板带锁，以防意外损坏
内置或外置电源
自动开机/关机，将控制平台从机柜中拉出时，电源自动开启
将其推入机柜时，电源自动关闭
一个易于使用的OSD菜单
IP模块：实现IP卡远程控制

1. A 4-in 1 console with 15' LCD display is integrated to a drawer type worktable of 1U height to facilitate rack installation.lation.
2. Support mixed interface (PS/2 & USB), facilitate computer port connection.ction.tion.
3. Support MS windows, Netware, UNIX and Linux.
4. Support iMac, Power MAC and Sun Micro system with USB connection.
5. No software is needed. Select computer via OSD menu, button and hotkey.
6. Provide multiple hotkeys(Scroll-Lock/ Cap-Lock/ Num-Lock/ L-Alt/ L-Ctrl/ L-Win/ R-Alt/ R-Ctrl/R-Win) to switch computer ports and activate OSD menu.
7. Provide access control list function, capable of saving 8 independent user accounts.
8. Support hot plug & play --- computer can be removed without having to shutdown the LCD console.nsole.sole.
9. Support two user levels, capable of searching computer/server name.
10. Can save keyboard status information when switching computer.
11. Support daisy-chained serial connection (8 levels) and stacking cascade connection (2 levels).
==15' LCD KVM console (disassembly design for keyboard, touch pad mouse)==ouse)==

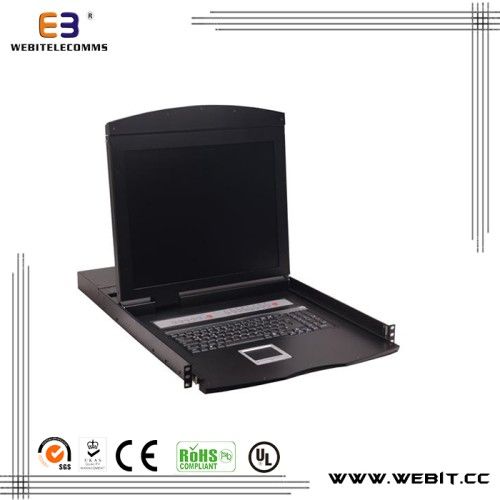

WB-AI3108ULG is KVM console module featuring an integrated 15' LCD panel, over-thin keyboard, and touch pad in a 1U, rack-mountable, Slideway housinghousing
With A Grade 15' TFT LCD, the highest resolution is 1280X1024 60Hz, the optimum resolution is 1024X768 75Hz68 75Hz
Compared to traditional keyboards, monitor and mouse, it could save almost 85% space
==Features:==
Control platform with LCD, keyboard, mouse and single-port KVM switch
1U height, suitable for 19' standard cabinet installation and metal structureructure
15' LCD screen with high brightness, high clear and high resolutionolution
Control platform can be totally pulled out from the cabinet and the LCD screen can be turned on to 105°5°eg;5°
Ultra thin keyboard with keypad
Mouse touch board with two function button
Front panel with lock to prevent damage by accident
Built-in or external-in power
Automatic power on/off, when pulling control platform out from cabinet, the power turns on automatically
When pushing it into the cabinet, the power turns off automatically
An easy to use OSD menu
IP module: To realize the remote control by IP card
