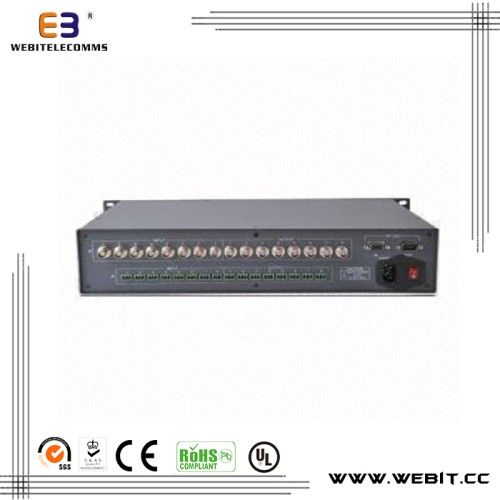

AV串行矩阵开关WB-MAX1616具有16输入和16输出，是用于视频和音频信号显示和切换的高性能智能开关设备。它用于将多路输入视频和音频信号之一切换到任何输出端口。
主要用于广播工程，多媒体会议厅，大屏幕显示工程，电视教学，控制中心等。
具体功能：
- 每个频道视频具有重叠中文/英文字符的功能
- 采用4U插件高密度模块结构，便于组合和扩展
--3D键盘具有矩阵/ DVR / PTZ控制功能16键盘可附件，支持多种组织网络
- 系统可以通过RS485通过多级和多级矩阵进行组网
- 待机设计，确保主机的稳定性
基本功能：
- 支持系统分区功能和键盘对显示器和摄像机的权限可由用户定义
视频输入输出端口以及通讯接口具有浪涌保护和防雷功能
- 中文和英文显示菜单，预置矩阵的每个功能
- 报警输入联动，自动打开相机和指示灯，自动切换预设图像并开始录制
- 任意监控空间的预设保护方式：定时，手动，启用/禁用报警，并检查报警日志
- 最多128个摄像机输入和32个监视器输出
型号：wb-max1616
带宽：
150MHz（-3dB）满载
0-10MHz（+ 0.1dB〜-0.1dB）
0-30MHz（+ 0.5dB〜-0.5dB）
亮度颜色干扰：5MHz时为-50dB，10MHz为-45dB
开关速度：200ns（最长时间）
差分相位误差：0.1％，3.8-4.43MHz
差分增益误差：0.1％，3.8-4.43MHz
最大传输时延（+ 1ns）：5ns
视频输入信号类型：AV信号
连接类型：RCA
最小输入电平正值：0.5Vp-p
最大输入电平正值：2.0Vp-p
I / O阻抗：75Ω
回波浪费：5MHz时为-30dB
最大直流补偿：1.5V
同步锁相：0.3V-0.4Vp-p
最大直流补偿：+ 5Mv-0
控制类型：RS-232控制协议，红外线控制，手动前面板控制，意外断电保护
控制端口：RS-232，9针COM连接端口
波特：9600/4800/2400
数位：8
停止位：1
校对位：不支持
控制配置：2 = TX，3 = RX，5 = GND
控制程序：Windowsite的Webitelecomms矩阵控制程序
规格电源：220V / 50Hz
功率：20W
安装：带标准安装架
MTTF：30，000小时
音频加不平衡：0dB
记录辐射响应：20Hz-20kHz + 0.05dB
噪声处理：1kHz时为0.03％
S / N：> 90，输出21dBu平衡输出功率
光/颜色干扰： <-80 at 1kHz, fully loadedaded
立体声通道分开： <75 at 20Hz-20kHz0kHz

AV serial matrix switch WB-MAX1616 has 16inputand 16output, is an intellectual switch equipment of high performance which isdesigned for video and audio signal displaying and switching. It isused to switch one of the multiple input video and audio signal to any outputport.
It is mainly used in Broadcasting Project, MultimediaConference Hall, Large Screen Displaying Project, Television Teaching, andControl Center etc.
Specific Function:
--Each channel video has the function of overlapping the Chinese/English character
--Adopt 4U plug-in high density module structure, facilitates the combination and expansion
--3D keyboard which has matrix/DVR/PTZ controlling function16 keyboard can be attachment, support many kinds of organizing network
-The system may carry on networking by many and multistage matrix through RS485
-Hot standby design, to ensure the host unit's stability
Basic Function:
-Support system partitioning function and keyboard's permissions to the monitor and camera can be defined by user
-Video input and output port as well as communication interface have surge protection and lightning protection function
-Menu displayed both in Chinese and English, preset each function of matrix
-Alarm input linkage, turn on the camera and the light automatically, switch preset image automatically and start the recording
-Can preset guarding method of any monitored space: Timing, manual, enable/disable alarm and check the alarm log
-Up to 128 camera inputs and 32 monitor outputs
Model: WB-MAX1616
Bandwidth:
150MHz (-3dB) fully loaded
0-10MHz (+0.1dB to -0.1dB)
0-30MHz (+0.5dB to -0.5dB)
Brightness color interfere: -50dB at 5MHz, -45dB at 10MHz
Switch speed: 200ns (the longest time)
Differential phase error: 0.1%, 3.8-4.43MHz
Differential gain error: 0.1%, 3.8-4.43MHz
Largest transmit time delay (+1ns): 5ns
Video input signal type: AV signal
Connection type: RCA
Minimum input level positive: 0.5Vp-p
Maximum input level positive: 2.0Vp-p
I/O impedance: 75Ω
Echo wasting: -30dB at 5MHz
Largest DC compensate: 1.5V
Synchronous phase-lock: 0.3V-0.4Vp-p
Largest DC compensate: +5Mv-0
Control type: RS-232control protocol, infrared control, manual front panel control, accidental power off protection
Control port: RS-232, 9-pin COM connection port
Baud: 9600/4800/2400
Digit bit: 8
Stop bit: 1
Proofread bit: Not supported
Control configuration: 2=TX, 3=RX, 5=GND
Control program: Webitelecomms matrix control program for Windows
Specification power supply: 220V/50Hz
Power: 20W
Installation: With standard installation rack
MTTF: 30, 000 hours
Audio plus imbalance: 0dB
Recording radiation response: 20Hz-20kHz +0.05dB
Noise dealing: 0.03% at 1kHz
S/N: ﹥90, output 21dBu balance ration output powerower
Light/color interfere: <-80 at 1kHz, fully loadedaded
Stereo channel separate: <75 at 20Hz-20kHz0kHz
