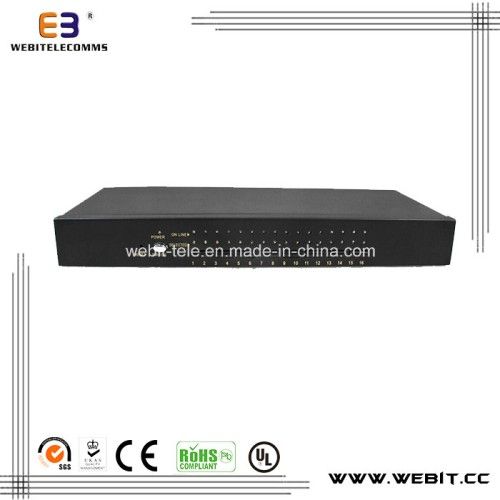

15" Rackmountable Cat5 Kvm Switch with 16 Ports
15'可机架式Cat5 Kvm开关，带16个端口
议价
加入意向| 型号。 | WB-ki3116 |
| 类型 | 有线 |
| 信息内容 | 数据 |
| 条件 | 新 |
| 商标 | Webitelecomms |
| 起源 | 浙江中国 |
| 用法 | 电话，电脑，工作站，服务器，笔记本电脑 |
| 支持网络 | 以太网络 |
| 证明 | CE |
| 尺寸 | 432 x 155 x 44毫米 |
| 规范 | ce rohs |
| HS编码 | 8517709000 |
16端口PS / 2 / USB Cat5 UTP / KVM（键盘，视频，鼠标）
开关是控制单元，允许从单个PS / 2 / USB键盘，PS / 2 / USB鼠标和显示器控制台访问和控制多达16台计算机
访问连接到安装的任何计算机有两种方便的方法：
=使用位于每个单元前面板上的按钮端口选择开关
=从屏幕显示（OSD）提供的菜单中进行选择
特征：
=控制带有本地或远程控制台的16台计算机
=控制台和电脑兼容PS / 2 / USB鼠标和键盘
=通过前面板开关和OSD进行计算机选择
= LED显示屏，便于状态监控
=用于监视所有计算机的自动扫描模式
=卓越的视频质量
=安装方便，无需软件
=热插拔，添加或删除计算机进行维护，无需关闭交换机电源
=支持Windows系列，Solaris等
产品规格：
= type：wb-ki3116
=计算机连接：16
= CPU端口选择：前面板开关/ OSD菜单
=控制台连接器：键盘，1 x PS / 2,1 x USB母头
=鼠标：1 x PS / 2,1 x USB母头
=视频：1 x HDB-15女（蓝）
=远程连接：1 x RJ45
=连接器：
键盘：1 x PS / 2女（紫色），1 x USB母头
鼠标：1 x PS / 2女（绿色），1 x USB母头
视频：16 x HDB-15男（蓝）
= LED：在线：16选择：
16Video分辨率：1，600 x 900
电源：DC 5V，400mW
工作温度：-10〜50℃
储存温度：-20至60℃
房屋：金属
重量：0.95kg
尺寸（长x宽x高）：432 x 155 x 44毫米
开关是控制单元，允许从单个PS / 2 / USB键盘，PS / 2 / USB鼠标和显示器控制台访问和控制多达16台计算机
访问连接到安装的任何计算机有两种方便的方法：
=使用位于每个单元前面板上的按钮端口选择开关
=从屏幕显示（OSD）提供的菜单中进行选择
特征：
=控制带有本地或远程控制台的16台计算机
=控制台和电脑兼容PS / 2 / USB鼠标和键盘
=通过前面板开关和OSD进行计算机选择
= LED显示屏，便于状态监控
=用于监视所有计算机的自动扫描模式
=卓越的视频质量
=安装方便，无需软件
=热插拔，添加或删除计算机进行维护，无需关闭交换机电源
=支持Windows系列，Solaris等
产品规格：
= type：wb-ki3116
=计算机连接：16
= CPU端口选择：前面板开关/ OSD菜单
=控制台连接器：键盘，1 x PS / 2,1 x USB母头
=鼠标：1 x PS / 2,1 x USB母头
=视频：1 x HDB-15女（蓝）
=远程连接：1 x RJ45
=连接器：
键盘：1 x PS / 2女（紫色），1 x USB母头
鼠标：1 x PS / 2女（绿色），1 x USB母头
视频：16 x HDB-15男（蓝）
= LED：在线：16选择：
16Video分辨率：1，600 x 900
电源：DC 5V，400mW
工作温度：-10〜50℃
储存温度：-20至60℃
房屋：金属
重量：0.95kg
尺寸（长x宽x高）：432 x 155 x 44毫米
| 类型 | WB-ki3116 | ||
| 计算机连接 | 16 | ||
| CPU端口选择 | 前面板开关/ OSD菜单 | ||
| 控制台连接器 | 键盘 | 1×PS / 2,1×USB母头; USB母头es;USB female | |
| 老鼠 | 1×PS / 2,1×USB母头; USB母头es;USB female | ||
| 视频 | 1 x HDB-15女（蓝） | ||
| Dongle连接器 | 键盘 | 1 x PS / 2女（紫色），1 x USB母头 | |
| 老鼠 | 1 x PS / 2女（绿色），1 x USB母头 | ||
| 视频 | 16 x HDB-15男（蓝） | ||
| IP端口 | 网络 | RJ45端口 | |
| 发光二极管 | 在线 | 16个红色LED | |
| 选 | 16绿色LED | ||
| 视频分辨率 | 1600*900 | ||
| 功率 | dc5v，400ma | ||
| 电源适配器 | 外部：AC 100〜230V | ||
| 工作温度 | -10℃〜50℃ | ||
| 储存温度 | -20℃〜60℃ | ||
| 住房 | 金属 | ||
| 重量 | 0.8公斤 | ||
| 尺寸（长x宽x高） | 432 x 155 x 44毫米 | ||
| Model NO. | WB-KI3116 |
| Type | Wired |
| Information content | Data |
| Condition | New |
| Trademark | Webitelecomms |
| Origin | Zhejiang China |
| Usage | Telephone, Computer, Workstation, Server, Laptop |
| Support Network | Ethernet |
| Certification | CE |
| Size | 432 X 155 X 44 Mm |
| Specification | CE RoHS |
| HS Code | 8517709000 |
16-port PS/2/USB Cat5 UTP/KVM (keyboard, video, mouse)
Switches are control units that allow access and control for up to 16pcs of computers from a single PS/2/USB keyboard, PS/2/USB mouse and monitor console
There are two convenient methods to access any computer connected to the installation:
=Using the push button port selection switches located on each unit's front panel
=Selecting from menus provided by the on-screen display (OSD)
Features:
=Controls 16pcs of computers with local or remote console
=Both the console and the computer are compatible with PS/2/USB mouse and keyboard
=Computer selection via front panel switches and OSD
=LED display for easy status monitoring
=Auto-scan mode for monitoring all the computers
=Superior video quality
=Easy installation, no software required
=Hot-pluggable, add or remove computers for maintenance without powering down the switch
=Supports Windows series, Solaris and more
Specifications:
=Type: WB-KI3116
=Computer connections: 16
=CPU port selection: Front panel switches/OSD menu
=Console connectors: Keyboard, 1 x PS/2, 1 x USB female
=Mouse: 1 x PS/2, 1 x USB female
=Video: 1 x HDB-15 female (blue)
=Remote connection: 1 x RJ45
=Dongle connectors:
Keyboard: 1 x PS/2 female (purple), 1 x USB female
Mouse: 1 x PS/2 female (green), 1 x USB female
Video: 16 x HDB-15 male (blue)
=LEDs: Online: 16Selected:
16Video resolution: 1, 600 x 900
Power: DC 5V, 400mW
Operating temperature: -10 to 50 C
Storage temperature: -20 to 60 C
Housing: Metal
Weight: 0.95kg
Dimensions (L x W x H ): 432 x 155 x 44mm
Switches are control units that allow access and control for up to 16pcs of computers from a single PS/2/USB keyboard, PS/2/USB mouse and monitor console
There are two convenient methods to access any computer connected to the installation:
=Using the push button port selection switches located on each unit's front panel
=Selecting from menus provided by the on-screen display (OSD)
Features:
=Controls 16pcs of computers with local or remote console
=Both the console and the computer are compatible with PS/2/USB mouse and keyboard
=Computer selection via front panel switches and OSD
=LED display for easy status monitoring
=Auto-scan mode for monitoring all the computers
=Superior video quality
=Easy installation, no software required
=Hot-pluggable, add or remove computers for maintenance without powering down the switch
=Supports Windows series, Solaris and more
Specifications:
=Type: WB-KI3116
=Computer connections: 16
=CPU port selection: Front panel switches/OSD menu
=Console connectors: Keyboard, 1 x PS/2, 1 x USB female
=Mouse: 1 x PS/2, 1 x USB female
=Video: 1 x HDB-15 female (blue)
=Remote connection: 1 x RJ45
=Dongle connectors:
Keyboard: 1 x PS/2 female (purple), 1 x USB female
Mouse: 1 x PS/2 female (green), 1 x USB female
Video: 16 x HDB-15 male (blue)
=LEDs: Online: 16Selected:
16Video resolution: 1, 600 x 900
Power: DC 5V, 400mW
Operating temperature: -10 to 50 C
Storage temperature: -20 to 60 C
Housing: Metal
Weight: 0.95kg
Dimensions (L x W x H ): 432 x 155 x 44mm
| Type | WB-KI3116 | ||
| Computer connections | 16 | ||
| CPU port selection | Front panel switches/OSD menu | ||
| Console connectors | Keyboard | 1×PS/2,1×USB femalees;USB femalees;USB female | |
| Mouse | 1×PS/2,1×USB femalees;USB femalees;USB female | ||
| Video | 1 x HDB-15 female (blue) | ||
| Dongle connectors | Keyboard | 1 x PS/2 female (purple),1 x USB female | |
| Mouse | 1 x PS/2 female (green) ,1 x USB female | ||
| Video | 16 x HDB-15 male (blue) | ||
| IP Port | Network | RJ45 port | |
| LEDs | On Line | 16 red LEDs | |
| Selected | 16 green LED | ||
| Video resolution | 1600*900 | ||
| Power | DC5V, 400mA | ||
| Power adaptor | External: AC 100~230V | ||
| Operating temperature | -10C~50C | ||
| Storage temperature | -20C~60C | ||
| Housing | Metal | ||
| Weight | 0.8 Kg | ||
| Dimensions(L x W x H ) | 432 x 155 x 44 mm | ||
