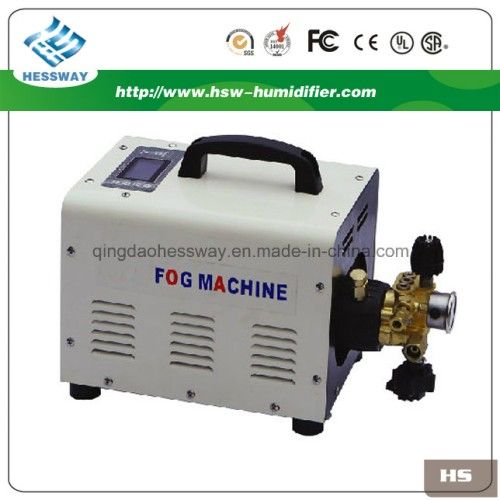

High Pressure Cooling fog with Misting System (FLOW 2L/MIN-4L/MIN)
These products are manufactured using heavy-duty high pressure axial pump, misting/ fogger nozzle, stainless steel/brass ferrule fittings, Brass/stainless steel fittings, hardware, pressure regulator, Flexible high pressure PE hose pipe, LCD electric control panel, electric motors. Please see detailed description below:
Function
1, Increase profitability
2, Reduce stress
3, Refresh the atmosphere
4, Cooling
Residential cooling, outdoor cooling, commercial place cooling
5, Control humidity(humidification):
Industrial, agricultural and horticultural: Green house, garden, livestock farming;
6, Reduce dust & smell (Dedusting and Deodorization):ion):ion):
Industry process, bulk powder, cement plant, foundry dust, fly ash control, waste transfer, recycling process
7. Insect Control
Please use water-soluble chemical to kill insect
Applicaton
? Humidification
? Mosquito repellent
? Lower temperature
? Disinfection
? Landscaping
? Deodorant
? Dust town
? To prevent static electricity.
Advantage
Stop working automaticly when lack of water;
Fog can spray with different frequencies;
Controlled by the Timer;
Fog can spray at different humidity range according to the data setted;
OPTIONAL
Humidity control
Stop water function
Relief pressure function
| MODEL | FLOW | RPM | MAX.PRESSURE | POWER | WITH THE NOZZLES | THE HOSE LENGTH | Standard accessories |
| AG8010-4 | 4L/MIN | 1450R/MIN | 80BAR | 800W/220V/50HZ | 50-55 | 100M | 1pcs water break protecting,1pcs 3.5M water inlet,1pcs water inlet filter,1pcs pressure gage |
| AG8010-3 | 3L/MIN | 1450R/MIN | 80BAR | 750W/220V/50HZ | 30-45 pcs | 70M |
| AG8010-2 | 2L/MIN | 960R/MIN | 80BAR | 250W/220V/50HZ | 25-30 pcs | 30M |
