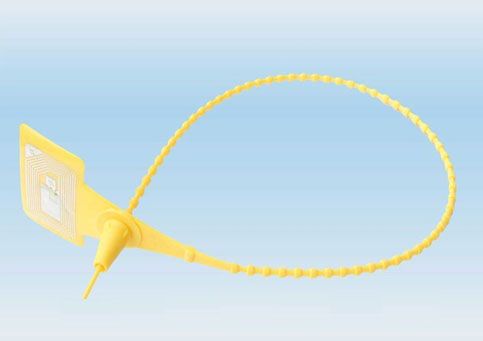

RFID Cable Binder Tag
RFID电缆标签
议价
加入意向| 型号。 | HF / UHF电缆扎带标签 |
| 类型 | 标签 |
| 标签类别 | 被动 |
| 应用领域 | 运输 |
| 数据传输模式 | 串行 |
| 商标 | techcrepower |
| 起源 | 中国 |
| 功能 | 识别，信息 |
| 读写方式 | 非接触式 |
| 结构体 | 读写卡 |
| 电源模式 | 被动卡 |
| 材料 | 尼龙+环氧 |
| 规范 | CE |
规范：
材质：尼龙+环氧树脂
尺寸：
120mm×25mm，装订尺寸：Dia20mm，白色，1.5g +/- 0.5gg +/- 0.5g+/-0.5g
230mm×17.8mm，装订尺寸：Dia55mm，黄色。 1.85克+/- +/-0.5克0.5克+/-0.5g
300mm×26mm，装订尺寸：Dia65mm，红色，4.75g +/- 0.5g +/- 0.5g+/-0.5g
395mm×31mm，装订尺寸：Dia100mm，蓝色8.42g +/- 0.5g +/- 0.5g+/-0.5g
470mm×46.5mm，装订尺寸：Dia120mm，黄色。 8±2g +/- 0.5gsmn; 2克+/-0.5克smn; 2g+/-0.5g
温度：-20〜+ 100
芯片：hf / uhf
高频（13.56MHz）芯片：
恩智浦Mifare 1K S50 / NXP Mifare 4K S70 / Mifare Ultralight
nxp mifare icode sli-l（512位）/ icode sli（1024位）/ icode sli-s（2048位）
nxp mifare desfire ev1 4k
Tag-it HF-1 Plus（TI2048）
Mifare 1K兼容：FM11RF08
超高频（860〜960MHz）芯片：
ucode epc g2（gen2），g2 xm，alien h3，impinj m3 / m4
Techcrepower是2006年以来非常专业的卡片产品供应商，我们提供了数亿智能卡，RFID
非接触卡，ABS钥匙标签，NFC标签，腕带标签，各种芯片的Disc标签125KHZ / 13.56MHZ在中国和全球。
我们专注于质量和服务为第一。相信如果您尝试，我们的产品和服务将非常令人印象深刻！
我们感谢有机会与您合作！
材质：尼龙+环氧树脂
尺寸：
120mm×25mm，装订尺寸：Dia20mm，白色，1.5g +/- 0.5gg +/- 0.5g+/-0.5g
230mm×17.8mm，装订尺寸：Dia55mm，黄色。 1.85克+/- +/-0.5克0.5克+/-0.5g
300mm×26mm，装订尺寸：Dia65mm，红色，4.75g +/- 0.5g +/- 0.5g+/-0.5g
395mm×31mm，装订尺寸：Dia100mm，蓝色8.42g +/- 0.5g +/- 0.5g+/-0.5g
470mm×46.5mm，装订尺寸：Dia120mm，黄色。 8±2g +/- 0.5gsmn; 2克+/-0.5克smn; 2g+/-0.5g
温度：-20〜+ 100
芯片：hf / uhf
高频（13.56MHz）芯片：
恩智浦Mifare 1K S50 / NXP Mifare 4K S70 / Mifare Ultralight
nxp mifare icode sli-l（512位）/ icode sli（1024位）/ icode sli-s（2048位）
nxp mifare desfire ev1 4k
Tag-it HF-1 Plus（TI2048）
Mifare 1K兼容：FM11RF08
超高频（860〜960MHz）芯片：
ucode epc g2（gen2），g2 xm，alien h3，impinj m3 / m4
产品介绍 | |||||||
卡>> RFID电缆扎带标签贴标签 | |||||||
名称 | 高品质RFID电缆扎带标签 | ||||||
关键参数 | 芯片 | mf 1k s50 / mf 4k s70; ucode epc g2（gen2），g2 xm，alien h3 | |||||
频率 | 13.56mhz，860-960mhz | ||||||
阅读距离 | 1-5m | ||||||
尺寸 | 可选的 | ||||||
材料 | 尼龙+环氧 | ||||||
证明 | ce，fcc，rohs | ||||||
优点 | 高品质，高可靠性，快速交货，良好的服务，合理的价格 | ||||||
卡/标签/ Fob *系列*推荐 | |||||||
MOQ | 1只/ 10件/ 20只/ 50件/ 100个/ 200个/ 500个/ 1000个 | ||||||
交货时间 | 订单后2-10天 | ||||||
外壳材料 | 优质PVC / PET / ABS | ||||||
物理尺寸 | 各种常用标准尺寸或按需。 | ||||||
厚度 | 各种常用厚度，或按需 | ||||||
重量 | NW5.8g +/-0.5克 | ||||||
可用颜色 | 白色/红色/黄色/黑色/蓝色或按需 | ||||||
可用打印方式 | 偏移/ SilKscreen /银或金色效果/紫外线 | ||||||
其他可用选项 | 芯片编码 | ||||||
卡片表面 | 哑光/光泽度 | ||||||
证明 | ISO，CE，FCC，ROHS，SGS | ||||||
打印颜色 | 可以打印成两面全色，还有泛颜色或丝网色，光泽/亚光层压/ UV膜/沙质表面 | ||||||
付款燕鸥 | 我们接受exw / fob / cif，l / c，paypal，t / t，西联，托管 | ||||||
交货方式 | 快递快递（DHL / FedEx / UPS / TNT / EMS），空运或海运 | ||||||
套餐详情 | 瘦卡停车场：200个/箱，5000个/箱，毛重约35kg | ||||||
厚度卡包装：每箱100件，每箱2000件 | |||||||
纸箱尺寸 | 50x4x8cm | ||||||
可用的工艺品 | 光泽，哑光，磨砂层压/成品 | ||||||
磁条 | |||||||
签名面板和划线板 | |||||||
条码不同类型 | |||||||
烫金/银色 | |||||||
个性化：热/喷墨/压花/激光雕刻/ UV印刷中的数字或文字 | |||||||
芯片可用 | 低频125khz智能卡 | EM4100 | 64位只读 | ||||
EM4102 | 64位 | ||||||
TK4100，tk28，em4200，EM4305 | |||||||
Temic 5567，T5557，T5577 | |||||||
Hitag1 | 2048位 | ||||||
Hitag2（ISO11784 / 85） | 256位 | ||||||
高频13.56mhz智能卡 | M1经典S50 1K | 1K字节 | ISO14443A | ||||
M1经典S70 4K | 4K字节 | ||||||
复旦fm11rf08 | 1K字节 | ||||||
tks50 | 1K字节 | ||||||
MF超轻 | 512bit的 | ||||||
mf灭火 | 2K / 4K / 8K字节 | ||||||
mf desfire ev1 | 2K / 4K / 8K字节 | ||||||
MF Plus | 2K / 4K字节 | ||||||
Icode SLI2 | 1024位 | iso 15693 / iso 18000 | |||||
icode sli-s | 2048位 | iso 15693 / iso 18000，epc | |||||
860MHz的〜960MHz的 | ucode hsl | 第2代 | |||||
ucode gen2 xl | |||||||
ata 5590 | |||||||
温度 | -10°C至+ 50°C + 50°Ceg;C+50°C | ||||||
工作湿度 | ≤80％; 80％;80% | ||||||
样品可用性 | 酒店可应要求提供免费样品 | ||||||
Techcrepower是2006年以来非常专业的卡片产品供应商，我们提供了数亿智能卡，RFID
非接触卡，ABS钥匙标签，NFC标签，腕带标签，各种芯片的Disc标签125KHZ / 13.56MHZ在中国和全球。
我们专注于质量和服务为第一。相信如果您尝试，我们的产品和服务将非常令人印象深刻！
我们感谢有机会与您合作！
| Model NO. | HF/UHF Cable binder tag |
| Type | Label |
| Label Category | Passive |
| Application Field | Transportation |
| Data Transmission Mode | Serial |
| Trademark | techcrepower |
| Origin | China |
| Function | Identification, Information |
| Read-Write Method | Non-Contact Type |
| Structure | Read-Write Card |
| Power Supply Mode | Passive Card |
| Material | Nylon+Epoxy |
| Specification | CE |
Specification:
Material: Nylon+Epoxy
Dimension:
120mm× 25mm, binding size: Dia20mm, white, 1.5g+/-0.5gg+/-0.5g+/-0.5g
230mm× 17.8mm, binding size: Dia55mm, yellow. 1.85g+/-0.5g+/-0.5g+/-0.5g
300mm× 26mm, binding size: Dia65mm, red, 4.75g+/-0.5g+/-0.5g+/-0.5g
395mm× 31mm, binding size: Dia100mm, blue 8.42g+/-0.5g+/-0.5g+/-0.5g
470mm× 46.5mm, binding size: Dia120mm, yellow. 8± 2g+/-0.5gsmn; 2g+/-0.5gsmn; 2g+/-0.5g
Temperature: -20 ~ +100
Chip: HF/UHF
High Frequency (13.56MHz) Chips:
NXP Mifare 1K S50 / NXP Mifare 4K S70 / Mifare Ultralight
NXP Mifare ICODE SLI-L(512 bit) / ICODE SLI(1024 bit) / ICODE SLI-S(2048 bit)
NXP Mifare DESFire EV1 4K
Tag-it HF-1 Plus (TI2048)
Mifare 1K-Compatible: FM11RF08
Ultra High Frequency (860~960MHz) Chip:
UCODE EPC G2 (GEN2), G2 XM, Alien H3, Impinj M3/M4
Techcrepower is one very professional card products supplier since 2006, we had provided hundreds of millions of Smart card, RFID
contactless card, ABS key tag, NFC tag, Wristband tag, Disc tag with various chips 125KHZ/13.56MHZ in China and worldwide.
We focus on quality and services as No.1. Trust you would be very impressive of our products and services if you try!
We appreciate any opportunity to cooperate with you!
Material: Nylon+Epoxy
Dimension:
120mm× 25mm, binding size: Dia20mm, white, 1.5g+/-0.5gg+/-0.5g+/-0.5g
230mm× 17.8mm, binding size: Dia55mm, yellow. 1.85g+/-0.5g+/-0.5g+/-0.5g
300mm× 26mm, binding size: Dia65mm, red, 4.75g+/-0.5g+/-0.5g+/-0.5g
395mm× 31mm, binding size: Dia100mm, blue 8.42g+/-0.5g+/-0.5g+/-0.5g
470mm× 46.5mm, binding size: Dia120mm, yellow. 8± 2g+/-0.5gsmn; 2g+/-0.5gsmn; 2g+/-0.5g
Temperature: -20 ~ +100
Chip: HF/UHF
High Frequency (13.56MHz) Chips:
NXP Mifare 1K S50 / NXP Mifare 4K S70 / Mifare Ultralight
NXP Mifare ICODE SLI-L(512 bit) / ICODE SLI(1024 bit) / ICODE SLI-S(2048 bit)
NXP Mifare DESFire EV1 4K
Tag-it HF-1 Plus (TI2048)
Mifare 1K-Compatible: FM11RF08
Ultra High Frequency (860~960MHz) Chip:
UCODE EPC G2 (GEN2), G2 XM, Alien H3, Impinj M3/M4
Products Introduction | |||||||
Card ﹥﹥ RFID Cable binder tagder tag | |||||||
Name | High Quality RFID Cable binder tag | ||||||
Key Parameter | Chips | MF 1K S50 / MF 4K S70; UCODE EPC G2 (GEN2),G2 XM,Alien H3 | |||||
Frequency | 13.56MHZ, 860-960MHZ | ||||||
Reading Distance | 1-5m | ||||||
Dimension | Optional | ||||||
Material | Nylon+Epoxy | ||||||
Certification | CE, FCC, RoHS | ||||||
Advantage | High Quality, High Reliability, Fast Delivery, Good Servies, Reasonable prices | ||||||
Card/Tag/Fob *Series* Recommend | |||||||
MOQ | 1pcs/10pcs/20pcs/50pcs/100pcs/200pcs/500pcs/1000pcs | ||||||
Lead time | 2-10 days after order | ||||||
Housing Material | High quality PVC/PET/ABS | ||||||
Physical Dimension | All kinds of commonly used standard size, or on demand. | ||||||
Thickness | All kinds of commonly used thickness, or on demand | ||||||
Weight | NW5.8g+/-0.5g | ||||||
Available Colors | White/Red/Yellow/Black/Blue, or on demand | ||||||
Available Printing Method | Offset/SilKscreen/Silver or Gold Gilittering Effect/UV Pring | ||||||
Other Available Options | Chip Encoding | ||||||
Card Surface | Matte/ gloss finish | ||||||
Certification | ISO,CE,FCC,RoHS,SGS | ||||||
Printing Color | can be printed in 1 to full color on both sides, and also pantone colors or silk screen colors , glossy/matt laminated/UV film/sandy surface | ||||||
Payment terns | We accept EXW/FOB/CIF, L/C, PayPal, T/T, Western Union, ESCROW | ||||||
Delivery way | By Express Courier(DHL/FedEx/UPS/TNT/EMS), By Air or Sea shipment | ||||||
Package details | Thin card parkage: 200pcs/box, 5000pcs/carton,gross weight around 35kgs | ||||||
Thickness card package: 100pcs per box, 2000pcs per carton | |||||||
Carton Size | 50x4x8cm | ||||||
Available crafts | glossy, matt, frosted laminated/finished | ||||||
magnetic strip | |||||||
signature panel and scratch panel | |||||||
barcode in different types | |||||||
hotstamping gold/silver color | |||||||
personalization: numbers or texts in thermal/inkjet /embossed/laser engraved/UV printing | |||||||
Chip Available | Low frequency 125khz smart card | EM4100 | 64bit read only | ||||
EM4102 | 64bit | ||||||
TK4100,TK28,EM4200,EM4305 | |||||||
Temic 5567,T5557,T5577 | |||||||
Hitag1 | 2048bit | ||||||
Hitag2(ISO11784/85) | 256bit | ||||||
High frequency 13.56mhz smart card | M1 Classic S50 1K | 1K byte | ISO14443A | ||||
M1 Classic S70 4K | 4K byte | ||||||
FUDAN FM11RF08 | 1K byte | ||||||
TKS50 | 1K byte | ||||||
MF Ultralight | 512bit | ||||||
MF DESFire | 2K/4K/8K byte | ||||||
MF DESFire EV1 | 2K/4K/8K byte | ||||||
MF Plus | 2K/4K byte | ||||||
Icode SLI2 | 1024 bit | ISO 15693/ISO 18000 | |||||
Icode SLI-S | 2048 bit | ISO 15693/ISO 18000, EPC | |||||
860MHz~960MHz | UCODE HSL | GEN 2 | |||||
UCODE GEN2 XL | |||||||
ATA 5590 | |||||||
Temperature | -10°C to +50°C+50°Ceg;C+50°C | ||||||
Operating humidity | ≤80%;80%;80% | ||||||
Sample Availability | Free samples are available upon request | ||||||
Techcrepower is one very professional card products supplier since 2006, we had provided hundreds of millions of Smart card, RFID
contactless card, ABS key tag, NFC tag, Wristband tag, Disc tag with various chips 125KHZ/13.56MHZ in China and worldwide.
We focus on quality and services as No.1. Trust you would be very impressive of our products and services if you try!
We appreciate any opportunity to cooperate with you!
