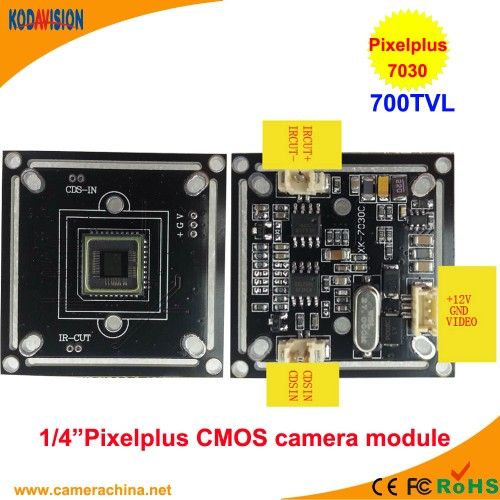

闭路电视摄像模块
工业应用摄像机强烈要求在低照度下的高画质。针对这一需求，我们采用Pixel plus PC7030 CMOS图像传感器。 PC7030具有756 X504有效像素阵列和列/行驱动电路，逐步读出像素数据。 CDS电路减少了由各种来源产生的噪声信号，主要是由于工艺变化引起的。像素输出与自身的复位电平进行比较，只有差分信号被采样，从而降低固定误差信号电平。每个R，G，B像素输出可以乘以不同的增益因子，以平衡各种光线条件下图像的颜色。模拟信号一次一行转换为数字形式，一行数据逐列流出。拜耳RGB数据通过一系列图像信号处理块，最终产生YCbCr 4：2：2输出数据。图像信号处理包括伽马校正，缺陷校正，低通滤波，色彩插值，边缘增强，色彩校正，对比度拉伸，色彩饱和度，白平衡，曝光控制和背光补偿等操作。只需通过2线串行接口修改寄存器文件即可编程内部功能和输出信号时序。
核心功能：
尺寸：32 * 32mm，38 * 38mm可选
使用OSD菜单，OSD控制电缆可选
规范
为什么选择Kodavision？
我们的技术：
Kodavision每年将其销售收入的10％以上用于研发，拥有80多名工程师的高素质研发团队。 Kodavision在申请程序中获得了72项授权专利，其他23项。产品，技术研发涵盖全系列模拟摄像机，智能云台摄像机，IP摄像机，DVR，视频管理平台，NVR等.Kodavision坚持以客户需求为导向的发展创新理念，符合国际标准产品质量为目标，为全球客户提供高质量，高性价比的产品。ents.
我们的产品：
作为Sony，Netchip，Micron和海思的VIP合作伙伴，Kodavision以极具竞争力的价格获得了高品质的CCD / CMOS / DSP /电子核心组件。 Kodavision严格按照ISO 9001 2008质量管理和6S管理体系。拥有无尘无尘车间，完全模拟暗室，浸水槽，加热机，老化设备，大量原材料采购，kodavision控制产品质量和生产成本非常出色，有助于kodavision赢得越来越多的市场份额。
我们的保修：
感谢与Kodavision合作！为保护您的权益，Kodavision特此就柯达系列产品作出以下保证承诺：
1.本保修仅适用于从Kodavision购买的产品。
2. Kodavision保证本产品在指定期限内免于制造商的维护。 （2年保修。）
3.在指定的保修期内，Kodavision将维修或更换非消耗品（不包括备件，LED，眼镜和镜头，圆顶塑料盖，如果没有声明有缺陷，则在收到15天后不在保修范围内的货物。）外壳上的任何划痕应在收到货物后15天内宣布。
我们的服务：
您可以享受Kodavision可靠的服务如下：
1.无最小起订量：没有最小起订量，用于测试样品订单，最小起订量从10PCS开始批量订单。
2.交货时间短：样品订购1-3天，按质量按质量订购5-12天。
3.灵活付款：T / T，西联汇款等
4.免费OEM：1.在产品上打印LOGO。 2.内置LOGO软件
5.长期保修：2年的保修期和整个使用寿命
6.最低运输成本：我们与EMS，TNT，DHL，POST和UPS有战略合作关系。
我们的客户反馈：
与Kodavision合作超过5年，他们从不让我失望，优质的服务和优质的产品，强烈推荐！
- 来自德国的Josh
我对Kodavision提供的售后服务感到满意，我们长期合作。
- 来自马来西亚的维克
价格可能不是最便宜的，但与其他产品的质量和公司权力相比非常合理。这就是为什么我选择Kodavision的原因
- 约翰形成美国

CCTV Camera Module
High picture quality at the low illumination is strongly requested for industrial application cameras. Responding to this demand, We adopt Pixel plus PC7030 CMOS image sensors. PC7030 has 756 X504 effective pixel array and column/row driver circuits to read out the pixel data progressively. CDS circuit reduces noise signals generated from various sources mainly resulting from process variations. Pixel output is compared with the reset level of its own and only the difference signal is sampled, thus reducing fixed error signal level. Each of R, G, B pixel output can be multiplied by different gain factors to balance the color of images in various light conditions. The analog signals are converted to digital forms one line at a time and 1 line data are streamed out column by column. The Bayer RGB data are passed through a sequence of image signal processing blocks to finally produce YCbCr 4: 2: 2 output data. Image signal processing includes such operations as gamma correction, defect correction, low pass filter, color interpolation, edge enhancement, color correction, contrast stretch, color saturation, white balance, exposure control and back light compensation. Internal functions and output signal timing can be programmed simply by modifying the register files through 2-wire serial interface.
Core feature:
Size:32*32mm,38*38mm optional
With OSD menu, OSD control cable optional
SPECIFICATION
Why select Kodavision?
Our Technology:
Kodavision puts more than 10% of its sales revenue into research and development each year, has a high-quality R&D team of over 80 engineers. Kodavision has achieved 72 authorized patents with other 23 ones in the application procedures. Products, technology research and development cover a full range of analogue camera, intelligent PTZ camera, IP camera, DVR, video management platform, NVR etc. Kodavision sticks to a developmental and innovative idea which is oriented by customer demands, takes the international standard of product's quality as a goal, and provides high-quality and cost-effective products to global clients.ents.ents.
Our products:
As a VIP partner of Sony, Netchip, Micron and Hisilicon, Kodavision gets top quality CCD/CMOS/DSP/electronic core components at very competitive price. Kodavision strictly follow the ISO 9001 2008 quality management and 6S management system. With kodavision dust-free workshop, full simulation darkroom, water leaching tank, heating machines, aging facilities, massive raw material purchasing, kodavision controls very excellently in products quality and production cost, which helps kodavision winning more and more market share all over the word.
Our Warranty:
Thanks for cooperating with Kodavision! To protect your rights and interests, Kodavision hereby makes the following guarantee commitments on kodavision series products:
1. This warranty is provided only for product purchased from Kodavision.
2. Kodavision warrants this product to be free from manufacturer's maintenance for a specified period. ( 2 years of warranty. )
3. Within the specified warranty period, Kodavision will repair or replace non consumable parts (excluding The spare parts, LEDs, glasses, and lens, plastic cover for dome, if without declaration of defective, are excluded from warranty after 15 days of the receipt of the cargo. ) Any scratches on the outer housings should be declared within 15 days after the receipt of the cargo.
Our Service:
You can enjoy Kodavision reliable services as follow:
1. No MOQ: There is no MOQ for testing sample order, MOQ starts from 10PCS for mass order.
2. Short lead time: 1-3 days for sample order, 5-12 days for mass order according to actuall quanlity.
3. Flexible Payment: T/T, Western Union and LC etc
4. Free OEM: 1. Printing your LOGO on product. 2. Built-in your LOGO in software
5. Long term warranty: 2 Years for Warranty and Whole life time after service
6. Lowest shipping cost: We have strategic cooperation relation with EMS, TNT, DHL, POST and UPS.
Our customer's feedback:
Having done business with Kodavision for over 5 years, they never let me down, great service and high quality products, highly recommend!
-- Josh from German
I am satisfied with the after-sale service provided by Kodavision which keeps our long time cooperation.
-- Vic from Malaysia
The price may not be the cheapest, but very reasonable comparing with others' products' quality and company power. That's the reason why I choose Kodavision
-- John form America
