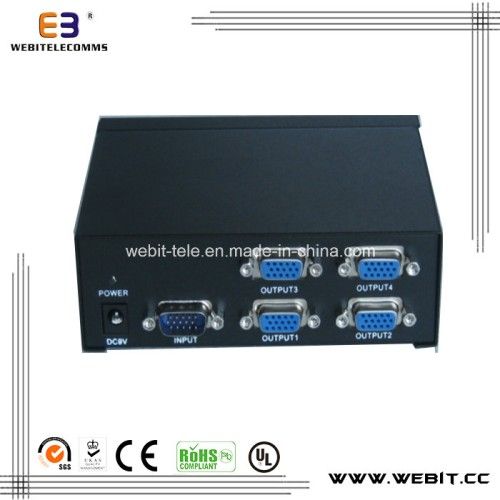

4 Ports VGA Splitter with Metal Housing
4端口带金属外壳的VGA分路器
议价
加入意向| 型号。 | WB-sp1450 |
| 功能 | 信号传输设备 |
| 条件 | 新 |
| 商标 | Webitelecomms |
| 起源 | 浙江中国 |
| 类型 | 有线电视（有线电视）设备 |
| 证明 | CE |
| 尺寸 | 86 * 122 * 24 Mm |
| 规范 | ce，rohs，iso，sgs |
| HS编码 | 8517709000 |
WB-VS-1450是具有4个端口的分离器，它允许一台PC同步将相同的图像分割成4个VGA输出设备，支持两个级联
特征：
允许一台PC将相同的图像分割到4台显示器/投影设备/其他视频输出设备上
支持2级联系
视频分辨率：2560 x 1680
距离可达75m
完美的股票市场，国际展览，会议室，教室/交易设施，展会，公共广播，其中需要几个最高质量的视频信号
规范：
类型：wb-sp1450
连接：
输入：15针HDB
输出：4 x 15针HDB
LED：1个电源LED
VGA带宽：500MHz
VGA分辨率：2，560 x 1，680
信号：VGA，SVGA，多同步
传输距离：，UL >>>
电脑到VGA分配器：7.5m
监控到VGA分配器：75m
功率：dc 9v / 1a
房屋：金属
重量：320g
尺寸（长x宽x高）：122 x 86 x 24毫米
特征：
允许一台PC将相同的图像分割到4台显示器/投影设备/其他视频输出设备上
支持2级联系
视频分辨率：2560 x 1680
距离可达75m
完美的股票市场，国际展览，会议室，教室/交易设施，展会，公共广播，其中需要几个最高质量的视频信号
规范：
类型：wb-sp1450
连接：
输入：15针HDB
输出：4 x 15针HDB
LED：1个电源LED
VGA带宽：500MHz
VGA分辨率：2，560 x 1，680
信号：VGA，SVGA，多同步
传输距离：，UL >>>
电脑到VGA分配器：7.5m
监控到VGA分配器：75m
功率：dc 9v / 1a
房屋：金属
重量：320g
尺寸（长x宽x高）：122 x 86 x 24毫米
| 类型 | WB-sp1450 | |
| 带宽 | 500MHz的 | |
| 信号 | 产品类别 | 1到4 |
| 连接器类型 | 输入hd15m输出hd15f | |
| 最小输入电压 | 平0.5Vp-P | |
| 最大输入电压 | 1.0VP-P | |
| I / O阻抗 | 75Ω | |
| 视频 | 最佳分辨率 | 1920*1440 |
| 最大分辨率 | 2048*1536 | |
| 水平频率 | 30-120khz | |
| 垂直频率 | 40-120Hz | |
| 中肯 | 尺寸（mm） | 432 * 115 *45毫米 |
| 功率 | USB电源（DC9V / 300mA） | |
| 屋 | 金属 | |
| Model NO. | WB-SP1450 |
| Function | Signal Transmitting Device |
| Condition | New |
| Trademark | Webitelecomms |
| Origin | Zhejiang China |
| Type | CATV (Cable Television) Equipment |
| Certification | CE |
| Size | 86*122*24 Mm |
| Specification | CE, RoHS, ISO, SGS |
| HS Code | 8517709000 |
WB-VS-1450 is a splitter with 4 ports, it allows one PC to split the same image onto 4 VGA output equipment synchronously, supports cascade by two ties
Features:
Allows one PC to split the same image onto 4 monitors/projection equipment/other video output equipment
Supports cascade by 2 ties
Video resolution: 2560 x 1680
Distance can be connected up to 75m
Perfect for stock market, international expos, conference room, classrooms/trading facilities, tradeshows, public broadcasting, where highest quality video signals on several is needed
Specification:
Type: WB-SP1450
Connection:
Input: 15-pin HDB
Output: 4 x 15-pin HDB
LEDs: 1 power LEDs
VGA bandwidth: 500MHz
VGA resolution: 2, 560 x 1, 680
Signal: VGA, SVGA, multi-sync
Transmission distance: , UL﹥>>
Computer to VGA splitter: 7.5m
Monitor to VGA splitter: 75m
Power: DC 9V/1A
Housing: Metal
Weight: 320g
Dimensions (L x W x H): 122 x 86 x 24mm
Features:
Allows one PC to split the same image onto 4 monitors/projection equipment/other video output equipment
Supports cascade by 2 ties
Video resolution: 2560 x 1680
Distance can be connected up to 75m
Perfect for stock market, international expos, conference room, classrooms/trading facilities, tradeshows, public broadcasting, where highest quality video signals on several is needed
Specification:
Type: WB-SP1450
Connection:
Input: 15-pin HDB
Output: 4 x 15-pin HDB
LEDs: 1 power LEDs
VGA bandwidth: 500MHz
VGA resolution: 2, 560 x 1, 680
Signal: VGA, SVGA, multi-sync
Transmission distance: , UL﹥>>
Computer to VGA splitter: 7.5m
Monitor to VGA splitter: 75m
Power: DC 9V/1A
Housing: Metal
Weight: 320g
Dimensions (L x W x H): 122 x 86 x 24mm
| Type | WB-SP1450 | |
| Bandwidth | 500MHz | |
| signal | Product Type | 1 into 4 |
| Connector type | INPUT HD15M OUTPUT HD15F | |
| Min input voltage | 0.5Vp-p | |
| Max input voltage | 1.0Vp-p | |
| I/O impedance | 75Ω | |
| Video | Optimal Resolution | 1920*1440 |
| Max Resolution | 2048*1536 | |
| Horizontal frequency | 30-120KHz | |
| Vertical frequency | 40-120Hz | |
| pertinence | Dimension (mm) | 432*115*45mm |
| Power | USB Power Supply ( DC9V/300mA ) | |
| House | Metal | |
