产品规格
流畅性好
合理的流量分配。

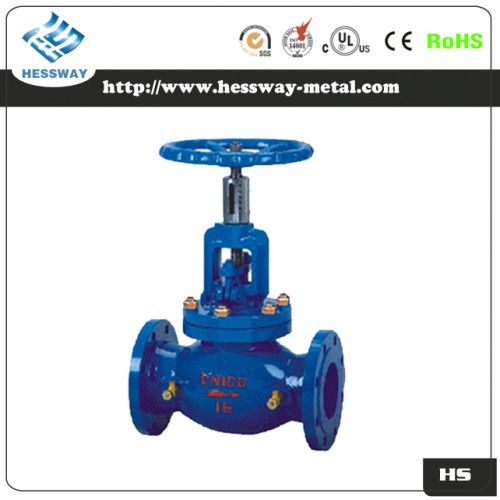

水平衡阀
一般
KPF平衡阀是一种具有特殊功能的调节阀。具有优良的流动性能和合理的流量分配性能，实现定量流量，有效解决了供热（空调）系统中存在的房间不均匀的冷热温度问题。由于KPF平衡阀具有打开指示器，打开锁定装置和小型压力测试阀，用于确定流量，只需在分支管道上安装适当的平衡阀和用户进入，然后用专用智能量表对其进行初级调节，最后锁定它可以在一定的合理范围内控制系统中的流量就可以了。
KPF平衡阀解决了“大流量，小温差”的不合理问题，成为供热系统的良好选择。 KPF平衡阀可以在供水管上安装，也可以安装在回水管上。但是，我们建议通常在回水管上安装。特别是对于高温回路，更需要安装在回水管上方便维修。安装有KPF平衡阀的管道不需要截止阀阀门。
技术规格
公称压力：1.6MPa
公称直径：15〜600mm
适用介质：水，油，非腐蚀性液体
适用温度：0〜100℃; Cdeg;C
法兰端：gb / t 17241.6，gb / t 9113，asme b16.1 / b16.5，din2532-2534，din2542-2544
检验和试验：GB / T 13927，API 598
外部连接尺寸

主要零部件和材料

Specifications
1.Excellent flow performance
2.Reasonable flow distribution.
3.water balancing valve
GENERAL
KPF balancing valve is one type of regulating valve which has special function. It has excellent flow performance and reasonable flow distribution performance to achieve quantificational flow and then resolve effectively the problem of uneven cold and hot temperature in the room existing in the heat supply (air conditioning) system. Because KPF balancing valve has open indicator, open locking device and small pressure test valve for determining flow, only need mounting proper balancing valve on the branch pipeline and user access, and then take a primary regulating on it with a special intelligent gauge, and lastly it will be OK by locking it to control the flow in the system within certain reasonable range.
KPF balancing valve resolves the unreasonable problem of 'heavy flow, small temperature difference', which makes it as the good choice for the heat supply system. KPF balancing valve can be mouned on the water supply pipe, or can also be mounted on water return pipe. But, we suggest normally it be mouned on the water return pipe. Especially for the high temperature loop, it has more necessary to mount on the water return pipe for convenient repair. The pipe mounted with KPF balancing valve doesn't need globe valve.lobe valve.
TECHNICAL SPECIFICATIONS
Nominal Pressure: 1.6MPa
Nominal Diameter: 15~600mm
Applicable Medium: Water, Oil, Non-corrosive Liquids
Applicable Temperature: 0~100°Cdeg;Cdeg;C
Flanged Ends: GB/T 17241.6, GB/T 9113, ASME B16.1 / B16.5, DIN2532-2534, DIN2542-2544
Inspection and Test: GB/T 13927, API 598
EXTERNAL CONNECTION DIMENSIONS

MAIN PARTS AND MATERIALS
