Two Way or Three Way Motorized Valve with Fan Coil
双向或三通电动阀带风机盘管
| 型号。 | FDDF-220 |
| 连接形式 | 线 |
| 渠道 | 直通型 |
| 类型 | 固定球阀 |
| 应用 | 工业用水，工业用水，家庭用品 |
| 商标 | HS |
| 起源 | 青岛中国 |
| 材料 | 黄铜 |
| 驾驶模式 | 蜗轮 |
| 结构体 | 柔性球阀 |
| 功能 | 吹气阀 |
| 直径 | 1/2'，3/4'，1'，（可选）uot; ， （可选的） |
| 规范 | rohs iso ce |
| HS编码 | 8481804090 |
产品描述
双向或三通电机风扇盘管;尺寸：1/2'，3/4'，1'，（可选）uot;（可选）
空调阀（FLDF-220系列）用于控制HVAC系统中由致动器和阀体组成的水系统的开/关。执行器将驱动阀杆，上下移动阀盘。
技术参数
工作电压：AC24VAC±10％，50 / 60Hz（特制：24VAC，110VAC）110VAC） 110VAC)
功耗：4W（仅当打开和关闭阀门时）
每个动作的运行时间：≤18S（Valve-On）; ≤15S（阀关）ve-Off）ve-Off)
公称压力：1.6Mpa
应用介质：冷或热水，乙二醇水溶液（≤50％），0％）。0%).
中温：2-75℃Crdm; Crdm; C
工作环境温度：-5〜+50ºCrdm; Crdm; C
阀体材质：黄铜（表面镀镍）
执行器材料：外盖：PC工程塑料
基地：增强PPS（防火）
双向或三通电机风扇盘管;尺寸：1/2'，3/4'，1'，（可选）uot;（可选）
空调阀（FLDF-220系列）用于控制HVAC系统中由致动器和阀体组成的水系统的开/关。执行器将驱动阀杆，上下移动阀盘。
技术参数
工作电压：AC24VAC±10％，50 / 60Hz（特制：24VAC，110VAC）110VAC） 110VAC)
功耗：4W（仅当打开和关闭阀门时）
每个动作的运行时间：≤18S（Valve-On）; ≤15S（阀关）ve-Off）ve-Off)
公称压力：1.6Mpa
应用介质：冷或热水，乙二醇水溶液（≤50％），0％）。0%).
中温：2-75℃Crdm; Crdm; C
工作环境温度：-5〜+50ºCrdm; Crdm; C
阀体材质：黄铜（表面镀镍）
执行器材料：外盖：PC工程塑料
基地：增强PPS（防火）
| 模型 | 规格 | 尺寸 | KVS（立方米/小时） | |||||
| 电压 | DN（毫米） | 内螺纹（G） | L | H | H1 | |||
| 二通阀 | ckf7315t-05 | 230VAC | 15 | 1/2" | 80 | 93 | 2.8 | |
| ckf7320t-05 | 20 | 3/4" | 80 | 93 | 3.2 | |||
| ckf7325t-05 | 25 | 1" | 85 | 100 | 3.8 | |||
| 三通阀 | ckf3320t-05 | 20 | 3/4" | 80 | 93 | 40 | 3.2 | |
| ckf3325t-05 | 25 | 1'（外螺纹）读） | 90 | 132.5 | 42.5 | 3.8 | ||
| 二通阀 | ckf7315t-24 | 24VAC | 15 | 1/2" | 80 | 93 | 2.8 | |
| ckf7320t-24 | 20 | 3/4" | 80 | 93 | 3.2 | |||
| ckf7325t-24 | 25 | 1" | 85 | 100 | 3.8 | |||
| 三通阀 | ckf3320t-24 | 20 | 3/4" | 80 | 93 | 40 | 3.2 | |
| ckf3325t-24 | 25 | 1'（外螺纹）读） | 90 | 132.5 | 42.5 | 3.8 | ||
| 二通阀 | ckf7315t-110 | 110VAC | 15 | 1/2" | 80 | 93 | 2.8 | |
| ckf7320t-110 | 20 | 3/4" | 80 | 93 | 3.2 | |||
| ckf7325t-110 | 25 | 1" | 85 | 100 | 3.8 | |||
| 三通阀 | ckf3320t-110 | 20 | 3/4" | 80 | 93 | 40 | 3.2 | |
| ckf3325t-110 | 25 | 1'（外螺纹）读） | 90 | 132.5 | 42.5 | 3.8 | ||
| Model NO. | FDDF-220 |
| Connection Form | Thread |
| Channel | Straight Through Type |
| Type | Fixed Ball Valve |
| Application | Industrial Usage, Water Industrial Usage, Household Usage |
| Trademark | HS |
| Origin | Qingdao China |
| Material | Brass |
| Driving Mode | Worm Gear |
| Structure | Flexible Ball Valve |
| Function | Blow-Down Valve |
| Diameter | 1/2' , 3/4' , 1' , (Optional)uot; , (Optional) |
| Specification | ROHS ISO CE |
| HS Code | 8481804090 |
Product Description

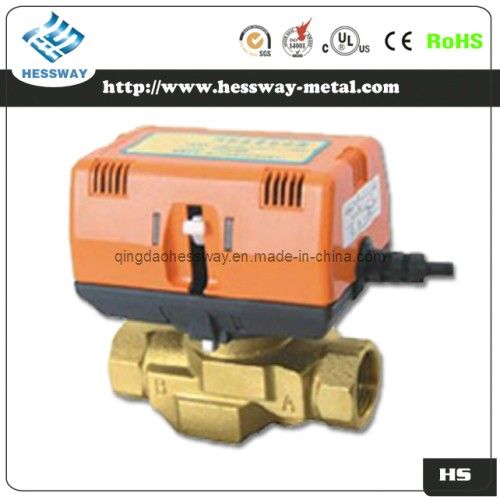

Two way or three way motorized valve with fan coil;size: 1/2', 3/4', 1', (Optional)uot;, (Optional)
Air Conditioner Valve(FLDF-220 series) are used to control the on/off of the water system in HVAC system, consisting of actuator and valve body. Actuator will drive the stem, moving valve disc up and down.
Technical Parameter
Working Voltage: AC24VAC± 10%, 50/60Hz (Special-Made: 24VAC, 110VAC) 110VAC) 110VAC)
Power Consumption: 4W(only when you open and close the valve)
Running Time of Each Action: ≤ 18S (Valve-On); ≤ 15S(Valve-Off)ve-Off)ve-Off)
Nominal Pressure: 1.6Mpa
Applied Medium: Cold or hot water, glycol water liquor (≤ 50%).0%).0%).
Medium Temperature: 2-75º Crdm; Crdm; C
Working Environment Temperature: -5~+50º Crdm; Crdm; C
Material of Valve Body: Brass ( Surface is plated with nickel)
Material of Actuator: Outer Cover: PC Engineering Plastic
Base: Enhanced PPS (fire-resistant)
Two way or three way motorized valve with fan coil;size: 1/2', 3/4', 1', (Optional)uot;, (Optional)
Air Conditioner Valve(FLDF-220 series) are used to control the on/off of the water system in HVAC system, consisting of actuator and valve body. Actuator will drive the stem, moving valve disc up and down.
Technical Parameter
Working Voltage: AC24VAC± 10%, 50/60Hz (Special-Made: 24VAC, 110VAC) 110VAC) 110VAC)
Power Consumption: 4W(only when you open and close the valve)
Running Time of Each Action: ≤ 18S (Valve-On); ≤ 15S(Valve-Off)ve-Off)ve-Off)
Nominal Pressure: 1.6Mpa
Applied Medium: Cold or hot water, glycol water liquor (≤ 50%).0%).0%).
Medium Temperature: 2-75º Crdm; Crdm; C
Working Environment Temperature: -5~+50º Crdm; Crdm; C
Material of Valve Body: Brass ( Surface is plated with nickel)
Material of Actuator: Outer Cover: PC Engineering Plastic
Base: Enhanced PPS (fire-resistant)
| Model | Spec | Dimension | Kvs(m3/h) | |||||
| Voltage | DN(mm) | Inner Screw Thread (G) | L | H | H1 | |||
| 2-way Valve | CKF7315T-05 | 230VAC | 15 | 1/2" | 80 | 93 | 2.8 | |
| CKF7320T-05 | 20 | 3/4" | 80 | 93 | 3.2 | |||
| CKF7325T-05 | 25 | 1" | 85 | 100 | 3.8 | |||
| 3-way Valve | CKF3320T-05 | 20 | 3/4" | 80 | 93 | 40 | 3.2 | |
| CKF3325T-05 | 25 | 1' (External Screw Thread )read ) | 90 | 132.5 | 42.5 | 3.8 | ||
| 2-way Valve | CKF7315T-24 | 24VAC | 15 | 1/2" | 80 | 93 | 2.8 | |
| CKF7320T-24 | 20 | 3/4" | 80 | 93 | 3.2 | |||
| CKF7325T-24 | 25 | 1" | 85 | 100 | 3.8 | |||
| 3-way Valve | CKF3320T-24 | 20 | 3/4" | 80 | 93 | 40 | 3.2 | |
| CKF3325T-24 | 25 | 1' (External Screw Thread )read ) | 90 | 132.5 | 42.5 | 3.8 | ||
| 2-way Valve | CKF7315T-110 | 110VAC | 15 | 1/2" | 80 | 93 | 2.8 | |
| CKF7320T-110 | 20 | 3/4" | 80 | 93 | 3.2 | |||
| CKF7325T-110 | 25 | 1" | 85 | 100 | 3.8 | |||
| 3-way Valve | CKF3320T-110 | 20 | 3/4" | 80 | 93 | 40 | 3.2 | |
| CKF3325T-110 | 25 | 1' (External Screw Thread )read ) | 90 | 132.5 | 42.5 | 3.8 | ||
