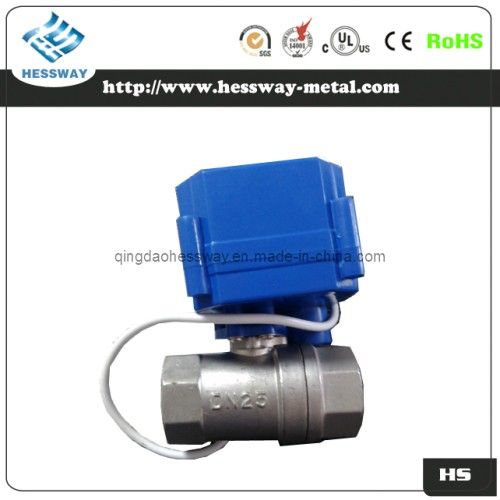

Mini Electric Valve for Water Treatment
用于水处理的微型电动阀门
| 型号。 | HS-dn25b2b |
| 连接形式 | 线 |
| 公称压力 | ansi课150-900 |
| 结构体 | 浮球阀 |
| 功能 | 吹气阀 |
| 应用 | 工业用水，工业用水，家庭用品 |
| 商标 | HS |
| 规范 | iso ce rohs |
| HS编码 | 8481804090 |
| 材料 | 不锈钢 |
| 驾驶模式 | 电动 |
| 渠道 | 直通型 |
| 类型 | 三通球阀 |
| 温度 | 高温 |
| 保护 | IP67 |
| 运输包装 | 标准出口包装 |
| 起源 | 青岛 |
产品描述
小型电动阀CWX适用于小型设备，水处理，暖通空调，自动控制（HS-25B2B）
产品特点
迷你尺寸适合小型设备
专利技术 - 浮动密封结构
使用寿命长达7万到10万圈
工作电流低，只有60〜80mA
IP67和F型可用
手动超驰功能安全简单
应用
1）非常适合水处理行业。
2）要求快速开启和快速关闭。
3）更换普通电磁阀，特别是当电磁阀无法可靠工作时。
4）水计费，
5）HVAC（加热，通风和空调）
6）太阳能热水器
7）饮用水设备
8）自动灌溉和净水。
9）小型过滤系统
10）适合潮湿条件。
技术指标
尺寸：1/4至1-1 / 4英寸
材质：不锈钢（304,316），黄铜，PPO
电压：5,12,24,110至220V AC / DC
工作压力：1.0
最大压力：1.6mPa
执行机构旋转：90度
旋转方向：双作用
功率：最大5W
手动覆盖：可用
材质说明
执行器：耐热
ABS密封件：PTFE，硅橡胶球座，EPDM和NBR阀杆座，NBR O型圈
身体：黄铜或不锈钢
球：黄铜或不锈钢
阀杆：黄铜或不锈钢
小型电动阀CWX适用于小型设备，水处理，暖通空调，自动控制（HS-25B2B）
产品特点
迷你尺寸适合小型设备
专利技术 - 浮动密封结构
使用寿命长达7万到10万圈
工作电流低，只有60〜80mA
IP67和F型可用
手动超驰功能安全简单
应用
1）非常适合水处理行业。
2）要求快速开启和快速关闭。
3）更换普通电磁阀，特别是当电磁阀无法可靠工作时。
4）水计费，
5）HVAC（加热，通风和空调）
6）太阳能热水器
7）饮用水设备
8）自动灌溉和净水。
9）小型过滤系统
10）适合潮湿条件。
技术指标
尺寸：1/4至1-1 / 4英寸
材质：不锈钢（304,316），黄铜，PPO
电压：5,12,24,110至220V AC / DC
工作压力：1.0
最大压力：1.6mPa
执行机构旋转：90度
旋转方向：双作用
功率：最大5W
手动覆盖：可用
材质说明
执行器：耐热
ABS密封件：PTFE，硅橡胶球座，EPDM和NBR阀杆座，NBR O型圈
身体：黄铜或不锈钢
球：黄铜或不锈钢
阀杆：黄铜或不锈钢
产品尺寸 | NPT 1/2'NPT 3/4'NPT 1'NPT 1-1 / 4'可选1-1 / 4“可选tional |
| 最大工作压力 | 为1.6MPa |
| 循环介质 | 流体，空气 |
| 额定电压 | 5，12，24，110至220V AC / DC可选 |
| 工作电流 | ≤80ma80ma80MA |
| 开/关时间 | ≤15s; 15S;15S |
| 一生 | 70000次 |
| 阀体材料 | 黄铜镀镍黄铜304不锈钢306不锈钢可选 |
| 最大。转矩力 | 2Nm，4Nm，6 Nm可选 |
| 电缆长度 | 0.3m，0.3m，0.7m可选 |
| 液体温度 | 2摄氏度 - 90摄氏度 |
| 保护 | IP67 |
| 手动覆盖 | 是否可选 |
| 指示符 | 是否可选 |
| Model NO. | HS-DN25B2B |
| Connection Form | Thread |
| Nominal Pressure | ANSI CLASS 150-900 |
| Structure | Floating Ball Valve |
| Function | Blow-Down Valve |
| Application | Industrial Usage, Water Industrial Usage, Household Usage |
| Trademark | HS |
| Specification | ISO CE ROHS |
| HS Code | 8481804090 |
| Material | Stainless Steel |
| Driving Mode | Electric |
| Channel | Straight Through Type |
| Type | Tee Ball Valve |
| Temperature | High Temperature |
| Protect | IP67 |
| Transport Package | Standard Export Packing |
| Origin | Qingdao |
Product Description
Mini Electric Valve CWX For Small Equipment, water treatment, HVAC, automatic control (HS-25B2B)
Product Characteristics
Mini dimension suits for small equipment
Patented technology-floating seal structure
Long service life 70,000 to 100,000 circles
Low working current, only 60 to 80mA
IP67 and F type are available
Manual override function is safe and easy
Applications
1) Very suitable for water treatment industry.
2) Demanding quick opening and quick closing.
3) Replacing normal solenoid valve, particularly when solenoid valve can't work reliably.
4) Water billing,
5) HVAC (Heating, Ventilating and Air Conditioning)
6) Solar water heater
7) Drinking water equipment
8) Automatic irrigation and water purification.
9) Small filtration system
10) Suitable for moisture condition.
Technical indicators
Size: 1/4 to 1-1/4 inches
Material: stainless steel (304, 316), brass, PPO
Voltage: 5, 12, 24, 110 to 220V AC/DC
Working pressure: 1.0
Max pressure:1.6mPa
Actuator rotation: 90 degree
Rotation direction: double acting
Power: maximum 5W
Manual override: available
Material description
Actuator: heat-resistant
ABSSealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings
Body: brass or stainless steel
Ball: brass or stainless steel
Stem: brass or stainless steel
Mini Electric Valve CWX For Small Equipment, water treatment, HVAC, automatic control (HS-25B2B)
Product Characteristics
Mini dimension suits for small equipment
Patented technology-floating seal structure
Long service life 70,000 to 100,000 circles
Low working current, only 60 to 80mA
IP67 and F type are available
Manual override function is safe and easy
Applications
1) Very suitable for water treatment industry.
2) Demanding quick opening and quick closing.
3) Replacing normal solenoid valve, particularly when solenoid valve can't work reliably.
4) Water billing,
5) HVAC (Heating, Ventilating and Air Conditioning)
6) Solar water heater
7) Drinking water equipment
8) Automatic irrigation and water purification.
9) Small filtration system
10) Suitable for moisture condition.
Technical indicators
Size: 1/4 to 1-1/4 inches
Material: stainless steel (304, 316), brass, PPO
Voltage: 5, 12, 24, 110 to 220V AC/DC
Working pressure: 1.0
Max pressure:1.6mPa
Actuator rotation: 90 degree
Rotation direction: double acting
Power: maximum 5W
Manual override: available
Material description
Actuator: heat-resistant
ABSSealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings
Body: brass or stainless steel
Ball: brass or stainless steel
Stem: brass or stainless steel
Product size | NPT 1/2' NPT 3/4' NPT 1' NPT 1-1/4' Optional 1-1/4" Optionaltional |
| Maximum working pressure | 1.6MPa |
| Circulation medium | Fluid, air |
| Rated voltage | 5, 12, 24, 110 to 220V AC/DC Optional |
| Working current | ≤80MA80MA80MA |
| Open/close time | ≤15S;15S;15S |
| Life time | 70000 times |
| Valve Body material | Brass Nickel plated Brass 304 Stainless steel 306 Stainless steel Optional |
| Max. torque force | 2Nm,4Nm,6 Nm Optional |
| Cable length | 0.3m, 0.3m, 0.7m Optional |
| Liquid temperature | 2centigrade - 90centigrade |
| Protect | IP67 |
| Manual override | Yes No Optional |
| Indicator | Yes No Optional |
