产品描述
CE流量控制阀尺寸：1/2'，3/4'，1'，（可选） ，（可选的）
FLSM-220系列电机阀可用于中央空调系统和加热系统管道的开/关控制温度。控制阀由单向磁同步电机驱动。当阀门不工作时，阀​​门正常关闭。当它开始工作时，恒温器提供一个信号，使电机阀工作。阀门打开后，冷水或热水将进入风机盘管，为房间提供冷或热空气。当室温达到设定值时，恒温器将切断电动阀电流，复位弹簧将关闭阀门，防止水进入风机盘管。可以通过打开/关闭阀门来保持由恒温器设定的室温。
产品特点
具有结构紧凑，形状巧妙，执行可靠，使用寿命长。
2.传动系统采用新技术，由高扭矩的金属齿轮制成
3.多角度组装，方便不同的空间分配要求。
4.浮动密封结构，无泄漏，适用于重垢和长时间无动作的场合。
5.在电磁阀不能工作的条件下，可以更换电磁阀。
6.控制方式不同，可以将智能单元的远程信号和反馈信号识别
7.与指示器一起设计的电机和手动集成。ator.
8.防护等级高，可在潮湿条件下工作。
9.通过了CE认证和RoHS认证
技术指标
驱动电机：滞后同步电机
适用介质：冷水，热水
车身连接方式：12月中旬，管螺纹（也可根据用户要求定制）
电机电压和阀体接管件可根据客户要求定做
材质说明
阀体材质：锻造黄铜
阀杆材质：不锈钢（AISI302）
密封材料：丁腈橡胶（NBR）
驱动底盘：压铸铝合金
驱动盖：阻燃ABS工程塑料

Product Description

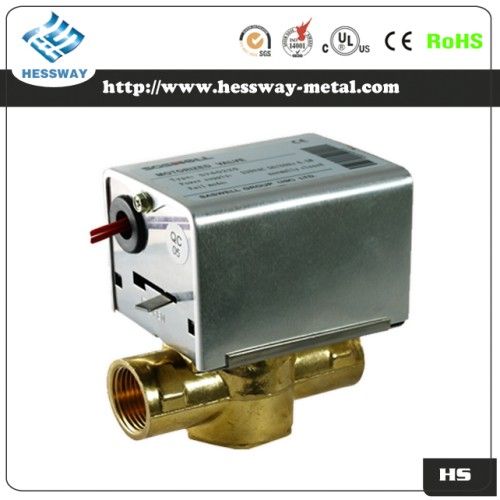

Electric Flow Control Valve with CE SIZE:1/2' , 3/4' , 1' ,(Optional)uot; ,(Optional)
FLSM-220 Series Motor Valve is available for central air-conditioner system and opening/closing of the heating system pipe to control the temperature. The control valve is driven by the one-way magnetic sync motor. The valve is normal close when it doesn't work. When it starts to work, the thermostat provides a signal to make the motor valve work. After the valve opens, the cold or hot water will enter the fan coil to provide the cold or hot air for the room. When the room temperature reach to the setting, the thermostat will cut off the motor valves current and the return spring will close the valve to prevent the water from entering the fan coil. The room temperature can be kept that was set by thermostat by opening/closing the valve.
Product Characteristics
1. Has compact size with smart shape, Perform reliably, has long life time.
2. The transmission system adopt new technology and made of metal gears with high output torque
3. Multi-angle assembly, convenience for different space allocation requirements.
4. Floating seal structure, no leak, suitable for heavy dirt and long time no action occasion.
5. Can replace the solenoid valve in the conditions that the solenoid valve can not be worked.
6. Varity of control methods, can both recognize the remote signal and feedback signal to the intelligent unit
7. Motor & manual integration designed with the indicator.ator.ator.
8. High protection class, can be worked in moist conditions.
9. Passed CE certification and RoHS certification
Technical indicators
Drive motor: hysteresis synchronous motor
Applicable medium: cold water, hot water
Body connection mode: in mid-december, pipe thread (can also be customized according to user demand)
Pieces of motor voltage and valve body to take over the form can be customized according to customer requirements
Material description
The valve body material: forged brass
Stem material: stainless steel (AISI302)
Sealing material: nitrile rubber (NBR)
Drive chassis: die casting aluminum alloy
Drive cover: flame retardant ABS engineering plastics
