Electric Flow Control Valve for Heating System IP67
加热系统电子流量控制阀IP67
| 型号。 | HS-Q67 |
| 连接形式 | 线 |
| 公称压力 | ansi课150-900 |
| 结构体 | 浮球阀 |
| 功能 | 吹气阀 |
| 应用 | 工业用水，工业用水，家庭用品 |
| 商标 | HS |
| 起源 | 青岛 |
| 材料 | 黄铜 |
| 驾驶模式 | 电动 |
| 渠道 | 三通型 |
| 类型 | 三通球阀 |
| 温度 | 高温 |
| 保护 | IP65，IP67（可选） |
| 规范 | iso ce rohs |
| HS编码 | 8481804090 |
产品描述
电动流量控制阀（HS-Q67）
产品特点
具有结构紧凑，形状巧妙，执行可靠，使用寿命长。
2.传动系统采用新技术，由高扭矩的金属齿轮制成
3.多角度组装，方便不同的空间分配要求。
4.浮动密封结构，无泄漏，适用于重垢和长时间无动作的场合。
5.在电磁阀不能工作的条件下，可以更换电磁阀。
6.控制方式不同，可以将智能单元的远程信号和反馈信号识别
7.与指示器一起设计的电机和手动集成。ator.
8.防护等级高，可在潮湿条件下工作。
9.通过了CE认证和RoHS认证
应用
水处理工业气阀
过程控制电动球阀
3.工业自动化安全阀
制药设备阀门
清洗设备关闭水管阀
6. IC卡水表，热能表，太阳能仪表。
7.中央空调风机盘管，消防水灭火器
8.农业灌溉设备
9.饮用水设备，热水器，洗衣机，AHW等
技术指标
尺寸：1至1-1 / 4英寸，全口金属球阀，1/2至1英寸塑料球阀
材质：黄铜，不锈钢，UPVC，CPVC
工作压力：1.0mPa
执行机构旋转：90度
旋转方向：双作用
功率：最大15W
手动覆盖：可用
材质说明
执行器：耐热ABS
密封：PTFE，硅橡胶球座，EPDM和NBR阀杆座，NBR O型圈
身体：黄铜或不锈钢
球：黄铜或不锈钢
阀杆：黄铜或不锈钢
电动流量控制阀（HS-Q67）
产品特点
具有结构紧凑，形状巧妙，执行可靠，使用寿命长。
2.传动系统采用新技术，由高扭矩的金属齿轮制成
3.多角度组装，方便不同的空间分配要求。
4.浮动密封结构，无泄漏，适用于重垢和长时间无动作的场合。
5.在电磁阀不能工作的条件下，可以更换电磁阀。
6.控制方式不同，可以将智能单元的远程信号和反馈信号识别
7.与指示器一起设计的电机和手动集成。ator.
8.防护等级高，可在潮湿条件下工作。
9.通过了CE认证和RoHS认证
应用
水处理工业气阀
过程控制电动球阀
3.工业自动化安全阀
制药设备阀门
清洗设备关闭水管阀
6. IC卡水表，热能表，太阳能仪表。
7.中央空调风机盘管，消防水灭火器
8.农业灌溉设备
9.饮用水设备，热水器，洗衣机，AHW等
技术指标
尺寸：1至1-1 / 4英寸，全口金属球阀，1/2至1英寸塑料球阀
材质：黄铜，不锈钢，UPVC，CPVC
工作压力：1.0mPa
执行机构旋转：90度
旋转方向：双作用
功率：最大15W
手动覆盖：可用
材质说明
执行器：耐热ABS
密封：PTFE，硅橡胶球座，EPDM和NBR阀杆座，NBR O型圈
身体：黄铜或不锈钢
球：黄铜或不锈钢
阀杆：黄铜或不锈钢
| Model NO. | HS-Q67 |
| Connection Form | Thread |
| Nominal Pressure | ANSI CLASS 150-900 |
| Structure | Floating Ball Valve |
| Function | Blow-Down Valve |
| Application | Industrial Usage, Water Industrial Usage, Household Usage |
| Trademark | HS |
| Origin | Qingdao |
| Material | Brass |
| Driving Mode | Electric |
| Channel | Tee Type |
| Type | Tee Ball Valve |
| Temperature | High Temperature |
| Protect | IP65, IP67(Optional) |
| Specification | ISO CE ROHS |
| HS Code | 8481804090 |
Product Description

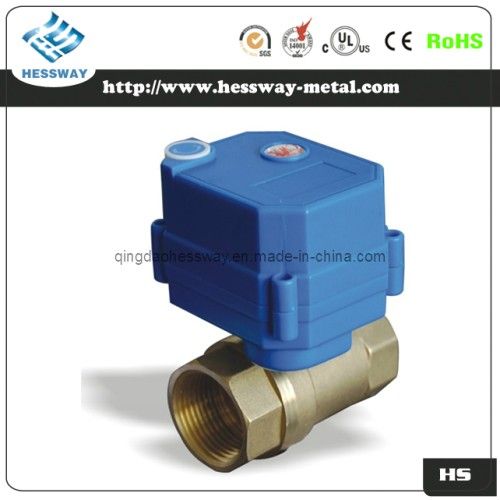

Electric Flow Control Valve with CE (HS-Q67)
Product Characteristics
1. Has compact size with smart shape, Perform reliably, has long life time.
2. The transmission system adopt new technology and made of metal gears with high output torque
3. Multi-angle assembly, convenience for different space allocation requirements.
4. Floating seal structure, no leak, suitable for heavy dirt and long time no action occasion.
5. Can replace the solenoid valve in the conditions that the solenoid valve can not be worked.
6. Varity of control methods, can both recognize the remote signal and feedback signal to the intelligent unit
7. Motor & manual integration designed with the indicator.ator.ator.
8. High protection class, can be worked in moist conditions.
9. Passed CE certification and RoHS certification
Applications
1. Water treatment industry gas valve
2. Process control motorized ball valve
3. Industrial automation safety valve
4. Pharmaceutical equipment valve
5. Cleaning equipment shut off water pipe valve
6. IC card water meters, heat energy meters, solar instrument.
7. The central air conditioning fan coil, fire sprinkler
8. Agriculture Irrigation equipment
9. Drinking water equipment, Water heater, washing machine, AHW etc.
Technical indicators
Size: 1 to 1-1/4 inches, full port metal ball valve, 1/2 to 1 inches plastic ball valve
Material: brass, stainless steel, UPVC, CPVC
Working pressure: 1.0 mPa
Actuator rotation: 90 degree
Rotation direction: double acting
Power: maximum 15W
Manual override: available
Material description
Actuator: heat-resistant ABS
Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings
Body: brass or stainless steel
Ball: brass or stainless steel
Stem: brass or stainless steel
Electric Flow Control Valve with CE (HS-Q67)
Product Characteristics
1. Has compact size with smart shape, Perform reliably, has long life time.
2. The transmission system adopt new technology and made of metal gears with high output torque
3. Multi-angle assembly, convenience for different space allocation requirements.
4. Floating seal structure, no leak, suitable for heavy dirt and long time no action occasion.
5. Can replace the solenoid valve in the conditions that the solenoid valve can not be worked.
6. Varity of control methods, can both recognize the remote signal and feedback signal to the intelligent unit
7. Motor & manual integration designed with the indicator.ator.ator.
8. High protection class, can be worked in moist conditions.
9. Passed CE certification and RoHS certification
Applications
1. Water treatment industry gas valve
2. Process control motorized ball valve
3. Industrial automation safety valve
4. Pharmaceutical equipment valve
5. Cleaning equipment shut off water pipe valve
6. IC card water meters, heat energy meters, solar instrument.
7. The central air conditioning fan coil, fire sprinkler
8. Agriculture Irrigation equipment
9. Drinking water equipment, Water heater, washing machine, AHW etc.
Technical indicators
Size: 1 to 1-1/4 inches, full port metal ball valve, 1/2 to 1 inches plastic ball valve
Material: brass, stainless steel, UPVC, CPVC
Working pressure: 1.0 mPa
Actuator rotation: 90 degree
Rotation direction: double acting
Power: maximum 15W
Manual override: available
Material description
Actuator: heat-resistant ABS
Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings
Body: brass or stainless steel
Ball: brass or stainless steel
Stem: brass or stainless steel
