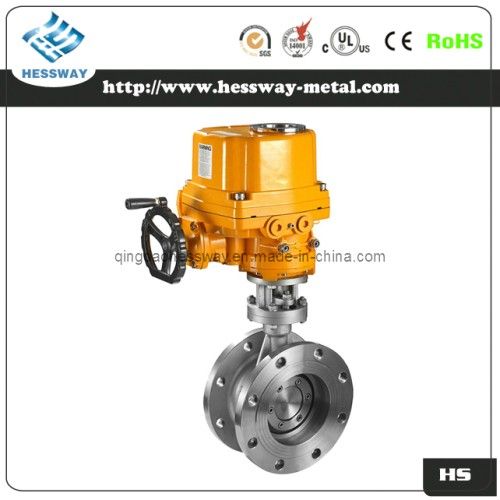

Dn50~Dn1200 Electric Lug Butterfly Valves
Dn50〜Dn1200电动蝶阀
| 型号。 | hsdbzrjd |
| 连接形式 | 轮缘 |
| 印章 | 增压加压密封 |
| 工作压力 | 中压（2.5mpa< Pn <6.4mpa);6.4mpa) |
| 密封面材料 | 软密封 |
| 应用 | 工业用水，工业用水，家庭用品 |
| 商标 | HS |
| 起源 | 青岛 |
| 驾驶模式 | 电动 |
| 结构体 | 双偏心密封 |
| 阀杆 | 正常 |
| 工作温度 | 中等温度（120°Cdeg;C |
| 阀体 | 钣金 |
| 直径 | DN50-DN1200（可选） |
| 规范 | iso ce rohs |
| HS编码 | 8481804090 |
产品规格
1）石油，化工，造纸，冶金，污水处理2）适用于氧气，天然气，水，油
3）法兰式球阀1 / 2-48寸电水阀
4）质优价廉
广泛应用于石油，化工，制药，轻工，自动化控制系统
设计标准
设计基础：gb / t12237，ansi b16.34，api 608
结构长度：GB / T12221，ASME B16.10，JIS B2002
端部法兰：gb / t9113，asme b16.5，jis b2212 / jis b2214
壁厚：ASME B16.34
防火测试：API 607 4th 1993
检测与试验：GB / T 13927，API598，JIS B2003
电动防爆球阀执行机构技术参数 | ||||||||||||||
| 执行器类型 | JO系列执行器参数 | 3610R系列执行器参数 | HQ系列执行器参数 | |||||||||||
| 电源电压 | 标准：220VAC可选：110V AC / 380 / 440V AC三相/ 24V / 110V / 220V AC | |||||||||||||
| 输出扭矩 | 50N @米〜2000N @米 | 50N @米〜1500N @米 | 50N @米〜3000N @米 | |||||||||||
| 运动范围 | 0〜90°0〜360°〜360°deg;~360° | 0〜90°°deg;° | 0〜90°/ 0°〜270°（可选），例如;（可选）eg;(Optional) | |||||||||||
| 输入信号 | 4〜20mA模拟信号 | 4〜20mA模拟信号 | 4〜20mA模拟信号 | |||||||||||
| 反馈信号 | 4〜20mA模拟信号 | 4〜20mA模拟信号 | 4〜20mA模拟信号 | |||||||||||
| 启动时间 | 10秒/ 15秒/ 30秒 | 10秒/ 15秒/ 30秒 | 18S〜112S | |||||||||||
| 保护装置 | 过热保护，过载保护 | 过热保护，过载保护 | 内置过热保护，过载保护 | |||||||||||
| 保护装置 | -30℃〜+ 60℃〜+ 60℃rdm;C~+60ºC | -30℃〜+ 60℃〜+ 60℃rdm;C~+60ºC | -20℃〜+ 70℃〜+ 70℃rdm;C~+70ºC | |||||||||||
| 手动操作 | 操作手柄 | 操作手柄 | 机械离合器机构，配合手轮操作 | |||||||||||
| 机械极限 | 电气和机械双重限制 | 电气和机械双重限制 | 两个外部调整螺栓 | |||||||||||
| 防护等级 | IP65 | IP55 | IP65 / IP67 / IP68（定制） | |||||||||||
| 防爆等级 | 无防爆 | exdiibt4 | exdii bt4 / exdii ct6 | |||||||||||
| 位置测量 | 电位器或比例控制单元 | 比例控制单元 | 电位计/比例控制单元 | |||||||||||
| 驱动电机 | 8瓦特/ E | 交流可逆电机 | 鼠笼式感应电机 | |||||||||||
| 壳材料 | 铝合金 | 钢/铝合金 | 钢，铝合金，铝青铜，聚碳酸酯 | |||||||||||
| 外部涂料 | 干粉和环氧聚酯，具有很强的腐蚀功能 | |||||||||||||
| Model NO. | HSDBZRJD |
| Connection Form | Flange |
| Seal Form | Supercharging Pressured Sealed |
| Work Pressure | Mid-Pressure (2.5mpa< Pn <6.4mpa);6.4mpa) |
| Material of Seal Surface | Soft Sealed |
| Application | Industrial Usage, Water Industrial Usage, Household Usage |
| Trademark | HS |
| Origin | Qingdao |
| Driving Mode | Electric |
| Structure | Double-Eccentric Sealing |
| Valve Stem | Normal |
| Working Temperature | Medium Temperature (120°Cdeg;C |
| Valve Body | Sheet Metal |
| Diameter | Dn50-Dn1200(Optional) |
| Specification | ISO CE ROHS |
| HS Code | 8481804090 |
Specifications
1) Gas petroleum, chemical, papermaking, metallurgy, sewage treatment2) Apply to oxygen,gas,water,oil
3) Flanged ball valve 1/2-48 inch electrical water valve
4)High quality and competitive price
Widely used in petroleum, chemical, pharmaceutical, light industry, automatic control system
Design Standard
Design basis: GB/T12237, ANSI B16.34, API 608
Structure length: GB/T12221, ASME B16.10, JIS B2002
End flange: GB/T9113, ASME B16.5, JIS B2212/JIS B2214
Wall thickness: ASME B16.34
Fire test: API 607 4th 1993
Detection and Test: GB/T 13927, API598, JIS B2003
Electric Explosion-proof Ball Valve Actuator technology parameters | ||||||||||||||
| Type of actuator | JO series actuator parameters | 3610R series actuator parameters | HQ series actuator parameters | |||||||||||
| Power voltage | Standard:220VAC Optional:110V AC /380/440V AC three-phase/24V/110V/220V AC | |||||||||||||
| Output Torque | 50N@M~2000N@M | 50N@M~1500N@M | 50N@M~3000N@M | |||||||||||
| Movement range | 0~90° 0~360°~360°deg;~360° | 0~90°°deg;° | 0~90°/0°~270°(Optional)eg;(Optional)eg;(Optional) | |||||||||||
| Input signal | 4~20mA Analog signal | 4~20mA Analog signal | 4~20mA Analog signal | |||||||||||
| Feedback signal | 4~20mA Analog signal | 4~20mA Analog signal | 4~20mA Analog signal | |||||||||||
| Actuation time | 10second /15second /30second | 10second /15second /30second | 18S~112S | |||||||||||
| Protective device | Overheating protection, overload protection | Overheating protection, overload protection | Built-in overheating protection, overload protection | |||||||||||
| Protective device | -30ºC~+60ºC~+60ºCrdm;C~+60ºC | -30ºC~+60ºC~+60ºCrdm;C~+60ºC | -20ºC~+70ºC~+70ºCrdm;C~+70ºC | |||||||||||
| Manual operation | Operating handle | Operating handle | Mechanical clutch mechanism, match the handwheel operation | |||||||||||
| Mechanical limit | Electrical and mechanical double limit | Electrical and mechanical double limit | Two external adjustment bolts | |||||||||||
| Protection grade | IP65 | IP55 | IP65/IP67/IP68(Customizable) | |||||||||||
| Explosion-proof grade | No explosion-proof | ExdIIBT4 | ExdII BT4/ExdII CT6 | |||||||||||
| Position measuring | potentiometer OR Proportional control unit | Proportional control unit | potentiometer/Proportional control unit | |||||||||||
| Drive motor | 8W/E | AC reversible motor | Squirrel cage induction motor | |||||||||||
| Shell material | Aluminium alloy | Steel/Aluminium alloy | Steel, aluminum alloy, aluminum bronze, polycarbonate | |||||||||||
| External coatings | Dry powder, and epoxy polyester, it has strong corrosion function | |||||||||||||
