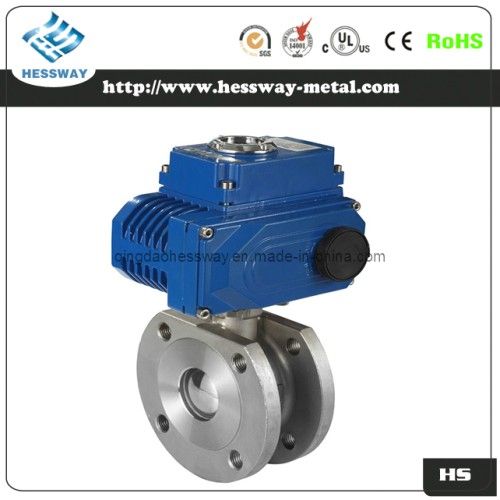

Explosion Proof Electric Ball Valve
防爆电动球阀
| 型号。 | hsq971f |
| 连接形式 | 轮缘 |
| 结构体 | 浮球阀 |
| 应用 | 工业用水，工业用水 |
| 商标 | HS |
| 起源 | 青岛 |
| 材料 | 不锈钢 |
| 渠道 | 直通型 |
| 类型 | 浮球阀 |
| 直径 | 1 / 2-8英寸（可选） |
| 规范 | iso ce rohs |
| HS编码 | 8481804090 |
产品规格
1）防火保护
2）适用于氧，气，水，油
3）法兰式球阀1 / 2-8寸电水阀
4）质优价廉
广泛应用于石油，化工，制药，轻工，自动化控制系统。
设计标准
设计基础：gb / t12237，ansi b16.34，api 608
结构长度：GB / T12221，ASME B16.10，JIS B2002
端部法兰：gb / t9113，asme b16.5，jis b2212 / jis b2214
壁厚：ASME B16.34
防火测试：API 607 4th 1993
检测与试验：GB / T 13927，API598，JIS B2003
电动防爆球阀执行机构技术参数 | ||||||||||||||
| 执行器类型 | 3610R系列执行器参数 | HQ系列执行器参数 | ||||||||||||
| 电源电压 | 标准：220VAC可选：110V AC / 380 / 440V AC三相/ 24V / 110V / 220V AC | |||||||||||||
| 输出扭矩 | 50N @米〜1500N @米 | 50N @米〜3000N @米 | ||||||||||||
| 运动范围 | 0〜90°°deg;° | 0〜90°/ 0°〜270°（可选），例如;（可选）eg;(Optional) | ||||||||||||
| 启动时间 | 10秒/ 15秒/ 30秒 | 18S〜112S | ||||||||||||
| 保护装置 | 过热保护，过载保护 | 内置过热保护，过载保护 | ||||||||||||
| 保护装置 | -20℃〜+ 70℃〜+ 70℃rdm;C~+70ºC | |||||||||||||
| 手动操作 | 操作手柄 | 机械离合器机构，配合手轮操作 | ||||||||||||
| 机械极限 | 电气和机械双重限制 | 两个外部调整螺栓 | ||||||||||||
| 防护等级 | IP65 / IP67 | IP65 / IP67 / IP68（定制） | ||||||||||||
| 防爆等级 | exdii bt4 | exdii bt4 / exdii ct6 | ||||||||||||
| 位置测量 | 比例控制单元 | 电位计/比例控制单元 | ||||||||||||
| 驱动电机 | 交流可逆电机 | 鼠笼式感应电机 | ||||||||||||
| 壳材料 | 铝合金 | 钢，铝合金，铝青铜，聚碳酸酯 | ||||||||||||
| 外部涂料 | 干粉和环氧聚酯，具有很强的腐蚀功能 | |||||||||||||
| Model NO. | HSQ971F |
| Connection Form | Flange |
| Structure | Floating Ball Valve |
| Application | Industrial Usage, Water Industrial Usage |
| Trademark | HS |
| Origin | Qingdao |
| Material | Stainless Steel |
| Channel | Straight Through Type |
| Type | Floating Ball Valve |
| Diameter | 1/2-8 Inch (Optional) |
| Specification | ISO CE ROHS |
| HS Code | 8481804090 |
Specifications
1) Fire protection proof
2) Apply to oxygen,gas,water,oil
3) Flanged ball valve 1/2-8 inch electrical water valve
4)High quality and competitive price
Widely used in petroleum, chemical, pharmaceutical, light industry, automatic control system.
Design Standard
Design basis: GB/T12237, ANSI B16.34, API 608
Structure length: GB/T12221, ASME B16.10, JIS B2002
End flange: GB/T9113, ASME B16.5, JIS B2212/JIS B2214
Wall thickness: ASME B16.34
Fire test: API 607 4th 1993
Detection and Test: GB/T 13927, API598, JIS B2003
Electric Explosion-proof Ball Valve Actuator technology parameters | ||||||||||||||
| Type of actuator | 3610R series actuator parameters | HQ series actuator parameters | ||||||||||||
| Power voltage | Standard:220VAC Optional:110V AC /380/440V AC three-phase/24V/110V/220V AC | |||||||||||||
| Output Torque | 50N@M~1500N@M | 50N@M~3000N@M | ||||||||||||
| Movement range | 0~90°°deg;° | 0~90°/0°~270°(Optional)eg;(Optional)eg;(Optional) | ||||||||||||
| Actuation time | 10second /15second /30second | 18S~112S | ||||||||||||
| Protective device | Overheating protection, overload protection | Built-in overheating protection, overload protection | ||||||||||||
| Protective device | -20ºC~+70ºC~+70ºCrdm;C~+70ºC | |||||||||||||
| Manual operation | Operating handle | Mechanical clutch mechanism, match the handwheel operation | ||||||||||||
| Mechanical limit | Electrical and mechanical double limit | Two external adjustment bolts | ||||||||||||
| Protection grade | IP65/IP67 | IP65/IP67/IP68(Customizable) | ||||||||||||
| Explosion-proof grade | ExdII BT4 | ExdII BT4/ExdII CT6 | ||||||||||||
| Position measuring | Proportional control unit | potentiometer/Proportional control unit | ||||||||||||
| Drive motor | AC reversible motor | Squirrel cage induction motor | ||||||||||||
| Shell material | Aluminium alloy | Steel, aluminum alloy, aluminum bronze, polycarbonate | ||||||||||||
| External coatings | Dry powder, and epoxy polyester, it has strong corrosion function | |||||||||||||
