服务
根据客户需求定制开发，提供ODM或OEM服务
适用范围
平衡阀用于消除空调系统中供水和后退背衬之间的不同压力。
该阀可以提高效率，降低噪音。
产品描述
电动动平衡阀，CE尺寸：1/2'，3/4'，1'，（可选）uot;（可选）
产品特点
1，内置接触开关，阀门开闭过程完成后电机不用电，使用寿命长，节能环保，特殊安全。
2，车身与驱动器分离，可快速拆卸。
3，驱动器可用于系统调试和维护使用手动杆，手动打开约70％。
4，B型驱动器内置继电器，线路控制，可匹配三速开关，实现阀联动，可5，配合各种温控开关。
6，正常驱动，温度控制器只有一个电动阀。
技术指标
电压：ac24v，110v，230v（220v）
功率：≤5va5va 5VA
推力：110N
行程：3mm
全职：3〜5min
连接尺寸：M30 X 1.5mm螺母
环境温度：0-65°Ceg; Ceg; C
地图传说

Services
According to customer needs to custom development, to provide ODM or OEM service
Scope of application
The balance valve is used to banlace the different pressure between water supplying and returing backing in the air conditioning system.
This valve can raise the efficiency, reduce the noise.
Product Description

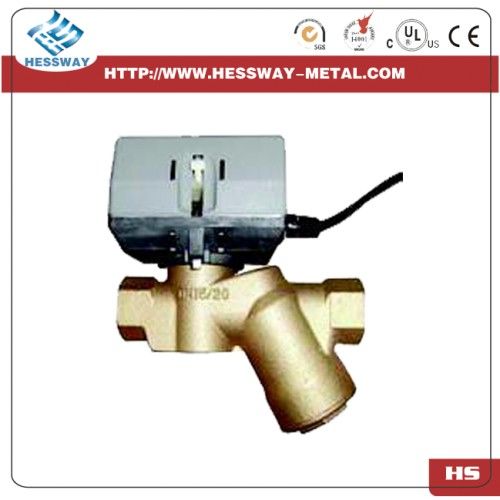

Electric dynamic balancing valve with CE SIZE: 1/2', 3/4', 1', (Optional)uot;, (Optional)
Product Characteristics
1, The built-in contact switch, valve opening and closing process after the completion of the motor is not electricity, and long service life, energy saving, and special security.
2, The body is separated from the drive, can quickly remove.
3, Drive is available for system debugging and maintenance use manual lever, the manual opening of about 70%.
4, Type B drive built-in relay, a line control, can match three-speed switch, realize the valve linkage, can 5, Match with all kinds of temperature control switch.
6, Normal drive, a temperature controller with only one electric valve.
Technical indicators
Voltage: AC24V, 110V, 230V (220V)
Power: ≤ 5VA 5VA 5VA
Thrust: 110N
Travel: 3mm
Full time: 3 ~ 5min
Connection size: M30 X 1.5mm nut
Ambient temperature: 0-65° Ceg; Ceg; C
Map Legend
