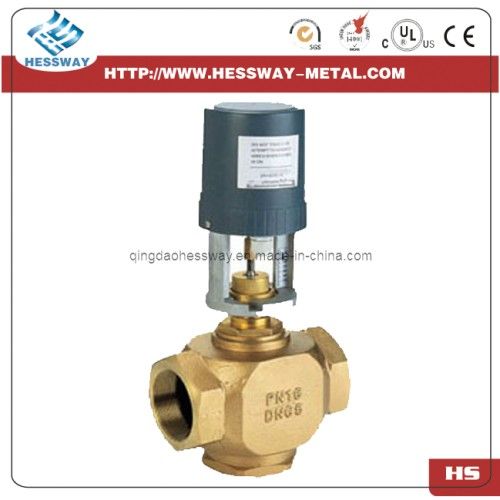

Dn32-Dn125 Electric Modulating Valve
Dn32-Dn125电动调节阀
| 型号。 | HS-flvb7000 / va3012（dn32-125） |
| 连接形式 | 线 |
| 材料 | 不锈钢 |
| 阀门结构 | 直接作用活塞结构的分步结构 |
| 用法 | 清空 |
| 应用 | 工业用水，工业用水，家庭用品 |
| 商标 | HS |
| 起源 | 青岛 |
| 执行器 | 电动 |
| 类型 | 直接代理 |
| 压力 | 高温 |
| 电源 | 交流电磁阀 |
| 标准 | ANSI |
| 直径 | Dn32-Dn125，（可选） |
| 规范 | iso ce rohs |
| HS编码 | 8481804090 |
产品规格
HS-FLVG7000 / FLVA3102系列空调，制冷，供暖等楼宇自动化控制系统的控制阀，也用于化工，石油，冶金，电力，轻工业生产过程自动化控制系统。在输入端接收控制信号时，温度调节，压力调节，湿度控制可以完成，可以控制流量和水位等系统参数。主要用于运输冷，热水，蒸汽和乙二醇溶液等介质。
基本功能
1.通过切断电源或外部输入信号来控制开/关/中断。
小而轻，紧。
3.操作方便
电源可以手动切断。
5.过热保护电机可以避免损坏。
适用范围
1，暖通空调
2，低温加热系统
3，流量，压力，温度和湿度控制系统
4，可变流量体系，通过AHU或加热换热器的装载来控制水流
HS-FLVG7000 / FLVA3102系列空调，制冷，供暖等楼宇自动化控制系统的控制阀，也用于化工，石油，冶金，电力，轻工业生产过程自动化控制系统。在输入端接收控制信号时，温度调节，压力调节，湿度控制可以完成，可以控制流量和水位等系统参数。主要用于运输冷，热水，蒸汽和乙二醇溶液等介质。
基本功能
1.通过切断电源或外部输入信号来控制开/关/中断。
小而轻，紧。
3.操作方便
电源可以手动切断。
5.过热保护电机可以避免损坏。
适用范围
1，暖通空调
2，低温加热系统
3，流量，压力，温度和湿度控制系统
4，可变流量体系，通过AHU或加热换热器的装载来控制水流
| 模型 | 阀门类型 | 公称直径 | 公称压力 | 工作介质 | 电压 | 核心和座位 | 干 | 阀体 | 弹簧 |
| flvb7000 | 2种方法 | DN32-DN125 | 为1.6MPa | 流体温度 -10〜150°c°cg;C°C | AC24V（根据您的订单） | 黄铜 | 1 Crt 8Ni9 | 铸铁 | ： 不锈钢 |
| fl va3102 | 2种方法 |
| Model NO. | HS-FLVB7000/VA3012(DN32-125) |
| Connection Form | Thread |
| Material | Stainless Steel |
| Valve Structure | Step by Step Structure of Direct-Acting Piston Structure |
| Usage | Emptying |
| Application | Industrial Usage, Water Industrial Usage, Household Usage |
| Trademark | HS |
| Origin | Qingdao |
| Actuator | Electric |
| Type | Direct Acting |
| Pressure | High Temperature |
| Power Supply | AC Solenoid Valve |
| Standard | ANSI |
| Diameter | Dn32-Dn125 , (Optional) |
| Specification | ISO CE ROHS |
| HS Code | 8481804090 |
Specifications
HS-FLVG7000/FLVA3102Series control valve for air conditioning, refrigeration, heating and other building automation and control system,Also used in chemical, petroleum, metallurgy, electric power, light industry production process automatic control system.Under receiving a control signal at input, temperature adjustment,pressure regulation, the humidity control can be completed,it can control the system parameters such as flow and level.Mainly used for transporting cold, hot water and steam and ethylene glycol solution and other media.
Basic Features
1. Control the open/close/middle through cutting off power supply or input signal outside.
2. Small, light and tight.
3. Easy operation
4. Power could be cut off manually.
5. Overheating protection motor could avoid damage.
Scope of application
1, HVAC field
2, Low-temperature Heating System
3, Control System for Flow, Pressure, temperature and Humidity
4, Variable Flow Volume System, to Control water Flow thru loading of AHU or Heating Exchanger
HS-FLVG7000/FLVA3102Series control valve for air conditioning, refrigeration, heating and other building automation and control system,Also used in chemical, petroleum, metallurgy, electric power, light industry production process automatic control system.Under receiving a control signal at input, temperature adjustment,pressure regulation, the humidity control can be completed,it can control the system parameters such as flow and level.Mainly used for transporting cold, hot water and steam and ethylene glycol solution and other media.
Basic Features
1. Control the open/close/middle through cutting off power supply or input signal outside.
2. Small, light and tight.
3. Easy operation
4. Power could be cut off manually.
5. Overheating protection motor could avoid damage.
Scope of application
1, HVAC field
2, Low-temperature Heating System
3, Control System for Flow, Pressure, temperature and Humidity
4, Variable Flow Volume System, to Control water Flow thru loading of AHU or Heating Exchanger
| Model | Valve Type | Nominal diameter | Nominal pressure | Working medium | Voltage | Core and Seat | Stem | Valve Body | Spring |
| FLVB7000 | 2-way | DN32-DN125 | 1.6MPa | Fluid temperature -10~ 150 °C°Cg;C°C | AC24V(As per your order) | Brass | 1 Crt 8Ni9 | Cast Iron | : Stainless Steel |
| FL VA3102 | 2-way |
