on/off Control Valve
开/关控制阀
| 连接形式 | 双夹式 |
| 印章 | 力密封 |
| 工作温度 | 中等温度（120°Cdeg;C |
| 应用 | 工业用水，工业用水，家庭用品 |
| 商标 | HS |
| 起源 | 青岛 |
| 结构体 | 双偏心密封 |
| 工作压力 | 低压（Pn<1.6mpa)6mpa) |
| 密封面材料 | 金属硬密封 |
| 直径 | 1/2'，3/4'，1'，（可选）uot; ， （可选的） |
| 规范 | iso ce rohs |
| HS编码 | 8481804090 |
产品描述
电动流量控制阀，尺寸：1/2'，3/4'，1'，（可选）uot;（可选）
FLVA-7010系列电风扇盘管风机盘管水阀适用于开关控制，滞后同步电机驱动使用力，电源打开阀门，断电后弹簧复位，并配有手动开阀操作机构是中央空调最受欢迎的电动阀系统采购之一
身体连接方式：12月中旬，管螺纹（也可根据用户要求定制）
电机电压和阀体接管件可根据客户要求定做
产品特点
具有结构紧凑，形状巧妙，执行可靠，使用寿命长。
2.传动系统采用新技术，由高扭矩的金属齿轮制成
3.多角度组装，方便不同的空间分配要求。
4.浮动密封结构，无泄漏，适用于重垢和长时间无动作的场合。
5.在电磁阀不能工作的条件下，可以更换电磁阀。
6.控制方式不同，可以将智能单元的远程信号和反馈信号识别
7.与指示器一起设计的电机和手动集成。ator.
8.防护等级高，可在潮湿条件下工作。
9.通过了CE认证和RoHS认证
适用的应用
用于控制加热，冷却或空调应用中热水，冷冻水的流量，以间接控制室温。
材质说明
阀体材质：锻造黄铜
阀杆材质：不锈钢（AISI302）
密封材料：丁腈橡胶（NBR）
驱动底盘：压铸铝合金
驱动盖：阻燃ABS工程塑料
电动流量控制阀，尺寸：1/2'，3/4'，1'，（可选）uot;（可选）
FLVA-7010系列电风扇盘管风机盘管水阀适用于开关控制，滞后同步电机驱动使用力，电源打开阀门，断电后弹簧复位，并配有手动开阀操作机构是中央空调最受欢迎的电动阀系统采购之一
身体连接方式：12月中旬，管螺纹（也可根据用户要求定制）
电机电压和阀体接管件可根据客户要求定做
产品特点
具有结构紧凑，形状巧妙，执行可靠，使用寿命长。
2.传动系统采用新技术，由高扭矩的金属齿轮制成
3.多角度组装，方便不同的空间分配要求。
4.浮动密封结构，无泄漏，适用于重垢和长时间无动作的场合。
5.在电磁阀不能工作的条件下，可以更换电磁阀。
6.控制方式不同，可以将智能单元的远程信号和反馈信号识别
7.与指示器一起设计的电机和手动集成。ator.
8.防护等级高，可在潮湿条件下工作。
9.通过了CE认证和RoHS认证
适用的应用
用于控制加热，冷却或空调应用中热水，冷冻水的流量，以间接控制室温。
材质说明
阀体材质：锻造黄铜
阀杆材质：不锈钢（AISI302）
密封材料：丁腈橡胶（NBR）
驱动底盘：压铸铝合金
驱动盖：阻燃ABS工程塑料
| Connection Form | Double-Clip Type |
| Seal Form | Force Sealed |
| Working Temperature | Medium Temperature (120°Cdeg;C |
| Application | Industrial Usage, Water Industrial Usage, Household Usage |
| Trademark | HS |
| Origin | Qingdao |
| Structure | Double-Eccentric Sealing |
| Work Pressure | Low Pressure (Pn<1.6mpa)6mpa) |
| Material of Seal Surface | Metal Hard Sealed |
| Diameter | 1/2' , 3/4' , 1' , (Optional)uot; , (Optional) |
| Specification | ISO CE ROHS |
| HS Code | 8481804090 |
Product Description

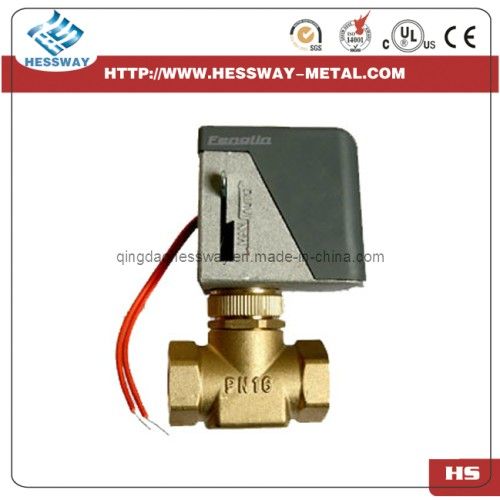

Electric Flow Control Valve with CE SIZE: 1/2', 3/4', 1', (Optional)uot;, (Optional)
FLVA-7010 Series electric fan coil fan coil water valves are suitable for on-off control, hysteresis synchronous motor drive for the use of force, power to open the valve, spring reset after a power failure, and is equipped with a manual opening valve operating mechanism is central air conditioning one of the most popular electric valve system procurement
Body connection mode: In mid-december, pipe thread (can also be customized according to user demand)
Pieces of motor voltage and valve body to take over the form can be customized according to customer requirements
Product Characteristics
1. Has compact size with smart shape, Perform reliably, has long life time.
2. The transmission system adopt new technology and made of metal gears with high output torque
3. Multi-angle assembly, convenience for different space allocation requirements.
4. Floating seal structure, no leak, suitable for heavy dirt and long time no action occasion.
5. Can replace the solenoid valve in the conditions that the solenoid valve can not be worked.
6. Varity of control methods, can both recognize the remote signal and feedback signal to the intelligent unit
7. Motor & manual integration designed with the indicator.ator.ator.
8. High protection class, can be worked in moist conditions.
9. Passed CE certification and RoHS certification
Suitable Applications
Used to controll the flow of hot water, freezed water in heating, cooling or air-conditioning applications, so as to control room temperature indirectly.
Material description
The valve body material: Forged brass
Stem material: Stainless steel (AISI302)
Sealing material: Nitrile rubber (NBR)
Drive chassis: Die casting aluminum alloy
Drive cover: Flame retardant ABS engineering plastics
Electric Flow Control Valve with CE SIZE: 1/2', 3/4', 1', (Optional)uot;, (Optional)
FLVA-7010 Series electric fan coil fan coil water valves are suitable for on-off control, hysteresis synchronous motor drive for the use of force, power to open the valve, spring reset after a power failure, and is equipped with a manual opening valve operating mechanism is central air conditioning one of the most popular electric valve system procurement
Body connection mode: In mid-december, pipe thread (can also be customized according to user demand)
Pieces of motor voltage and valve body to take over the form can be customized according to customer requirements
Product Characteristics
1. Has compact size with smart shape, Perform reliably, has long life time.
2. The transmission system adopt new technology and made of metal gears with high output torque
3. Multi-angle assembly, convenience for different space allocation requirements.
4. Floating seal structure, no leak, suitable for heavy dirt and long time no action occasion.
5. Can replace the solenoid valve in the conditions that the solenoid valve can not be worked.
6. Varity of control methods, can both recognize the remote signal and feedback signal to the intelligent unit
7. Motor & manual integration designed with the indicator.ator.ator.
8. High protection class, can be worked in moist conditions.
9. Passed CE certification and RoHS certification
Suitable Applications
Used to controll the flow of hot water, freezed water in heating, cooling or air-conditioning applications, so as to control room temperature indirectly.
Material description
The valve body material: Forged brass
Stem material: Stainless steel (AISI302)
Sealing material: Nitrile rubber (NBR)
Drive chassis: Die casting aluminum alloy
Drive cover: Flame retardant ABS engineering plastics
