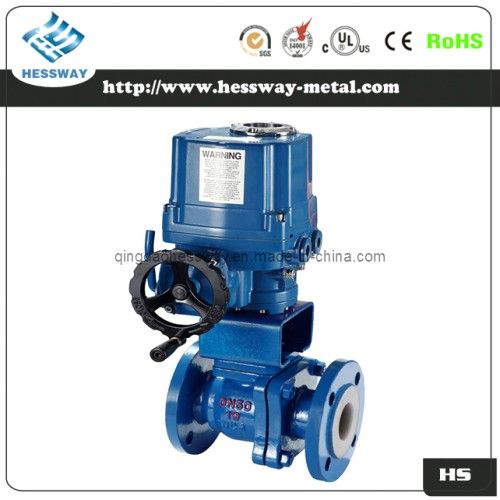

1/2inch-8 Inch Electric Explosion-Proof Ball Valve
1/2英寸-8英寸电动防爆球阀
| 型号。 | hsq941f46 |
| 连接形式 | 轮缘 |
| 公称压力 | pn1.0-32.0mpa |
| 结构体 | 浮球阀 |
| 温度 | 高温 |
| 直径 | DN15-DN300（可选） |
| 规范 | iso ce rohs |
| HS编码 | 8481804090 |
| 材料 | 不锈钢 |
| 驾驶模式 | 电动 |
| 渠道 | 直通型 |
| 类型 | 浮球阀 |
| 应用 | 工业用水，工业用水 |
| 商标 | HS |
| 起源 | 青岛 |
产品规格
1）防火保护
2）适用于氧，气，水，油
3）法兰式球阀1 / 2-8寸电水阀
4）质优价廉
产品概述
POQ系列电动执行器用于0〜270°旋转阀等相似产品;如蝶阀，球阀，阻尼阀等。挡板阀，旋塞阀和快门阀等，其380v / 220v / 110VAC电源为驱动电源，具有4-20mA电流信号或0-10VDC电压信号作为控制信号，可使阀门移动到设计位置，实现自动化控制，最大输出扭矩可达4000N * M（本系列产品获得CE和防爆认证，产品质量有保证）; T恤）;tee);
产品特点
小流阻。球阀在所有阀门中具有较小的流动阻力。流量阻力非常小，即使阀孔减小。
2.轴轴承可以减少阀轴的摩擦力矩，使轴的运行平衡。
3.采用PTFE作为密封环，座椅具有良好的密封性能。随着压力的增加，密封性能也会更好。
4.阀杆只能通过旋转运动工作，包装不易破坏。所以蒸汽具有可靠的密封性能
应用
可广泛应用于石油，化工，水处理，船舶，造纸，厂房，采暖，楼宇自动化，轻工等行业;等等
广泛应用于石油，化工，制药，轻工，自动化控制系统
设计标准
设计基础：gb / t12237，ansi b16.34，api 608
结构长度：GB / T12221，ASME B16.10，JIS B2002
端部法兰：gb / t9113，asme b16.5，jis b2212 / jis b2214
壁厚：ASME B16.34
防火测试：API 607 4th 1993
检测与试验：GB / T 13927，API598，JIS B2003
1）防火保护
2）适用于氧，气，水，油
3）法兰式球阀1 / 2-8寸电水阀
4）质优价廉
产品概述
POQ系列电动执行器用于0〜270°旋转阀等相似产品;如蝶阀，球阀，阻尼阀等。挡板阀，旋塞阀和快门阀等，其380v / 220v / 110VAC电源为驱动电源，具有4-20mA电流信号或0-10VDC电压信号作为控制信号，可使阀门移动到设计位置，实现自动化控制，最大输出扭矩可达4000N * M（本系列产品获得CE和防爆认证，产品质量有保证）; T恤）;tee);
产品特点
小流阻。球阀在所有阀门中具有较小的流动阻力。流量阻力非常小，即使阀孔减小。
2.轴轴承可以减少阀轴的摩擦力矩，使轴的运行平衡。
3.采用PTFE作为密封环，座椅具有良好的密封性能。随着压力的增加，密封性能也会更好。
4.阀杆只能通过旋转运动工作，包装不易破坏。所以蒸汽具有可靠的密封性能
应用
可广泛应用于石油，化工，水处理，船舶，造纸，厂房，采暖，楼宇自动化，轻工等行业;等等
广泛应用于石油，化工，制药，轻工，自动化控制系统
设计标准
设计基础：gb / t12237，ansi b16.34，api 608
结构长度：GB / T12221，ASME B16.10，JIS B2002
端部法兰：gb / t9113，asme b16.5，jis b2212 / jis b2214
壁厚：ASME B16.34
防火测试：API 607 4th 1993
检测与试验：GB / T 13927，API598，JIS B2003
| Model NO. | HSQ941F46 |
| Connection Form | Flange |
| Nominal Pressure | PN1.0-32.0MPa |
| Structure | Floating Ball Valve |
| Temperature | High Temperature |
| Diameter | Dn15-Dn300(Optional) |
| Specification | ISO CE ROHS |
| HS Code | 8481804090 |
| Material | Stainless Steel |
| Driving Mode | Electric |
| Channel | Straight Through Type |
| Type | Floating Ball Valve |
| Application | Industrial Usage, Water Industrial Usage |
| Trademark | HS |
| Origin | Qingdao |
Specifications
1) Fire protection proof
2) Apply to oxygen,gas,water,oil
3) Flanged ball valve 1/2-8 inch electrical water valve
4)High quality and competitive price
Product overview
POQ series electric actuator is used to 0~270°rotary valves and others similarity product; such as butterfly valves, ball valves, damper valves. baffle valves, plug valves and shutter valves, etc. it 380v/220v/110VAC power for the drive power supply, with 4-20mA current signal, or 0-10VDC voltage signal as a control signal, can be make the valve to move to the designed position, realize the automation control, maximum output torque up to 4000N*M (This series of product has obtained CE and explosion-proof certification, product quality has the guarantee);tee);tee);
Product Features
1. Small flow resistance. The ball valve has smaller flow resistance among all valves. The flow resistance is very small, even if the valve is reduced bore.
2. Thrust shaft bearing can reduce the fricative torque of valve shaft in order to make the shaft operation balance.
3. The seat has a good sealing performance with adopting PTFE as the sealing ring. And the sealing performance can be better with the increase of pressure.
4. The stem can only work by rotary motion, and the packing is not easy to destroy. So the steam has a reliable sealing performance
Applications
Can be widely used in petroleum, chemical, water treatment, vessel, papermaking, plant, heating, building automation, light industry and other industries; etc.
Widely used in petroleum, chemical, pharmaceutical, light industry, automatic control system
Design Standard
Design basis: GB/T12237, ANSI B16.34, API 608
Structure length: GB/T12221, ASME B16.10, JIS B2002
End flange: GB/T9113, ASME B16.5, JIS B2212/JIS B2214
Wall thickness: ASME B16.34
Fire test: API 607 4th 1993
Detection and Test: GB/T 13927, API598, JIS B2003
1) Fire protection proof
2) Apply to oxygen,gas,water,oil
3) Flanged ball valve 1/2-8 inch electrical water valve
4)High quality and competitive price
Product overview
POQ series electric actuator is used to 0~270°rotary valves and others similarity product; such as butterfly valves, ball valves, damper valves. baffle valves, plug valves and shutter valves, etc. it 380v/220v/110VAC power for the drive power supply, with 4-20mA current signal, or 0-10VDC voltage signal as a control signal, can be make the valve to move to the designed position, realize the automation control, maximum output torque up to 4000N*M (This series of product has obtained CE and explosion-proof certification, product quality has the guarantee);tee);tee);
Product Features
1. Small flow resistance. The ball valve has smaller flow resistance among all valves. The flow resistance is very small, even if the valve is reduced bore.
2. Thrust shaft bearing can reduce the fricative torque of valve shaft in order to make the shaft operation balance.
3. The seat has a good sealing performance with adopting PTFE as the sealing ring. And the sealing performance can be better with the increase of pressure.
4. The stem can only work by rotary motion, and the packing is not easy to destroy. So the steam has a reliable sealing performance
Applications
Can be widely used in petroleum, chemical, water treatment, vessel, papermaking, plant, heating, building automation, light industry and other industries; etc.
Widely used in petroleum, chemical, pharmaceutical, light industry, automatic control system
Design Standard
Design basis: GB/T12237, ANSI B16.34, API 608
Structure length: GB/T12221, ASME B16.10, JIS B2002
End flange: GB/T9113, ASME B16.5, JIS B2212/JIS B2214
Wall thickness: ASME B16.34
Fire test: API 607 4th 1993
Detection and Test: GB/T 13927, API598, JIS B2003
