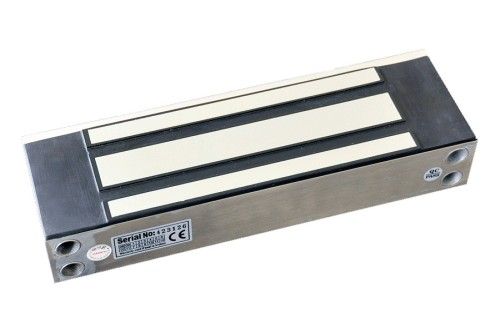

500kg/1200lbs Waterproof Electronic Magnetic Lock with LED (EL-500W)
500kg / 1200lbs带LED的防水电子磁锁（EL-500W）
议价
加入意向| 型号。 | EL-500W |
| 持有力量 | 500公斤（1200lbs） |
| 当前抽奖 | 12V / 420mA或24V / 210mA |
| 完成壳牌 | 完成壳牌 |
| 规范 | CE |
| 用法 | 商业，家庭，工业 |
| 电压 | 12或24vdc |
| 适合 | 木门，玻璃门，金属门，防火D |
| 商标 | Techcrepower |
| 起源 | 中国 |
介绍：
EL-500W单门电锁具有防水功能，外壳采用不锈钢，100％防水处理。所有配件都密封在锁芯内。专门用于金属门，重门等。
产品规格：
产品参数 | 参数说明 |
| 尺寸 | 220Lx63Wx36H（毫米） |
| 220Lx63Wx36H（毫米） | 185Lx60Wx13H（毫米） |
| 持有力量 | 500公斤（1200Lbs） |
| 电压 | 12或24vdc |
| 当前抽奖 | 12V / 420mA或24V / 210mA |
| 适合 | 木门，玻璃门，金属门，防火门 |
| 信号输出 | 干触点，触点电流的最大额定值3A |
| 表面温度 | ≤+ 20°C20℃下eg;C20°C |
| 工作温度 | -10〜+ 55℃（14-131f）131F）131F) |
| 合适的湿度 | 0〜95％（不凝结） |
| 完成壳牌 | 完成壳牌 |
| 磁性表面处理 | 锌 |
| 完成电枢 | 锌 |
| 锌 | 锌 |
优点：
共线负载测试500Kg，1200磅。
双电压12或24 VDC（可选）。
完成后，标准电压为12VDC。
MOV提供反向电流保护。
适用于木门，玻璃门，金属门，防火门。
壳牌完成不锈钢，更坚固耐用。
100％防水，所有零件加压树脂。
可以安装特殊防水，室内和室外。
设计无机械故障，取决于强大的磁力。
增加持力，双重绝缘住房。
欧盟CE证书，中国公安局MA证书。
| Model NO. | EL-500W |
| Holding Force | 500kg(1200lbs) |
| Current Draw | 12V/420mA or 24V/210mA |
| Finishes for Shell | Finishes for Shell |
| Specification | CE |
| Usage | Commercial, Household, Industrial |
| Voltage | 12 or 24VDC |
| Suitable for | Wooden Door , Glass Door ,Metal Door , Fireproof D |
| Trademark | Techcrepower |
| Origin | China |
Introduction:
EL-500W single door electric lock with waterproof function, the case is stainless steel and it is 100% waterproof treatment.All the accessories are sealed inside the lock cylinder. Specially for metal door, heavy door and so on.
Specifications:
Product Parameter | Parameter Description |
| Size | 220Lx63Wx36H(mm) |
| 220Lx63Wx36H(mm) | 185Lx60Wx13H(mm) |
| Holding Force | 500kg(1200Lbs) |
| Voltage | 12 or 24VDC |
| Current Draw | 12V/420mA or 24V/210mA |
| Suitable for | Wooden door , Glass door ,Metal door , Fireproof door |
| Signal Output | Dry Contact,Max Rating of Contact Current 3A |
| Surface Temp | ≤+20°C20°Ceg;C20°C |
| Operating Temp | -10~+55°C(14-131F)131F)131F) |
| Suitable Humidity | 0~95%(non-condensing) |
| Finishes for Shell | Finishes for Shell |
| Finishes for Magnetic | Zinc |
| Finishes for Armature | Zinc |
| Zinc | Zinc |
Advantage:
Collinear Load Test 500Kg,1200pounds.
Dual Voltage 12 or 24 VDC (optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.
The Shell Finished with Stainless Steel, more Strong and Durable.
100 percent waterproof,All the Parts Pressurize in resin.
Special Waterproof, Indoor and Outdoor can be installed.
Design without Mechanical Failure, Depending on the powerful Magnetic force.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.
